TSXP574823M

2-year Warranty

Same Day Shipping

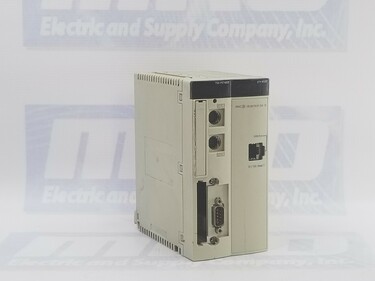

Schneider Electric TSXP574823M

MODICON PREMIUM DOUBLE-FORMAT PL7 PROCESSOR - TRANSPARENT READY - 1440 MA
5/5
1 rating

Select Condition

Refurbished

Request Quote

New

1 in stock

$4,657.00

Request a formal quote

  • Ships Today
  • 2 Year Warranty
  • Free Shipping
Part NumberTSXP574823M
ManufacturerSchneider Electric
TypeCPUs
Model #TSX-P57-4823M
Warranty2 Year
RangeModicon Premium
CategoryTSX57 Premium
MemoryInternal RAM (with PCMCIA card) 176 Kwords data Internal RAM (without PCMCIA card) 96 Kwords program and data PCMCIA card 2048 Kwords additional data storage PCMCIA card 992 Kwords program
DescriptionProcessor module
Channels64
ProcessorPL7
Power consumption1440 mA
Format Double format
ConceptTransparent ready
Software designationPL7 Junior/Pro
Racks16 4/6/8 slots 8 12 slots
Slots128, 96, 64
App-specific channels64
Process control channel20 up to 60 simple loops
Discrete I/O2040 I/O
Analogue I/O256 I/O
Communication2 fieldbus modules (1 if CANopen used) 8 AS-Interface bus modules 1 CANopen 4 network module
MarkingCE
Current consumption1440 mA 5 V DC
Ambient temp32…140 °F (0…60 °C)
ProtectionIP20
Standards92/31/EEC CSA C22.2 No 142 CSA C22.2 No 213 Class I Division 2 Group B 93/68/EEC UL 508 CSA C22.2 No 213 Class I Division 2 Group D 89/336/EEC CSA C22.2 No 213 Class I Division 2 Group C IEC 61131-2 CSA C22.2 No 213 Class I Division 2 Group A 73/23/EEC

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed TSXP574823M to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this TSXP574823M we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty TSXP574823M, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped tomorrow?

  • Order within the next 17 hours and 1 minute.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty TSXP574823M for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric TSXP574823M Overview

Schneider Electric TSXP574823M

The Schneider Electric TSXP574823M, a formidable player in the realm of industrial automation, is a Double-Format PL7 Processor designed for transparent readiness and boasting a power consumption of 1440 mA. As part of the renowned Modicon Premium series, this processor stands as a testament to Schneider Electric's commitment to delivering cutting-edge solutions for industrial control and automation.

Double-Format PL7 Processor: Unraveling the Core

At the heart of the TSXP574823M lies its classification as a Double-Format PL7 Processor. This signifies a robust processing capability, allowing it to handle complex control algorithms and intricate automation tasks. The double-format architecture enhances its processing efficiency, making it a go-to choice for high computational power applications.

Transparent Ready: Seamless Integration into Networks

One of the standout features of the TSXP574823M is its Transparent Ready capability. This denotes the processor's readiness for seamless integration into industrial networks. Transparent communication is pivotal in modern industrial setups, allowing devices to communicate effortlessly and share data in real time. The processor's Transparent Ready feature positions it as a versatile and adaptive solution for interconnected automation systems.

Power Consumption: 1440 mA Efficiency

The TSXP574823M is engineered with a power consumption of 1440 mA. This specification is crucial for system integrators and engineers as it provides insights into the energy requirements of the processor. Schneider Electric's focus on efficiency is evident in this power consumption rating, allowing for optimized energy usage in industrial settings.

Modicon Premium Series: A Legacy of Excellence

As part of the Modicon Premium series, the TSXP574823M inherits a legacy of excellence in industrial automation. Modicon, a brand under Schneider Electric, has been synonymous with reliability and innovation in control systems for decades. The Premium series, in particular, is designed for high-performance applications, making it a preferred choice in industries where precision and reliability are non-negotiable.

Versatility in Application

The TSXP574823M's robust features make it versatile across a spectrum of applications. From manufacturing processes to critical infrastructure control, its double-format PL7 processing power, transparent readiness, and efficient power consumption position it as a versatile solution for diverse industrial automation requirements.

Compact Design for Space Optimization

Designed with efficiency in mind, the TSXP574823M features a compact form factor. This design ensures optimal use of space within control cabinets and automation systems. In industrial environments where space constraints are common, this compact design is a valuable attribute, allowing for flexible installation options.

Reliability in Challenging Environments

Built with industrial durability in mind, the TSXP574823M is constructed to withstand the rigors of harsh industrial environments. From temperature variations to vibrations, its robust build ensures uninterrupted operation in challenging conditions, contributing to the longevity and reliability of the automation system it powers.

FAQ: Schneider Electric ATV212HU40N4 AC Drives

What type of product is the Schneider Electric ATV212HU40N4?

The ATV212HU40N4 is an AC Drive for motor control applications in HVAC (Heating, Ventilation, and Air Conditioning) systems.

What is the range and category of motors compatible with the ATV212HU40N4?

This drive belongs to the ATV212 range and is compatible with asynchronous motors, making it suitable for various industrial and commercial HVAC applications.

What does the ATV212HU40N4 support in the supply frequency range?

The supply frequency ranges from 50 to 60 Hz with a tolerance of ±5%, ensuring compatibility with standard power systems.

What are the critical electrical specifications of the ATV212HU40N4?

It has an apparent power rating of 6.9 kVA at 380 V and an output current of 9.1 A at both 380 V and 460 V, with a maximum transient current of 10 A for 60 seconds.

What is the output frequency and voltage range of the ATV212HU40N4?

The drive supports an output frequency range from 0.5 to 200 Hz and ensures that the output voltage remains within the power supply voltage limits.

What is the power dissipation of the ATV212HU40N4?

The drive has a power dissipation of 176 W, ensuring efficient operation and minimal heat generation.

What does this drive to support the speed and motor power range?

The speed range is from 1 to 10, and the motor power range for AC-3 applications is 4 to 6 kW for 380 to 440 V 3-phase systems and 4 to 6 kW for 480 to 500 V 3-phase systems.

What is the resolution of frequency control for the ATV212HU40N4?

The frequency resolution is 0.1 Hz when using the display unit and 0.024/50 Hz when using analog input.

What are the input and output options available on the ATV212HU40N4?

It features two discrete outputs, two analog and one analog output, providing versatile control options for various HVAC applications.

What types of connectors are available on the ATV212HU40N4?

The drive comes with one open-style connector and 1 RJ45 connector, offering easy connectivity and integration into control systems.

What does the ATV212HU40N4 support the transmission rate?

The transmission rate can be 9600 bps or 19200 bps, providing flexibility in communication settings to suit different system requirements.

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machine usage. They come with a 2-year warranty from MRO Electric. We also carry CPUs from other manufacturers such as Modicon and ABB.
