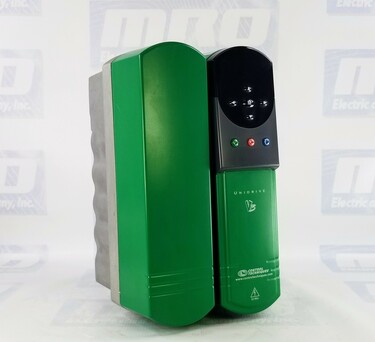

Control Techniques UNI2401 AC Drive

The Control Techniques UNI2401 AC Drive is a versatile and highly efficient motor control solution, designed to meet the diverse needs of modern industrial applications. As part of the Unidrive SP series, this drive offers a robust combination of power, flexibility, and precision, making it ideal for various operational environments. The UNI2401 is equipped with multiple operating modes, including Open Loop, Closed Loop vector, Servo, and Regen, allowing it to adapt to various motor control requirements easily. With its advanced features and reliable performance, the UNI2401 is valuable for industries looking to enhance their motor control capabilities.

Key Features and Specifications

The UNI2401 AC Drive is engineered to deliver a nominal power rating of 5.5 kW (7.5 horsepower), making it suitable for applications requiring moderate to high power levels. This drive is designed to operate efficiently under varying conditions, ensuring consistent performance across different operational modes. One of the standout features of the UNI2401 is its ability to handle multiple operating modes, including Open Loop, Closed Loop vector, Servo, and Regen. This versatility enables the drive to be used in various applications, from simple motor speed control to more complex servo and regenerative braking systems.

The drive can deliver a maximum continuous output current of 12 amps at a 40°C ambient temperature across various switching frequencies—3kHz, 4.5kHz, 6kHz, and 9kHz. At the highest frequency of 12kHz, the drive maintains a continuous output current of 11.7 amps, demonstrating its capacity to perform efficiently even under demanding conditions. When operating at a higher ambient temperature of 50°C, the drive maintains a continuous output current of 12 amps up to 6kHz, with slight reductions at higher frequencies—11.6 amps at 9kHz and 9.7 amps at 12kHz. This performance consistency across different temperatures and frequencies ensures that the UNI2401 can meet the needs of various industrial environments without compromising on reliability or efficiency.

Operating Modes and Flexibility

The Control Techniques UNI2401 AC Drive is designed to support multiple operating modes, providing exceptional flexibility in motor control. In Open Loop mode, the drive offers straightforward motor speed control without needing feedback devices, making it ideal for applications where simplicity and cost-effectiveness are priorities. In Closed-loop vector mode, the drive delivers precise torque and speed control by utilizing feedback from encoders or resolvers, making it suitable for applications requiring high accuracy and responsiveness.

The Servo mode enhances the drive's ability to control position, speed, and torque exceptionally, making it ideal for robotics, CNC machinery, and other high-performance systems. The Regen mode allows the drive to capture and reuse energy that would otherwise be lost during braking, significantly improving energy efficiency and reducing operational costs. This feature is particularly beneficial in applications with frequent start-stop cycles or where energy conservation is a priority.

Frequently Asked Questions (FAQs) for the Control Techniques UNI2401 AC Drive

1. What are the primary operating modes of the UNI2401 AC Drive?

The UNI2401 AC Drive supports multiple operating modes, including Open Loop, Closed Loop vector, Servo, and Regen. This versatility allows it to be used in various industrial applications, from essential motor speed control to advanced servo systems and regenerative braking operations.

2. What is the nominal power rating of the UNI2401?

The UNI2401 AC Drive has a nominal power rating of 5.5 kW, equivalent to 7.5 horsepower (HP). This makes it suitable for applications requiring moderate power, such as controlling pumps, fans, conveyors, and other machinery.

3. How does the drive perform under different switching frequencies?

The UNI2401 is designed to maintain a maximum continuous output current of 12 amps at a 40°C ambient temperature across various switching frequencies, including 3kHz, 4.5kHz, 6kHz, and 9kHz. At the highest switching frequency of 12kHz, the drive delivers a slightly reduced current of 11.7 amps, ensuring reliable performance even under demanding conditions.

4. Can the UNI2401 operate efficiently in higher ambient temperatures?

The UNI2401 can operate efficiently in higher ambient temperatures, up to 50°C. While the drive maintains a continuous output current of 12 amps at frequencies up to 6kHz, the current slightly decreases to 11.6 amps at 9kHz and 9.7 amps at 12kHz. This capability makes it suitable for environments with varying temperature conditions.

5. What are the advantages of the Regen mode in the UNI2401 AC Drive?

The Regen mode in the UNI2401 AC Drive allows it to capture and reuse energy during braking, which would otherwise be wasted as heat. This feature improves energy efficiency, reduces operational costs, and benefits applications with frequent start-stop cycles.

6. What kind of warranty is provided with the UNI2401 AC Drive?

The UNI2401 AC Drive comes with a 2-year MRO Electric and Supply warranty.

7. Is free shipping available when purchasing the UNI2401 from MRO Electric and Supply?

MRO Electric and Supply offers free shipping on the UNI2401 AC Drive. This service ensures that customers receive their product quickly and without any additional shipping costs, enhancing the overall purchasing experience.

8. How easy is it to integrate the UNI2401 into existing systems?

The UNI2401 AC Drive is designed for easy integration into existing control systems. Its compact design and user-friendly interface simplify installation and configuration, allowing for quick implementation with minimal downtime.

9. What is the typical input current for the UNI2401 AC Drive?

The typical input current for the UNI2401 AC Drive is 13 amps. This ensures that the drive can handle the power demands of various industrial applications while maintaining efficiency and reliability.

10. What applications are best suited for the UNI2401 AC Drive?

The UNI2401 AC Drive is ideal for various industrial applications, including motor control for pumps, fans, conveyors, and other machinery. Its multiple operating modes, energy efficiency, and robust design make it a versatile and reliable choice for diverse operational needs.

Control Techniques products are manufactured in the United Kingdom and designed for Metal production, paper processing, and material conveying. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers, such as Siemens and Yaskawa.
