UNI2403

2-year Warranty

Same Day Shipping

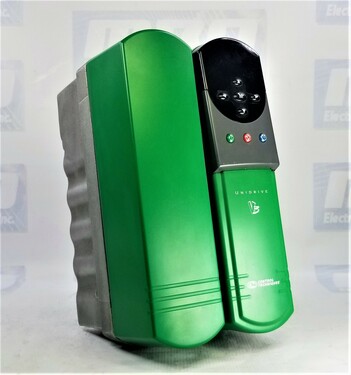

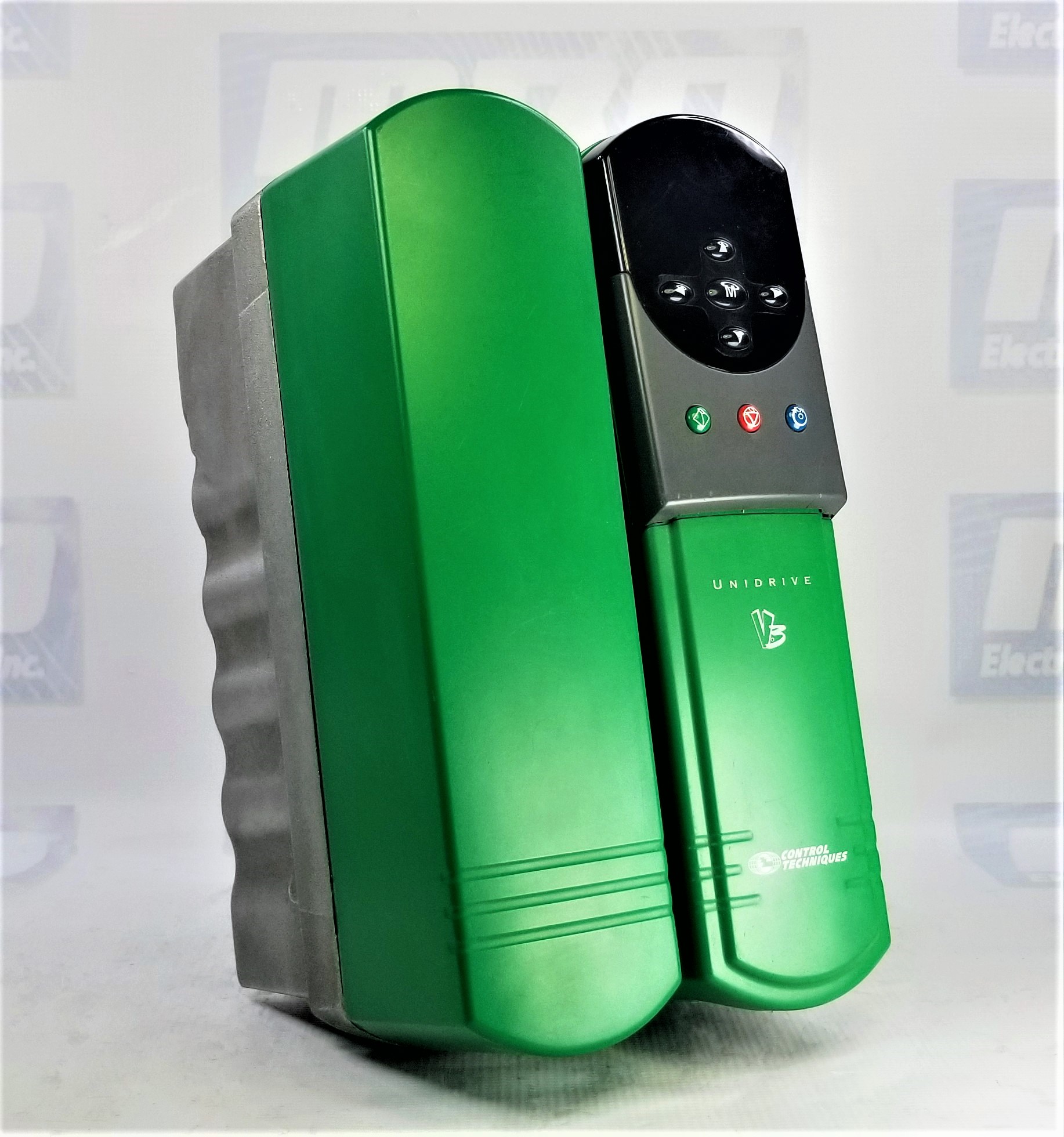

Control Techniques UNI2403

Rated 5/5 on 2 reviews

Rate this product


Manufacturer: Control Techniques

DESCRIPTION:  UNI2403 AC Drive SIZE2 24.3AMP 380/480VAC 15HP

PRODUCT TYPE INFO: Unidrive



10 in stock

Ships Today


Free Shipping

2 Year warranty

Part NumberUNI2403
ManufacturerControl Techniques
TypeAC Drives
Warranty2 Year
Operating ModesOpen Loop
Closed Loop vector
Servo
Regen
Nominal Rating - kW11
Nominal Rating - hp15
Max. Continuous Output Current at 40°C ambient (A)
3kHz25
4.5kHz21.7
6kHz18.2
9kHz14.2
12kHz11.7
Max. Continuous Output Current at 50°C ambient (A)
3kHz20
4.5kHz17.3
6kHz14.7
9kHz11.6
12kHz9.7
Typical Input Current (A)21
Max. Continous Output Current (A)25
Minimum Resistance (Ω)30
Instantaneous Powe Rating (kW)20

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed UNI2403 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this UNI2403 we also repair a wide range of other Control Techniques products, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty UNI2403, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 18lbs

Want it shipped today?

  • Order within the next 14 hours and 56 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty UNI2403 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Control Techniques UNI2403 Overview

Control Techniques UNI2403 Size 2 Drive: A Technical Description

Introduction:

The Control Techniques UNI2403 is a state-of-the-art AC drive from a renowned manufacturer. Known for its flexibility in operation and efficiency, the drive offers several modes that cater to different application needs. This technical description delves deeper into its specifications and features.

General Overview:

  • Part Number: UNI2403
  • Manufacturer: Control Techniques
  • Type: AC Drives
  • Warranty: 2 years

Operating Modes:

The UNI2403 offers four distinct operating modes, making it versatile for varied applications:

  1. Open Loop: This is the most straightforward mode, where the drive operates without continuous feedback.
  2. Closed Loop Vector: In this mode, the drive continuously adjusts its operation based on the feedback received, ensuring better accuracy.
  3. Servo: This mode is for precise control typically in robotics or CNC machines.
  4. Regen: Allows the drive to regenerate energy back into the system, typically during braking or when motor speed exceeds the drive speed.

Nominal Ratings:

  • Power in kW: 11 kW
  • Power in HP: 15 HP

This defines the standard operational power limits of the drive, indicating the power it can handle under normal conditions.

Output Current at Different Frequencies (40°C Ambient):

Frequency operation and the corresponding maximum continuous output current values at 40°C are:

  • 3kHz: 25A
  • 4.5kHz: 21.7A
  • 6kHz: 18.2A
  • 9kHz: 14.2A
  • 12kHz: 11.7A

Output Current at Different Frequencies (50°C Ambient):

At a slightly higher ambient temperature of 50°C, the drive's maximum continuous output current ratings are:

  • 3kHz: 20A
  • 4.5kHz: 17.3A
  • 6kHz: 14.7A
  • 9kHz: 11.6A
  • 12kHz: 9.7A

This indicates the drive's robustness in different temperature environments. It also emphasizes the importance of adequate cooling and ventilation when the drive is operated in warmer settings.

Input and Output Current Ratings:

  • Typical Input Current: 21A
  • Max Continuous Output Current: 25A

This describes the average current the drive will draw from its power source and the maximum continuous output current it can supply to the motor.

Minimum Resistance:

The UNI2403 has a specified minimum resistance of 30 ohms (Ω). This parameter is essential when designing protection and control circuits, ensuring the drive's safety and the connected motor's longevity.

Instantaneous Power Rating:

The drive boasts an impressive instantaneous power rating of 20 kW. This signifies the peak power the drive can handle for brief moments, accommodating transient spikes in power demand without damage or degradation in performance.
