XBTGT4230

2-year Warranty

Same Day Shipping

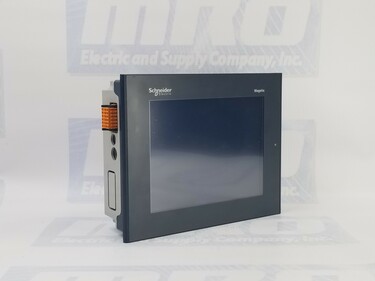

Schneider Electric XBTGT4230

Rated 5/5 on 1 review

Rate this product


MANUFACTURER: SCHNEIDER ELECTRIC

DESCRIPTION: Advanced Touchscreen Panel - 640 X 480 Pixels Vga - 7.5,Stn Lcd - 24 V DC

PRODUCT TYPE INFO: MODICON MAGELIS

3 in stock

Ships Today


Free Shipping

2 Year warranty

Part NumberXBTGT4230
ManufacturerSchneider Electric
TypeHMIs
Warranty2 Year
Product weight1 kg
Range of productMagelis XBTGT
Product or component typeAdvanced touchscreen panel
Display typeBacklit colour STN LCD
Display colour4096 colours
Display resolution640 x 480 pixels VGA
Display size7.5 inch
Software typeConfiguration software
Software designationVijeo Designer
Operating systemMagelis
Processor nameCPU RISC
Processor frequency266 MHz
Memory descriptionBack up of data SRAM 512 kB lithium battery
Integrated connection typeCOM2 serial link RJ45 RS485 <= 187.5 kbit/s Siemens MPI (187.5 kbits/s)
Resistance to electrostatic discharge6 kV IEC 61000-4-2 level 3
Cut-out dimensions204.5 (+ 1/- 0) x 159.5 (+ 1/- 0) mm
Touch sensitive zone1024 x 1024
Touch panelAnalogue
Brightness8 levels via touch panel
Contrast8 levels via touch panel
Character fontASCII (European characters)
Chinese (simplified Chinese)
Japanese (ANK, Kanji)
Korean
Taiwanese (traditional Chinese)
[Us] rated supply voltage24 V DC
SupplyExternal source
Supply voltage limits19.2...28.8 V
Inrush current<= 30 A
Power consumption28 W
Local signalling1 LED (green or orange) for normal operation or backlighting faulty
Number of pagesLimited by internal memory capacity
Downloadable protocolsFIPWAY Telemecanique Modicon
Modbus TCP Telemecanique Modicon
Modbus Plus Telemecanique Modicon
Third party protocols Mitsubishi Melsec
Third party protocols Rockwell Automation Allen-Bradley
Third party protocols Siemens Simatic
Modbus Telemecanique Modicon
Third party protocols Omron Sysmac
Uni-TE Telemecanique Modicon
Realtime clockBuilt-in
Memory type1 slot for Compact Flash card (128 MB to 1 GB)
Use of slotFor 1 fieldbus communication card (Device Net, Profibus DP)
Port Ethernet10BASE-T/100BASE-TX
Product mountingFlush mounting
Fixing modeBy 4 screw clamps
By 4 spring clips
Enclosure materialPPT
MarkingCE
Width215 mm
Height170 mm
Depth60 mm

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed XBTGT4230 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this XBTGT4230 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty XBTGT4230, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 5lbs

Want it shipped today?

  • Order within the next 4 hours and 45 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty XBTGT4230 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric XBTGT4230 Overview

The XBTGT4230 is an advanced touchscreen panel manufactured by Schneider Electric. It belongs to the Magelis XBTGT range of HMIs (Human-Machine Interfaces) and is designed to provide control for industrial applications. With a warranty period of 2 years, this HMI offers durability and reliability. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry HMIs from other manufacturers such as Modicon and ABB.

Specifications

Weighing 1 kg, the XBTGT4230 is a compact panel that combines a sleek design with powerful functionality. It features a backlit color STN LCD display, capable of producing 4096 colors for vibrant and clear visuals. The display resolution is 640 x 480 pixels VGA, providing sharp and detailed graphics. With a display size of 7.5 inches, the touchscreen panel offers ample space for user interaction and monitoring.

Interface

The configuration software used with the XBTGT4230 enables easy and flexible customization of the HMI interface. The operating system of the panel is Magelis, which ensures the smooth and efficient operation of the HMI functions. The panel is equipped with a CPU RISC processor running at a frequency of 266 MHz, ensuring fast and responsive performance.

Memory

The panel features a backup of data SRAM with a capacity of 512 kB and a lithium battery for reliable data retention. It offers multiple integrated connection options, including COM2 serial link RJ45 RS485 and Siemens MPI, supporting communication speeds of up to 187.5 kbit/s.

Features

The XBTGT4230 HMI panel provides excellent resistance to electrostatic discharge, with a rating of 6 kV according to IEC 61000-4-2 level 3 standard.

The panel's cut-out dimensions are 204.5 (+ 1/- 0) x 159.5 (+ 1/- 0) mm. The touch-sensitive zone of the panel has a resolution of 1024 x 1024, providing precise and accurate touch input. The XBTGT4230 is analog, enabling intuitive and responsive interaction with the HMI.

Brightness and contrast settings can be adjusted via the touch panel, offering flexibility to optimize visibility in different lighting conditions. The character font supports various languages.

Function

The XBTGT4230 operates with a rated supply voltage of 24 V DC, sourced externally. The supply voltage limits range from 19.2 V to 28.8 V, providing flexibility for different power systems. The inrush current is less than or equal to 30 A, ensuring a smooth startup without overloading the power supply. The power consumption of the panel is 28 W, indicating efficient energy usage.

The local signaling feature includes a single LED (green or orange) that indicates normal operation or backlighting faults, allowing for quick status identification. The number of pages available on the panel is limited by the internal memory capacity, enabling the creation of customized interfaces based on application requirements.

Protocols

The XBTGT4230 supports a range of downloadable protocols, including FIPWAY Telemecanique Modicon, Modbus TCP Telemecanique Modicon, Modbus Plus Telemecanique Modicon, Mitsubishi Melsec (third-party protocol), Rockwell Automation Allen-Bradley (third-party protocol), Siemens Simatic (third-party protocol), Modbus Telemecanique Modicon, Omron Sysmac (third-party protocol), and Uni-TE Telemecanique Modicon.

Applications

The panel features a built-in real-time clock, ensuring accurate timekeeping for time-sensitive applications. It provides memory slots for Compact Flash cards ranging from 128 MB to 1 GB, offering ample storage for data and application files. Additionally, there is a slot available for the installation of a Fieldbus communication card, such as DeviceNet or Profibus DP.

Connection

Connectivity options include a 10BASE-T/100BASE-TX Ethernet port, allowing for seamless integration with industrial networks. The panel is designed for flush mounting with screw clamps or four spring clips, providing installation flexibility. The enclosure material is PPT (Polyphenylene Terephthalate), which offers durability and resistance to environmental conditions.

Compliance

With its CE marking, the XBTGT4230 complies with European Union standards for safety, health, and environmental protection. It has a width of 215 mm, height of 170 mm, and depth of 60 mm, making it suitable for various control panels and enclosure designs.

In conclusion, the XBTGT4230 touchscreen panel by Schneider Electric offers a feature-rich and user-friendly interface for industrial applications. With its advanced display technology, powerful processor, versatile connectivity options, and robust construction, it provides reliable and intuitive control in diverse industrial environments. The panel's compact design, compatibility with industry-standard protocols, and flexible customization options make it a valuable component in automation and control systems.
