XBTGT4330

2-year Warranty

Same Day Shipping

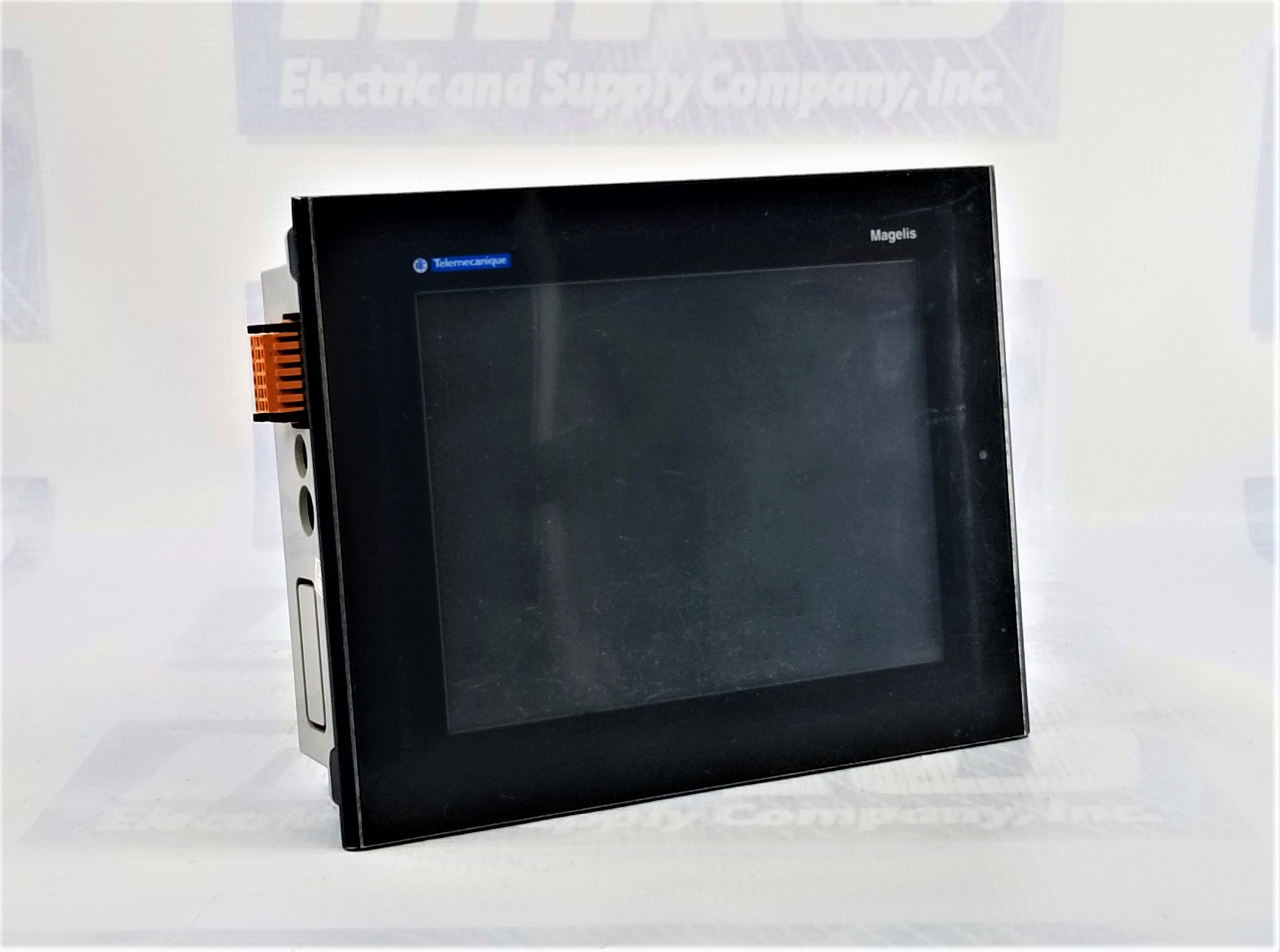

Schneider Electric XBTGT4330

MODICON MAGELIS ADVANCED TOUCHSCREEN PANEL - 640 X 480 PIXELS VGA - 7.5 - TFT LCD - 24 V DC
5/5
2 ratings

Select Condition

Refurbished

2 in stock

$2,691.00

Request a formal quote

  • Ships Today
  • 2 Year Warranty
  • Free Shipping
Part NumberXBTGT4330
ManufacturerSchneider Electric
TypeHMIs
Warranty2 Year
Product weight1.8 kg
Range of productMagelis XBTGT
Product or component typeAdvanced touchscreen panel
Display typeBacklit colour TFT LCD
Display colour65536 colours
Display resolution640 x 480 pixels VGA
Display size7.5 inch
Software typeConfiguration software
Software designationVijeo Designer
Operating systemMagelis
Processor nameCPU RISC
Processor frequency266 MHz
Memory descriptionBack up of data SRAM 512 kB lithium battery
Integrated connection typeCOM2 serial link RJ45 RS485 <= 187.5 kbit/s Siemens MPI (187.5 kbits/s)
Resistance to electrostatic discharge6 kV IEC 61000-4-2 level 3
Cut-out dimensions204.5 (+ 1/- 0) x 159.5 (+ 1/- 0) mm
Touch sensitive zone1024 x 1024
Touch panelAnalogue
Brightness8 levels via touch panel
Contrast8 levels via touch panel
Character fontASCII (European characters)
Chinese (simplified Chinese)
Japanese (ANK, Kanji)
Korean
Taiwanese (traditional Chinese)
[Us] rated supply voltage24 V DC
SupplyExternal source
Supply voltage limits19.2...28.8 V
Inrush current<= 30 A
Power consumption28 W
Local signalling1 LED (green or orange) for normal operation or backlighting faulty
Number of pagesLimited by internal memory capacity
Downloadable protocolsModbus Plus Telemecanique Modicon
Third party protocols Mitsubishi Melsec
Third party protocols Rockwell Automation Allen-Bradley
Third party protocols Siemens Simatic
FIPWAY Telemecanique Modicon
Modbus TCP Telemecanique Modicon
Modbus Telemecanique Modicon
Third party protocols Omron Sysmac
Uni-TE Telemecanique Modicon
Realtime clockBuilt-in
Memory type1 slot for Compact Flash card (128 MB to 1 GB)
Use of slotFor 1 fieldbus communication card (Device Net, Profibus DP)
Port Ethernet10BASE-T/100BASE-TX
Product mountingFlush mounting
Fixing modeBy 4 screw clamps
By 4 spring clips
Enclosure materialPPT
MarkingCE
Width215 mm
Height170 mm
Depth60 mm

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed XBTGT4330 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this XBTGT4330 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty XBTGT4330, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped today?

  • Order within the next 10 hours and 3 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty XBTGT4330 for credit when ordering from MRO Electric

What is the replacement part number for the XBTGT4330 Magelis HMI?

  • The XBTGT4330 HMI has been replaced by the HMIGTO4310 touchscreen panel.
MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric XBTGT4330 Overview

Schneider Electric XBTGT4330

The Schneider Electric XBTGT4330 is an advanced touchscreen panel from the Magelis XBTGT range, designed to provide intuitive human-machine interface (HMI) capabilities for industrial applications. With its high-quality display, powerful processor, and versatile connectivity options, this HMI offers a comprehensive solution for process monitoring and control.

Design and Display:

The XBTGT4330 features a backlit color TFT LCD with a resolution of 640 x 480 pixels VGA, capable of presenting 65536 colors. The 7.5-inch display size provides ample space for visualizing complex processes and data. The panel's touch-sensitive zone, supporting 1024 x 1024 touch points, ensures precise and responsive user interactions.

Processor and Memory:

Equipped with a robust RISC-based CPU operating at a frequency of 266 MHz, the XBTGT4330 offers high-speed processing capabilities for efficient data handling and screen updates. It comes with 512 kB of SRAM memory backed up by a lithium battery, ensuring data integrity even during power interruptions.

Software and Configuration:

The XBTGT4330 uses Schneider Electric's Vijeo Designer configuration software, a powerful tool for designing and customizing HMI applications. The software provides a user-friendly interface, enabling engineers to create dynamic and interactive screens with ease.

Connectivity and Communication:

This HMI panel offers various communication options, including a COM2 serial link with RJ45 and RS485 support up to 187.5 kbit/s. It also supports Siemens MPI (187.5 kbits/s) for seamless integration with Siemens devices. With Modbus Plus, Telemecanique Modicon, Modbus TCP, Modbus, and several third-party protocols like Mitsubishi Melsec, Rockwell Automation Allen-Bradley, Siemens Simatic, Omron Sysmac, and Uni-TE, the XBTGT4330 ensures interoperability with a wide range of industrial devices.

Power Supply and Voltage:

The XBTGT4330 operates on a rated supply voltage of 24 V DC, drawing power from an external source. The supply voltage limits range from 19.2 V to 28.8 V, ensuring compatibility with standard industrial power systems. The device has a power consumption of 28 W, ensuring efficient energy usage during operation.

Resistance and Durability:

To withstand challenging industrial environments, the XBTGT4330 is designed with a resistance to the electrostatic discharge of 6 kV (IEC 61000-4-2 level 3). The enclosure material is made of PPT, ensuring durability and protection against vibrations, shocks, and temperature variations.

Memory Expansion and Connectivity:

The device comes with 1 slot for a Compact Flash card (128 MB to 1 GB), enabling memory expansion for storing application data and additional resources. It also supports one Fieldbus communication card (Device Net, Profibus DP) for enhanced connectivity with other industrial equipment.

Mounting and Installation:

The XBTGT4330 is designed for flush mounting and can be securely fixed using either 4 screw clamps or 4 spring clips. The compact dimensions of 215 mm in width, 170 mm in height, and 60 mm in depth make it suitable for space-constrained installations.

Conclusion:

In conclusion, the Schneider Electric XBTGT4330 is an advanced HMI panel from the Magelis XBTGT range, equipped with a feature-rich touchscreen and powerful processor. With its extensive communication options, memory expandability, and durable construction, it provides an efficient and reliable solution for various industrial automation applications. Whether in manufacturing, process control, or other industrial settings, the XBTGT4330 HMI excels in providing operators with a user-friendly interface, real-time data visualization, and seamless connectivity, making it an essential tool for optimizing processes, improving productivity, and ensuring smooth operations in modern industrial environments.

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry HMIs from other manufacturers such as Modicon and ABB.
