140ACI03000: Beyond the User Manual

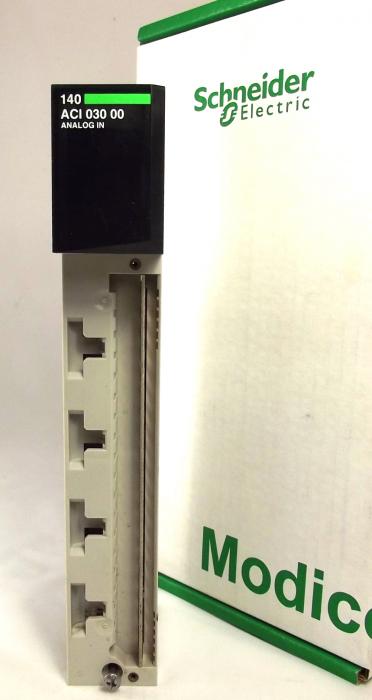

The Quantum 140ACI03000 Analog Input Module provides (8) differential analog input channels. Each channel is individually configurable for a 1 … 5 VDC or 4 … 20 mA signal.
This module has broken wire detection in current mode and under voltage in voltage mode. A Quantum removable terminal strip allows for easy maintenance.
Quantum backplanes (ordered separately) come in 2,3,4,6,10, and 16 slot versions. Any Quantum module can be used in any slot. A Quantum power supply is required in each rack. The power supply provides logic power to all modules on the bus, including the 140ACI03000.

All Quantum I/O modules are optically isolated from the bus, ensuring safe and trouble-free operation. This isolation also allows modules to be hot swapped.

Optionally, you can insert mechanical keys between the I/O module and
the terminal strip to ensure that the field wiring and the module type are
properly matched. Key codes are unique for each module type. Key kits are shipped with each I/O module. As an option, modules can be ordered with a conformal coating applied
to protect the internal circuitry from corrosive gases such as Chlorine, Nitric Oxide, Hydrogen Sulfide and Sulfur Dioxide.
You can visit our product page for the 140ACI03000 here. To order you can email sales@mroelectric.com here or call 1-800-691-8511.
