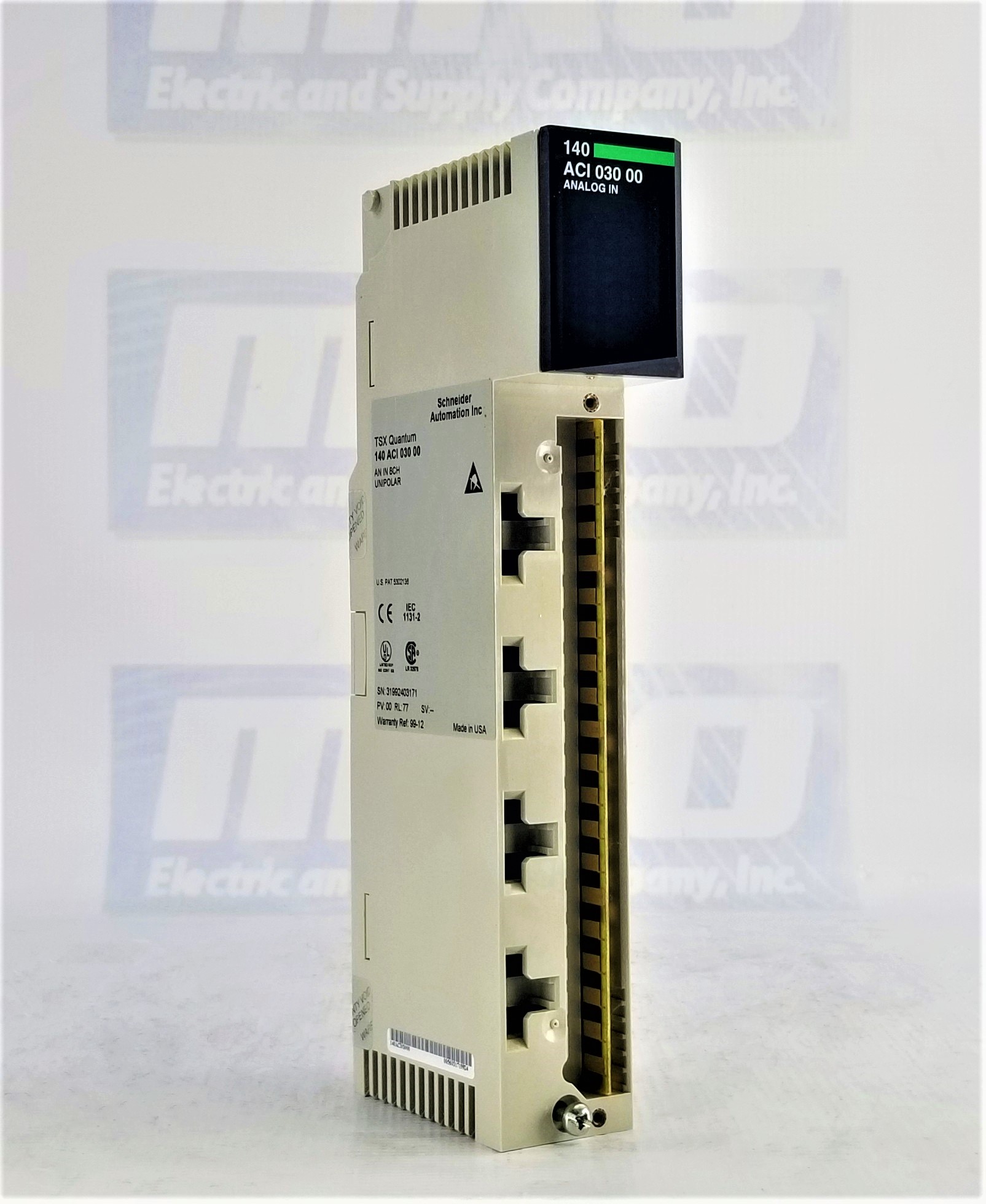

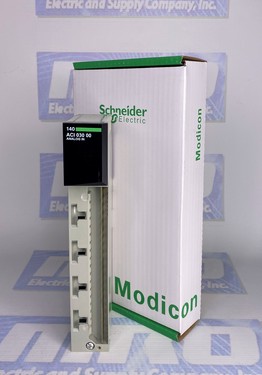

Technical Description of 140ACI03000 Analog Input Module Modicon Quantum

Product Overview

The 140ACI03000 is an analog input module, falling under the Modicon Quantum automation platform. Designed for precision and durability, it can seamlessly handle various analog input types, ensuring reliability and accuracy for automation tasks.

Key Specifications

• Product Type: Analogue input module
• Filter Type: Single pole low pass with a frequency cut-off at 15 Hz ±20%.
• Analog Input Number: The module consists of 8 differential analog input channels.
• Addressing Requirement: Requires 9 input words for addressing.
• Resolution: A resolution of 12 bits is provided for precise measurements.
• Measuring Range: It can measure linearly within the range of 1-5 V and 4-20 mA.
• Maximum Input Capacity: The absolute maximum input is 50 V DC for voltage and 25 mA for current.
• Input Impedance: The module exhibits an input impedance of 250 Ohm for current (±0.01%) and >20 MOhm for voltage.
• Accuracy: Absolute accuracy error varies from ±0.05% to ±0.1% of the full scale. The linearity error is approximately ±0.04%.
• Temperature-based Accuracy Drift: Accuracy drift due to temperature ranges from ±0.0025% to ≤0.005% of full scale/°C.
• Isolation: It offers an isolation of 1000 V DC between channels and bus, with 3000 V DC enduring for 60 seconds. Inter-channel isolation stands at 30 V DC.
• Update Time: Data updates every 5 ms.
• Fault Indications: The module detects broken wire faults in the 4-20 mA range and undervoltage faults in the 1-5 V range.

Physical and Environmental Attributes

• Signaling LEDs: The module is equipped with multiple LEDs for various indications:
• Green LED for active bus communication
• Red LED for external faults
• 8 green LEDs indicating active channels
• 8 red LEDs signaling channel faults.
• Power Requirement: The module draws a bus current of 240 mA and has a power dissipation of 2W.
• Dimensions and Weight: It adheres to the standard module format and weighs approximately 0.3 kg (0.66 lb).
• Environmental Resilience: It adheres to UL 508 and CSA C22.2 No 142 standards. Certified by FM Class 1 Division 2 and cUL. It resists electrostatic discharges up to 8 kV in air and electromagnetic fields up to 9.14 V/m. The module operates optimally between temperatures of 32–140°F (0–60°C) and can be stored in temperatures ranging from -40–185°F (-40–85°C).
• Operating Altitude: Efficient operation is maintained up to 5,000 meters (16,404.2 ft).

Safety and Sustainability

• Origin: This product is manufactured in France.
• Offer Sustainability: The module is compliant with California Proposition 65 and the EU RoHS Directive. It's mercury-free and requires special waste collection and disposal within the European Union.
• Environmental and Circularity Profile: The product comes with an environmental profile and end-of-life information for sustainability considerations.

FAQ Section

1. What is the 140ACI03000 module used for?

• It is an analog input module designed for precision and reliability in automation tasks under the Modicon Quantum platform.

1. How many analog inputs does the module support?

• The module supports 8 differential analog input channels.

1. Is there any visual indication of active channels or faults?

• Yes, the module has 8 green LEDs indicating active channels and 8 red LEDs signaling channel faults.

1. What's the operating temperature range?

• The module operates efficiently between 32–140°F (0–60°C).

1. Are there any special disposal requirements for the module?

• Yes, in the European Union, it requires specific waste collection and should not be discarded in regular rubbish bins.

1. Is the product mercury-free?

• Yes, the 140ACI03000 module is mercury-free.

1. Where is the product manufactured?

• The 140ACI03000 module is manufactured in France.
