140ACI05100SC

2-year Warranty

Same Day Shipping

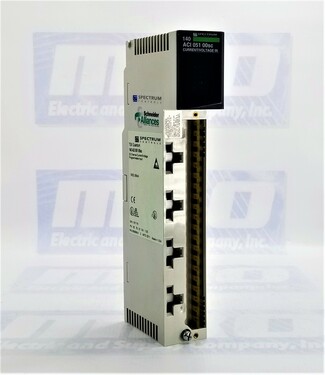

Schneider Electric 140ACI05100SC

MODICON QUANTUM INPUT MODULE 32POINT SELECTABLE CURR...
5/5
1 rating

Select Condition

Refurbished

1 in stock

$3,125.00

Request a formal quote

  • Ships Today
  • 2 Year Warranty
  • Free Shipping
Part Number140ACI05100SC
ManufacturerSchneider Electric
TypeI/O Modules
Model #140-ACI-051-00SC
Warranty2 Year
RangeModicon
CategoryQuantum
DescriptionInput module
Points32 Pt.
Current voltageSelectable
Analog inputV/I

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 140ACI05100SC to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 140ACI05100SC we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 140ACI05100SC, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped today?

  • Order within the next 10 hours and 44 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 140ACI05100SC for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric 140ACI05100SC Overview

Schneider Electric 140ACI05100SC: Versatile Input Module for Precision Control

The Schneider Electric 140ACI05100SC is the pinnacle of versatility and precision in industrial automation. A crucial component of the Modicon Quantum series, this 32-channel analog input module offers unparalleled flexibility and performance, catering to the diverse needs of modern manufacturing environments.

Customizable Input Configuration:

At the heart of the 140ACI05100SC lies its ability to quickly adapt to various input requirements. Whether it's current-only, voltage-only, or a combination of both, users can configure the module to suit their specific application needs. With four groups of eight channels, each independently configurable for different voltage or current ranges, precision control is at your fingertips.

Wide Range of Input Options:

The module supports various input options to accommodate diverse industrial setups. For current measurements, it offers ranges of 4-20 mA and 0-20 mA, while voltage measurements encompass ±10VDC, 0-10VDC, 0-5VDC, and 1-5VDC. Such versatility ensures compatibility with myriad sensors and devices, facilitating seamless integration into existing systems.

Flexible Data Output Formats:

With multiple data output formats, the 140ACI05100SC allows users to choose the most suitable format for their application requirements. Whether it's a 12-bit resolution for fine-grained precision or a signed 15-bit format for extended range, the module ensures accurate data transmission to the PLC. Additional formats, such as unsigned 16-bit and DVM (0 to 10000), further enhance compatibility and usability. Moreover, built-in input filter options (10Hz, 50Hz, 60Hz, 1kHz) allow for precise signal conditioning, minimizing noise and interference.

Comprehensive LED Indicators:

Navigating the status of the 140ACI05100SC is effortless, thanks to its comprehensive LED panel. The front panel features 35 LEDs providing real-time feedback on module status and channel activity. The Ready LED signifies successful self-test completion and module readiness for communication, while the Active LED indicates established BUS communication between the module and the rack. In case of any faults, the Fault LED provides immediate notification, with blink codes corresponding to specific error types, ensuring quick diagnosis and resolution. Individual Channel LEDs offer instant visibility into enabled channels and signal levels, further streamlining troubleshooting and maintenance processes.

Frequently Asked Questions

Q: What is the Schneider Electric 140ACI05100SC?

A: The Schneider Electric 140ACI05100SC is an analog input module designed for industrial automation systems within the Modicon Quantum series.

Q: What are the key features of the 140ACI05100SC?

A: The module features 32 channels that can be configured for current-only, voltage-only, or a combination of both input types. It offers various input ranges, data output formats, and comprehensive LED indicators for status monitoring.

Q: What input options does the 140ACI05100SC support?

A: The module supports current measurement ranges of 4-20 mA and 0-20 mA and voltage measurement ranges including ±10VDC, 0-10VDC, 0-5VDC, and 1-5VDC. Users can configure each channel independently for different ranges.

Q: What data output formats are available with the 140ACI05100SC?

A: The module provides multiple data output formats, including 12-bit, signed 15-bit, and unsigned 16-bit resolutions, as well as DVM (0 to 10000). Additionally, it offers input filter options for signal conditioning.

Q: How does the LED panel on the 140ACI05100SC assist in monitoring?

A: The module features a front LED panel with various indicators. The Ready LED confirms successful self-test completion, the Active LED indicates BUS communication status, and the Fault LED notifies of module errors. Channel LEDs provide real-time status for individual channels.

Q: Can the 140ACI05100SC be integrated into existing automation systems?

A: The module is designed for seamless integration into existing Modicon Quantum series systems. It comes with installation instructions for easy setup and configuration.

Q: What support options are available for the 140ACI05100SC?

A: Schneider Electric offers comprehensive support for the 140ACI05100SC, including documentation, technical assistance, and warranty coverage. Users can access manuals and resources for installation, troubleshooting, and maintenance.

Q: What industries or applications is the 140ACI05100SC suitable for?

A: The module suits various industries and applications requiring analog input monitoring and control, including manufacturing, process automation, energy management, and more.

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry I/O Modules from other manufacturers such as Modicon and ABB.
