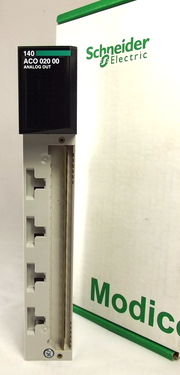

140ACO02000C

140ACO02000C

Analog Output Module Modicon Quantum - 4 O - 4..20 Ma
Available - call for stock

Free 2 Day Shipping
2 years warranty

Categories

ManufacturerSchneider Electric
SeriesModicon Quantum
Module formatStandard
Addressing requirement4 output words
Loop voltage12...30 V DC
Voltage drop7...30 V 20 mA
Absolute accuracy error+/- 0.20 % of full scale 25 °C
Linearity+/- 1 LSB
Accuracy drift according to temperature+/- 0.004 % of full scale/°C
+/- 0.007 % of full scale/°C maximum
Isolation between channels500 V 47...63 Hz AC
750 V for 1 minute DC
Update time3 ms
Setting time900 µs to +/- 0.1 % of the final value
Fault typeOpen circuit 4...20 mA
Bus current requirement480 mA
Power dissipation in W≤ 5,3 W
External power requirement12...30 V
MarkingCE
Local signalling1 LED green bus communication is present (Active)
1 LED red external fault
4 LED green channel is turned on
4 LED red channel fault
Our core exchange program offers you credit for your faulty items, please ask about getting an RMA to send your core in with for credit. You can also send in your unit to be repaired, our standard turnaround for repairs is 5-7 days, and all of our repaired items look like new, and come with a 1 year warranty.

This product weights 1lb. Want it shipped tomorrow?

  • Order within the next 19 hours and 49 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

What is the product warranty?

  • 140ACO02000C comes with a 2 year warranty
  • Ask about exchanging your faulty 140ACO02000C for credit when ordering from MRO Electric

Additional Information

Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call, or sending us an email, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like 140ACO02000C, take a look at more from our Modicon Quantum line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. We offer a repair service on all of our products that keep your downtime to a minimum. To stay up to date on on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
