140ACO13000

2-year Warranty

Same Day Shipping

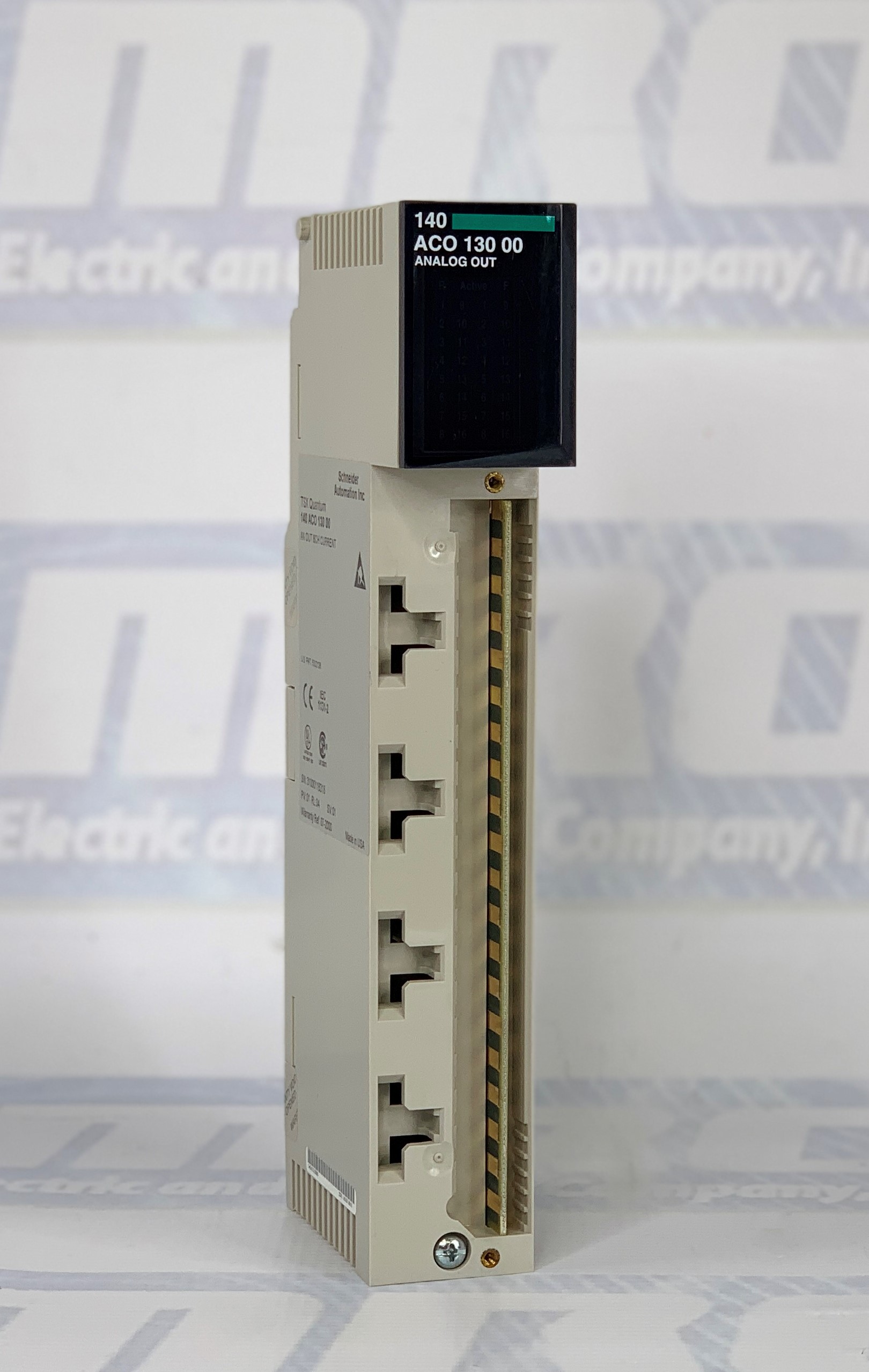

Schneider Electric 140ACO13000

MODICON QUANTUM ANALOG OUTPUT MODULE - 8 O MULTIRANGE
5/5
3 ratings

Select Condition

Refurbished

14 in stock

New

4 in stock

$1,179.00

Request a formal quote

  • Ships Today
  • 2 Year Warranty
  • Free Shipping
Part Number140ACO13000
ManufacturerSchneider Electric
TypeI/O Modules
Model #140-ACO-130-00
Warranty2 Year
Module formatStandard
Analogue output number8
Addressing requirement8 output words
Loop voltage6...30 V DC
Voltage drop6...30 V 25 mA
Analogue output range4...20 mA 0...4095 counts
4...20 mA 0...16000 counts
0...25 mA 0...25000 counts
0...20 mA 0...20000 counts
Absolute accuracy error+/- 0.2 % of full scale at 25 °C
Linearity+/- 4 µA 4...20 mA 0...16000 counts
+/- 4 µA 0...25 mA 0...25000 counts
+/- 4 µA 0...20 mA 0...20000 counts
+/- 12 µA 4...20 mA 0...4095 counts
Accuracy drift according to temperature0.007 % of full scale/°C maximum
0.004 % of full scale/°C typical
Isolation between channels and bus1780 V for 1 minute AC
Update time5 ms
Setting time1.6 ms to 5% of the final value
3.2 ms to +/-0.1% of the final value
Fault typeOpen circuit 4...20 mA
Bus current requirement550 mA
Power dissipation in W5 W
External power requirement6...30 V
MarkingCE
Local signalling8 LEDs red channel fault
8 LEDs green channel is turned on
1 LED red external fault
1 LED green bus communication is present (Active)

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 140ACO13000 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 140ACO13000 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 140ACO13000, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped tomorrow?

  • Order within the next 19 hours and 44 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 140ACO13000 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric 140ACO13000 Overview

140ACO13000: Precision Analog Output for Your Control System

Module Format: Standard

The 140ACO13000, crafted by Schneider Electric, represents performance and reliability in the realm of I/O Modules. Designed in a standard format, this module seamlessly integrates into your control system, offering versatile analog output solutions.

High Analog Output Density:

Featuring eight analog output channels, the 140ACO13000 provides ample capacity to drive multiple devices with precision. Whether you're controlling valves, actuators, or other analog devices, this module delivers consistent and accurate output signals.

Versatile Voltage Range:

With a loop voltage range of 6 to 30 V DC, the 140ACO13000 ensures compatibility with a wide array of devices and systems. Its voltage drop characteristics guarantee stable performance even under varying load conditions, ensuring reliable operation in diverse applications.

Precision and Accuracy:

Equipped with multiple output ranges, including 4-20 mA and 0-25 mA, the 140ACO13000 offers exceptional accuracy and linearity. With an absolute accuracy error of just +/- 0.2% of full scale at 25°C, this module ensures precise control over your analog outputs.

Robust Performance in Any Environment:

Built to withstand harsh industrial environments, the 140ACO13000 boasts impressive accuracy drift characteristics and isolation between channels and the bus. Its rugged design and CE marking ensure compliance with stringent quality standards, guaranteeing reliable operation in demanding conditions.

Fast Update and Setting Times:

Featuring a swift update time of just 5 ms, the 140ACO13000 ensures rapid response to control signals, minimizing latency in your system. Its setting time of 1.6 ms to 5% of the final value and 3.2 ms to +/-0.1% of the final value ensures precise and efficient control over analog outputs.

Comprehensive Fault Monitoring:

With local signaling indicators including 8 LEDs for channel fault detection, 8 LEDs indicating channel activation, and additional LEDs for external fault and bus communication status, the 140ACO13000 provides comprehensive fault monitoring for enhanced system reliability.

Efficient Power Management:

Despite its robust performance capabilities, the 140ACO13000 boasts efficient power management, with a low power dissipation of just 5 W. Its modest external power requirement of 6 to 30 V further ensures energy-efficient operation in your control system.

Seamless Integration and Compliance:

Whether you're upgrading existing systems or implementing new control solutions, the 140ACO13000's standard format, versatile voltage range, and CE marking ensure seamless integration and compliance with industry standards, making it an ideal choice for a wide range of applications.

FAQs - 140ACO13000 Analog Output Module

Q: What is the 140ACO13000 module?

A: The 140ACO13000 is an analog output module manufactured by Schneider Electric, designed to provide precise analog output signals in industrial automation systems.

Q: How many analog output channels does the 140ACO13000 have?

A: The 140ACO13000 module features 8 analog output channels, offering ample capacity for controlling various devices in industrial applications.

Q: What is the voltage range supported by the 140ACO13000 module?

A: The 140ACO13000 module operates within a loop voltage range of 6 to 30 V DC, ensuring compatibility with a wide range of devices and systems.

Q: What are the output ranges available for the 140ACO13000 module?

A: The 140ACO13000 module supports multiple output ranges, including 4-20 mA and 0-25 mA, providing flexibility for different application requirements.

Q: How accurate is the output of the 140ACO13000 module?

A: The 140ACO13000 module offers exceptional accuracy, with an absolute accuracy error of just +/- 0.2% of full scale at 25°C, ensuring precise control over analog outputs.

Q: Does the 140ACO13000 module provide fault monitoring?

A: Yes, the 140ACO13000 module features comprehensive fault monitoring with LEDs indicating channel faults, channel activation, external faults, and bus communication status, enhancing system reliability.

Q: What is the update time of the 140ACO13000 module?

A: The 140ACO13000 module has a fast update time of just 5 ms, ensuring rapid response to control signals for efficient operation.

Q: What is the power dissipation of the 140ACO13000 module?

A: The 140ACO13000 module has a low power dissipation of 5 W, ensuring efficient power management in industrial automation systems.

Q: Is the 140ACO13000 module compliant with industry standards?

A: Yes, the 140ACO13000 module complies with industry standards and is marked with CE certification, ensuring compatibility and reliability in industrial environments.
