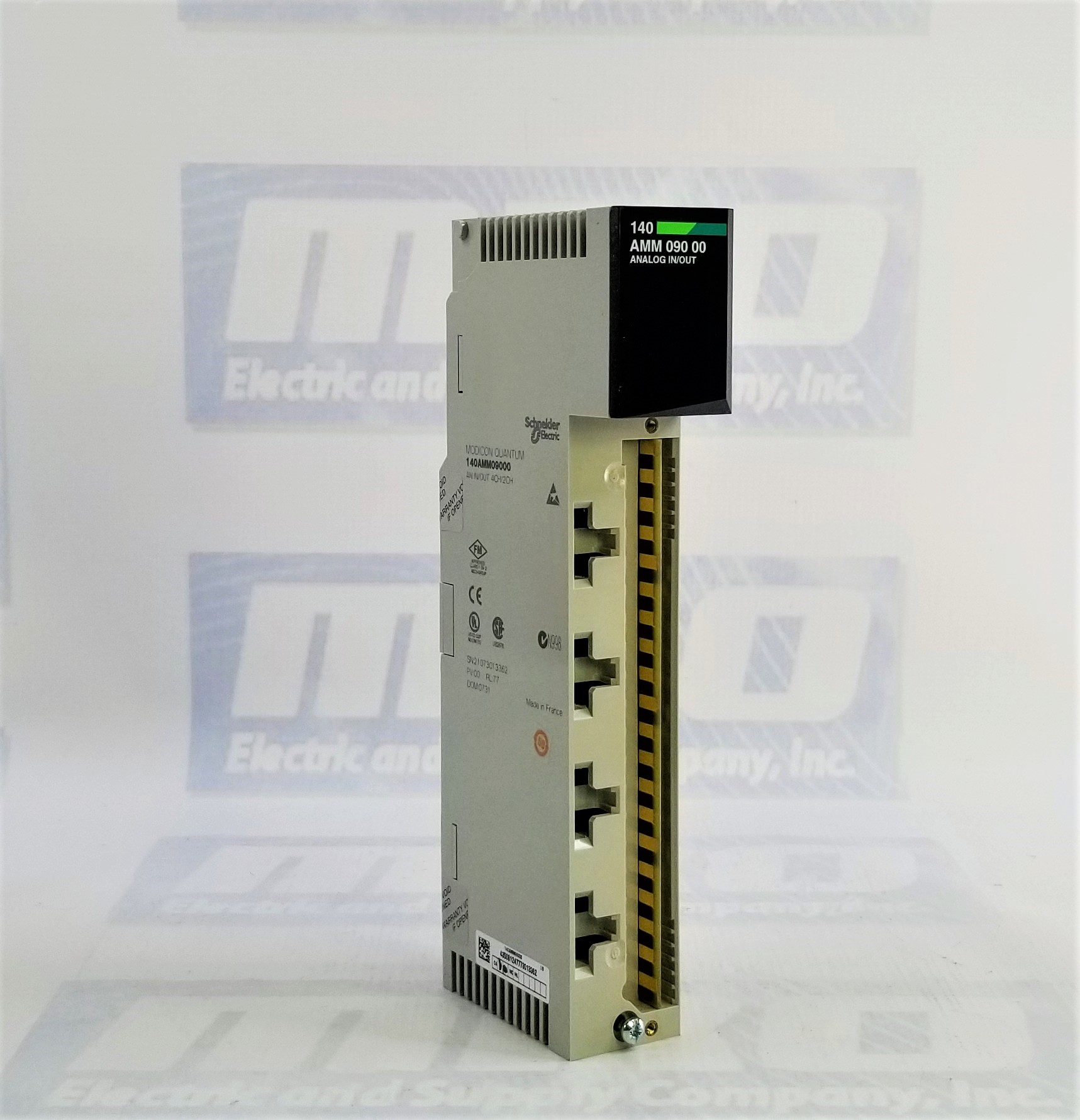

Schneider Electric 140AMM09000

MODICON QUANTUM ANALOG INPUT OUTPUT MODULE - 4 I - 2 O
5/5
2 ratings

Select Condition

Refurbished

Request Quote

New

1 in stock

$2,695.00

Request a formal quote

  • Ships Today
  • 2 Year Warranty
  • Free Shipping
Part Number140AMM09000
ManufacturerSchneider Electric
TypeI/O Modules
Model #140-AMM-090-00
Warranty2 Year
Module formatStandard
Type of filterSingle pole low pass - 3 dB at 21 Hz +/- 20 % input
circuit
I/O modularity6 channels
Addressing requirement2 output words
5 input words
Analogue input number4
Analogue input typeUnipolar voltage 0...5 V 15 bits DC
Unipolar voltage 0...10 V 16 bits DC
Unipolar offset voltage 1...5 V 14 bits DC
Unipolar offset current 4...20 mA 14 bits DC
Unipolar current 0...20 mA 15 bits DC
Bipolar voltage +/- 5 V 15 bits DC
Bipolar voltage +/- 10 V 16 bits DC
Bipolar current +/- 20 mA 15 bits DC
Absolute maximum input+/- 50 V voltage
+/- 25 mA current
Input impedance> 250 Ohm current
> 10 MOhm voltage
Offset+/- 0.0014 % of full scale maximum/°C 0...60 °C input circuit
Gain shift+/- 0.002 of full scale maximum 0...60 °C input circuit
Common mode rejection> 80 dB 50/60 Hz input circuit
Analogue output number2
Analogue output range4...20 mA
Analogue output resolution12 bits
Loop voltage7...30 V DC output circuit
<= 60 V DC with external resistance output circuit
Voltage drop7...30 V DC 20 mA
Setting time900 µs to +/- 0.1 % of the final value output circuit
External power requirement7...30 V output circuit
Absolute accuracy error+/- 0.20 % of full scale at 25 °C output circuit
+/- 0.05 % of full scale maximum at 25 °C input circuit
+/- 0.03 % at 25 °C input circuit
+/- 0.007 %/°C of full scale maximum at 0...60 °C output circuit
+/- 0.004 % of full scale at 0...60 °C output circuit
LinearityMonotonic +/- 1 LSB output
Monotonic +/- 1 LSB input
2.4 % over range, and - 9.6 % under range current
2.4 % over and under range voltage
Update time320 ms input circuit
15 ms output circuit
Fault typeStatus byte output circuit
Overtacking scale (unipolar) input circuit
Open circuit input/output circuit
Isolation between channels750 V DC for 1 minute
500 V AC for 1 minute
Isolation between channels and bus750 V DC for 1 minute
500 V AC for 1 minute
Isolation between input channels and output chan-750 V for 1 minute
nels500 V for 1 minute
MarkingCE
Local signalling6 LEDs red channel fault
6 LEDs green channel is turned on
1 LED red external fault
1 LED green bus communication is present (Active)
Bus current requirement350 mA

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 140AMM09000 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 140AMM09000 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 140AMM09000, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped today?

  • Order within the next 8 hours and 4 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 140AMM09000 for credit when ordering from MRO Electric

Which of the Quantum analog output modules are designed with only one D/A per channel?

  • The part numbers that include one D/A per channel are: 140ACO02000, 140AVO02000, and the 140AMM09000.
MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric 140AMM09000 Overview

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry I/O Modules from other manufacturers such as Modicon and ABB.

Schneider Electric 140AMM09000

At the forefront of the Modicon Quantum automation platform, the Schneider Electric 140AMM09000 emerges as a sophisticated Analog Input/Output module, meticulously crafted to meet the exacting demands of industrial automation. This detailed technical description aims to unravel the intricate specifications and features that define the 140AMM09000, providing a comprehensive understanding of its capabilities and the seamless integration it offers to industrial processes.

Product Overview

Part Number: 140AMM09000

Manufacturer: Schneider Electric

Type: Input/Output Analog Module

Analog Input Specifications

The 140AMM09000 boasts an impressive array of 4 Analog Input channels, each accommodating a variety of input types. From the precision of bipolar current (+/- 20 mA) to the versatility of unipolar voltage (0...10 V), this module is engineered for flexibility in handling diverse sensor and device inputs. The absolute maximum input tolerances ensure resilience, with input impedance exceeding 10 MOhm for voltage and surpassing 250 Ohm for current.

Analog Output Specifications

In the realm of Analog Output, the module offers 2 channels within a range of 4...20 mA. Precision is paramount, with a resolution of 12 bits ensuring the accurate translation of control signals into analog output. The module's loop voltage, ranging from 0 to 60 V DC with external resistance, and external power requirements are meticulously optimized to enhance compatibility and efficiency.

Performance Metrics

In terms of performance, the 140AMM09000 sets a high standard. With an absolute accuracy error of +/- 0.004% of full scale within the operational temperature range of 32 to 140 °F (0 to 60 °C), this module ensures consistently reliable readings. Linearity, both in voltage and current output, is maintained at 2.4% over and under range for voltage and -9.6% under range for current, ensuring precise and dependable performance.

Update Time and Fault Handling

The module strikes a balance between speed and precision, boasting an update time of 15 ms for analog output channels and 320 ms for analog input channels. Faults, including open circuits and overtaking scale issues, are handled efficiently, minimizing downtime and ensuring operational continuity in industrial processes.

Isolation and Safety Features

Safety and signal integrity are paramount, and the 140AMM09000 achieves this through isolation. The module provides 500 V AC and 750 V DC isolation for various channel configurations, ensuring secure and reliable signal transmission. Local signaling, facilitated by LEDs, offers insights into bus communication status, external faults, and individual channel statuses, facilitating efficient diagnostics and monitoring.

Environmental Considerations

Certifications from FM Class 1 Division 2, along with adherence to standards such as UL 508 and CSA C22.2 No 142, underscore the module's ability to withstand the rigors of industrial environments. Resistance to electromagnetic fields and operational temperature ranges from 32 to 140 °F (0 to 60 °C) ensure reliable and consistent performance across diverse conditions.

Ordering and Shipping Details

Categorized under 18155-QUANTUM I/O & POWER SUPPLIES, the 140AMM09000 is shipped as a standard module with a net weight of 0.66 lb(US) (0.3 kg). This ensures ease of handling and integration into existing industrial setups.

Conclusion

In conclusion, the Schneider Electric 140AMM09000 stands as a pinnacle of precision and reliability within the Modicon Quantum automation platform. Its versatile Analog Input/Output capabilities, coupled with high-performance metrics and robust safety features, make it an indispensable component for enhancing the efficiency and accuracy of industrial automation processes. Whether in monitoring sensors or controlling actuators, the 140AMM09000 epitomizes Schneider Electric's commitment to providing cutting-edge solutions that address the evolving needs of industrial automation with unparalleled precision and reliability.
