140AMM09000C

140AMM09000C

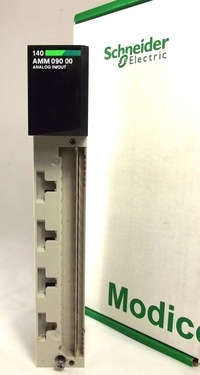

Analog Input Output Module Modicon Quantum - 4 I - 2 O
Available - call for stock

2 year warranty

Categories

ManufacturerSchneider Electric
SeriesModicon Quantum
Module formatStandard
Type of filterSingle pole low pass - 3 dB at 21 Hz +/- 20 % input
circuit
I/O modularity6 channels
Addressing requirement2 output words
5 input words
Analogue input number4
Analogue input typeUnipolar voltage 0...5 V 15 bits DC
Unipolar voltage 0...10 V 16 bits DC
Unipolar offset voltage 1...5 V 14 bits DC
Unipolar offset current 4...20 mA 14 bits DC
Unipolar current 0...20 mA 15 bits DC
Bipolar voltage +/- 5 V 15 bits DC
Bipolar voltage +/- 10 V 16 bits DC
Bipolar current +/- 20 mA 15 bits DC
Absolute maximum input+/- 50 V voltage
+/- 25 mA current
Input impedance> 250 Ohm current
> 10 MOhm voltage
Offset+/- 0.0014 % of full scale maximum/°C 0...60 °C input circuit
Gain shift+/- 0.002 of full scale maximum 0...60 °C input circuit
Common mode rejection> 80 dB 50/60 Hz input circuit
Analogue output number2
Analogue output range4...20 mA
Analogue output resolution12 bits
Loop voltage7...30 V DC output circuit
<= 60 V DC with external resistance output circuit
Voltage drop7...30 V DC 20 mA
Setting time900 µs to +/- 0.1 % of the final value output circuit
External power requirement7...30 V output circuit
Absolute accuracy error+/- 0.20 % of full scale at 25 °C output circuit
+/- 0.05 % of full scale maximum at 25 °C input circuit
+/- 0.03 % at 25 °C input circuit
+/- 0.007 %/°C of full scale maximum at 0...60 °C output circuit
+/- 0.004 % of full scale at 0...60 °C output circuit
LinearityMonotonic +/- 1 LSB output
Monotonic +/- 1 LSB input
2.4 % over range, and - 9.6 % under range current
2.4 % over and under range voltage
Update time320 ms input circuit
15 ms output circuit
Fault typeStatus byte output circuit
Overtacking scale (unipolar) input circuit
Open circuit input/output circuit
Isolation between channels750 V DC for 1 minute
500 V AC for 1 minute
Isolation between channels and bus750 V DC for 1 minute
500 V AC for 1 minute
Isolation between input channels and output chan-750 V for 1 minute
nels500 V for 1 minute
MarkingCE
Local signalling6 LEDs red channel fault
6 LEDs green channel is turned on
1 LED red external fault
1 LED green bus communication is present (Active)
Bus current requirement350 mA
Our core exchange program offers you credit for your faulty items, please ask about getting an RMA to send your core in with for credit. You can also send in your unit to be repaired, our standard turnaround for repairs is 5-7 days, and all of our repaired items look like new, and come with a 1 year warranty.

This product weights 1lb. Want it shipped tomorrow?

  • Order within the next 22 hours and 24 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

What is the product warranty?

  • 140AMM09000C comes with a 2 year warranty
  • Ask about exchanging your faulty 140AMM09000C for credit when ordering from MRO Electric
