MANUFACTURER: Schneider Electric

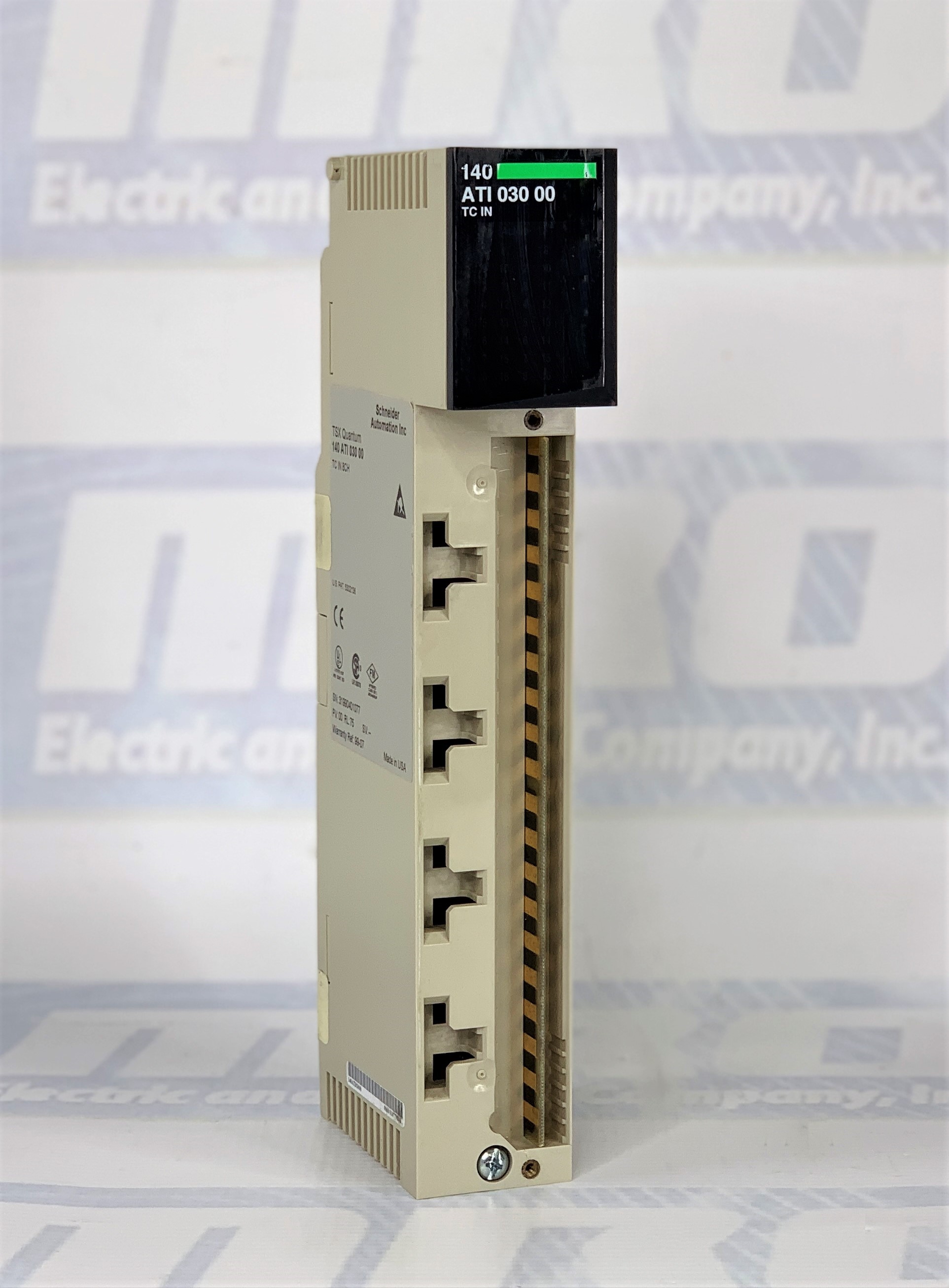

DESCRIPTION: Analog Input Module - 8 I Thermocouple
PRODUCT TYPE INFO: Modicon Quantum
14 in stock
Free Shipping
2 Year warranty
Part Number | 140ATI03000 |
Manufacturer | Schneider Electric |
Type | I/O Modules |
Model # | 140-ATI-030-00 |
Warranty | 2 Year |
Module format | Standard |
Type of filter | Single pole low pass - 3 dB at 20 Hz |
Notch filter - 3 dB at 50/60 Hz | |
Analogue input number | 8 |
Addressing requirement | 10 input words |
Analogue input type | Thermocouple - 50...1665 °C thermocouple S |
Thermocouple - 50...1665 °C thermocouple R | |
Thermocouple - 270...400 °C thermocouple T | |
Thermocouple - 270...1370 °C thermocouple K | |
Thermocouple - 270...1000 °C thermocouple E | |
Thermocouple - 210...760 °C thermocouple J |
Analogue input resolution | 16 bits |
Input impedance | > 1 MOhm |
Absolute accuracy error | +/- 4 °C plus + 0.1 % of reading thermocouple S |
+/- 4 °C plus + 0.1 % of reading thermocouple R | |
+/- 2 °C plus + 0.1 % of reading thermocouple T | |
+/- 2 °C plus + 0.1 % of reading thermocouple K | |
+/- 2 °C plus + 0.1 % of reading thermocouple J | |
+/- 2 °C plus + 0.1 % of reading thermocouple E | |
Linearity error | 1 °C, 0.1 °C, 1 F, 0.1 F - 50...1665 °C |
1 °C, 0.1 °C, 1 F, 0.1 F - 270...400 °C | |
1 °C, 0.1 °C, 1 F, 0.1 F - 270...1370 °C | |
1 °C, 0.1 °C, 1 F, 0.1 F - 270...1000 °C | |
1 °C, 0.1 °C, 1 F, 0.1 F - 210...760 °C | |
Accuracy drift according to temperature | 0.15 µV/°C + 0.0015 % of reading/°C max low level voltage |
Common mode rejection | >= 120 dB 50/60 Hz |
Isolation between channels and bus | 2500 V DC for 60 s |
1780 V AC for 60 s | |
Isolation between channels | 220 V AC |
300 V DC | |
Update time | 1000 ms |
Fault type | Overtacking scale |
Broken wire | |
Marking | CE |
Cold junction compensation | Internal 0...60 °C |
Local signalling | 8 LEDs red channel fault |
8 LEDs green channel is turned on | |
1 LED red external fault | |
1 LED green bus communication is present (Active) | |
Bus current requirement | 280 mA |
Power dissipation in W | 1.5 W |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed 140ATI03000 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this 140ATI03000 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty 140ATI03000, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped tomorrow?
Ask about exchanging your faulty 140ATI03000 for credit when ordering from MRO Electric
Can a 140ATI03000 be set to read mVolts?
The Schneider Electric Part Number 140ATI03000 is an I/O module designed for various industrial applications. Manufactured by Schneider Electric, a renowned company in the field of electrical equipment and automation solutions, this module offers reliable performance and versatile functionality. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry I/O Modules from other manufacturers such as Modicon and ABB.
The 140ATI03000 module is built in a standard format, making it compatible with a wide range of systems and setups. It is equipped with a single pole low-pass filter, providing a 3 dB cutoff at 20 Hz, as well as a notch filter with a 3 dB cutoff at 50/60 Hz. These filters help in eliminating unwanted noise and interference from the input signals, ensuring accurate and reliable data acquisition.
With eight analog input channels, the module offers flexibility in measuring and monitoring various thermocouple inputs. It supports different thermocouple types and their corresponding temperature ranges. These include thermocouple S (-50 to 1665 °C), thermocouple R (-50 to 1665 °C), thermocouple T (-270 to 400 °C), thermocouple K (-270 to 1370 °C), thermocouple E (-270 to 1000 °C), and thermocouple J (-210 to 760 °C). This broad temperature range capability allows for the module's application in diverse industrial environments.
The module provides high-resolution analog input with 16 bits of resolution, ensuring precise measurement and control. It has an input impedance greater than 1 MOhm, enabling accurate signal capture without affecting the integrity of the measured data.
When it comes to accuracy, the 140ATI03000 module demonstrates impressive performance. It has an absolute accuracy error that varies depending on the thermocouple type used. For thermocouples S and R, the error is within +/- 4 °C plus 0.1% of the reading. For thermocouples T, K, J, and E, the error is within +/- 2 °C plus 0.1% of the reading. The module also boasts excellent linearity with an error of 1 °C or 0.1 °C (depending on the temperature range).
Temperature changes can affect measurement accuracy, but the 140ATI03000 module compensates for this with its accuracy drift feature. It experiences a maximum low-level voltage drift of 0.15 µV/°C plus 0.0015% of the reading/°C, minimizing the impact of temperature variations on measurement precision.
The module provides robust common-mode rejection, surpassing 120 dB at 50/60 Hz. This high rejection level helps eliminate common-mode noise and interference, ensuring clean and accurate signals.
Safety is a crucial aspect of industrial applications, and the 140ATI03000 module incorporates comprehensive isolation features. It offers isolation between channels and the bus, with a withstand voltage of 2500 V DC for 60 seconds and 1780 V AC for 60 seconds. Furthermore, it provides isolation between channels with 220 V AC and 300 V DC ratings, enhancing safety and protection against potential electrical hazards.
The module features local signaling through LEDs, with eight red LEDs indicating channel faults and eight green LEDs indicating that the respective channels are turned on. Additionally, there are two LEDs: one red LED indicating an external fault and one green LED indicating active bus communication.
With a bus current requirement of 280 mA and a power dissipation of 1.5 W, the module operates efficiently while minimizing power consumption.
The Schneider Electric Part Number 140ATI03000 is marked with the CE certification, indicating compliance with European safety standards.
In conclusion, the 140ATI03000 I/O module from Schneider Electric is a versatile and reliable device designed for industrial applications. With its multiple analog input channels, thermocouple compatibility, high resolution, accuracy, and robust isolation features, this module provides accurate and precise data acquisition capabilities. Its standard format, comprehensive filtering, and local signaling make it a valuable component in various industrial automation systems.
