MANUFACTURER: Schneider Electric
DESCRIPTION: Analog Input 8 I Thermocouple
PRODUCT TYPE INFO: Modicon Quantum
|Type of filter||Notch filter - 3 dB at 50/60 Hz|
|Single pole low pass - 3 dB at 20 Hz|
|Analogue input number||8|
|Addressing requirement||10 input words|
|Analogue input type||Thermocouple - 210...760 Â°C thermocouple J|
|Thermocouple - 270...1000 Â°C thermocouple E|
|Thermocouple - 270...1370 Â°C thermocouple K|
|Thermocouple - 270...400 Â°C thermocouple T|
|Thermocouple - 50...1665 Â°C thermocouple R|
|Thermocouple - 50...1665 Â°C thermocouple S|
|Analogue input resolution||16 bits|
|Input impedance||> 1 MOhm|
|Absolute accuracy error||+/- 2 Â°C plus + 0.1 % of reading thermocouple J|
|+/- 2 Â°C plus + 0.1 % of reading thermocouple K|
|+/- 2 Â°C plus + 0.1 % of reading thermocouple T|
|+/- 4 Â°C plus + 0.1 % of reading thermocouple R|
|+/- 4 Â°C plus + 0.1 % of reading thermocouple S|
|+/- 2 Â°C plus + 0.1 % of reading thermocouple E|
|Linearity error||1 Â°C, 0.1 Â°C, 1 F, 0.1 F - 210...760 Â°C|
|1 Â°C, 0.1 Â°C, 1 F, 0.1 F - 270...1000 Â°C|
|1 Â°C, 0.1 Â°C, 1 F, 0.1 F - 270...1370 Â°C|
|1 Â°C, 0.1 Â°C, 1 F, 0.1 F - 270...400 Â°C|
|1 Â°C, 0.1 Â°C, 1 F, 0.1 F - 50...1665 Â°C|
|Accuracy drift according to||0.15 ÂµV/Â°C + 0.0015 % of reading/Â°C max low level voltage|
|Common mode rejection||>= 120 dB 50/60 Hz|
|Isolation between channels and bus||1780 V AC for 60 s|
|2500 V DC for 60 s|
|Isolation between channels||300 V DC|
|220 V AC|
|Update time||1000 ms|
|Fault type||Broken wire|
|Cold junction compensation||Internal 0...60 Â°C|
|Local signalling||1 LED green bus communication is present (Active)|
|1 LED red external fault|
|8 LEDs green channel is turned on|
|8 LEDs red channel fault|
|Bus current requirement||280 mA|
|Power dissipation in W||1.5 W|
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed 140ATI03000C to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this 140ATI03000C we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty 140ATI03000C, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty 140ATI03000C for credit when ordering from MRO Electric

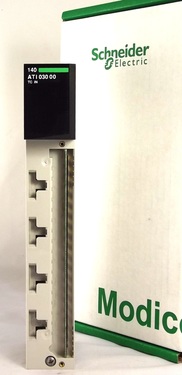

The 140ATI03000C is a Analog Input 8 I Thermocouple that is manufactured by Schneider Electric. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. All of the products come with a 2 year warranty from MRO Electric. We also carry I/O Modules from other manufacturers such as Modicon and ABB.
Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or sending us an email at firstname.lastname@example.org, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like 140ATI03000C, take a look at more from our I/O Modules line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our 140ATI03000C products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
