MANUFACTURER: schneider electric
DESCRIPTION: Rio Drop Adaptor Module - 2 Connectors With Redundant Cable
PRODUCT TYPE INFO: Modicon Quantum
| Part Number | 140CRA93200 |
| Manufacturer | Schneider Electric |
| Series | Modicon Quantum |
| Model # | 140CRA93200 |
| Alternate Model | 140-CRA-932-00 |
| Type | IO Modules |
| Warranty | 2 Year |
| SAT connector | 1 female F type |
| Product or component type | RIO drop adaptor module |
| Number of I/O expansion module | <= 27 |
| Type of cable | Coaxial 75 Ohm |
| Transmission rate | 1544 Mbit/s |
| Dynamic range | 35 dB |
| Isolation voltage | 500 V DC coaxial center and ground |
| Electrical connection | 2 female connectors F elbowed with redundant cable |
| Diagnostics startup | Executive checksum |
| Power up and runtime | |
| RAM address/data | |
| Power dissipation in W | 3.8 W 2 channels |
| Bus current requirement | 750 mA 2 channels |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed 140CRA93200 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this 140CRA93200 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty 140CRA93200, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped tomorrow?
Ask about exchanging your faulty 140CRA93200 for credit when ordering from MRO Electric
Can I use Safety IO modules in an RIO drop?
Additional Information
The 140CRA93200 is a Remote I/O Head dual channel module in the Modicon Quantum series. It is designed for installation in the same backplane along with the controlling CPU modules. This modules transfers data bi-directionally between two modules, the PCU and RIO drop modules which are in separate backplanes. To interconnect this RIO Head module, a coaxial cable network is used along with at least one other RIO drop modules.
The Modicon 140CRA93200 requires 750 mA Bus current. The typical power dissipation is 3 W. There is one ma CRPs supported for this module. With 31 drops, this module works with Quantum 200 Series, 500 Series, 800 Series or SY/MAX (any mix). There are 64 in words/drops and 64 out words/drops.
This module has 2 ports/drop, 32 ports (16 drops) max and requires the use of: AS-P892-000 AS-J892-101/102 or AS-J290-0X0 at the RIO drops.
The Modicon 140CRA93200 Remote I/O Head uses 4 LED indicators. These indicators are Ready, Com Act, Error A, and Error B.

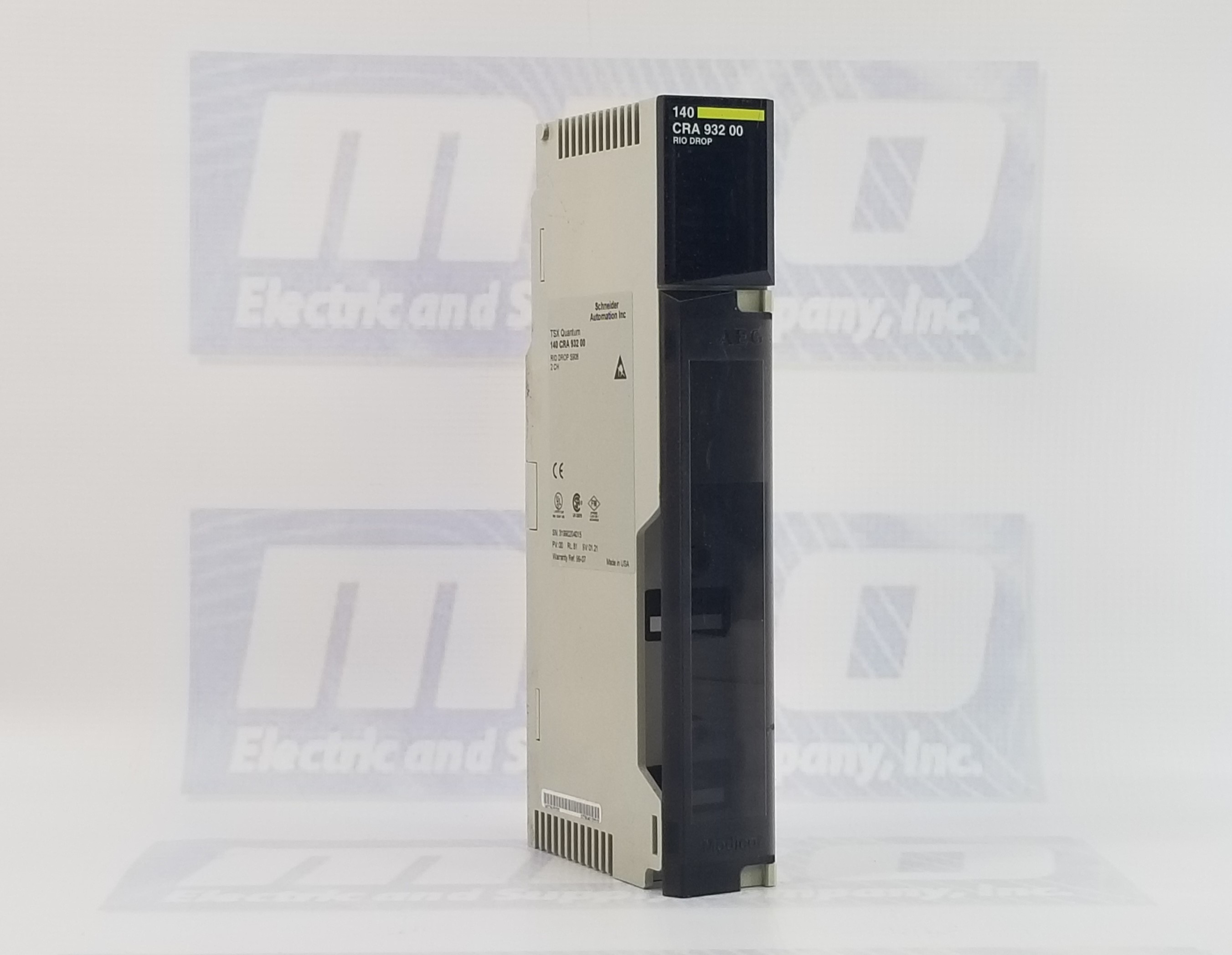

The front of the module at the top is the LED area. Under the LED area is the ROP Coax connector area with Connector A and Connector B. On the side is the version label. The front has a removable hinged door.
This module is used within a local Quantum I/O station. To insert the 140CRA93200 in the local station the first step is to call the Bus Editor and then mark a free slot in the station with the left mouse button. Once the mouse is pointed on the free slot right click to a shortcut menu and choose new device.
The Modicon 140CRA93200 comes with a two-year warranty.
The 140CRA93200 is a Rio Drop Adaptor Module - 2 Connectors With Redund... that is manufactured by Schneider Electric. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. All of the products in the modicon-quantum line come with a 2 year warranty from MRO Electric. We also carry Accessories from other manufacturers such as Modicon and ABB.
Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or sending us an email at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like 140CRA93200, take a look at more from our Robotics line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our 140CRA93200 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
