MANUFACTURER: schneider electric
DESCRIPTION: Rio Head-End Adaptor- 1 Connector With Single Cable
PRODUCT TYPE INFO: Modicon Quantum
16 in stock
Ships Today
Free Shipping
2 Year warranty
Part Number | 140CRP93100 |
Manufacturer | Schneider Electric |
Type | I/O Modules |
Model # | 140-CRP-931-00 |
Warranty | 2 Year |
Module format | Standard |
Product or component type | RIO head-end adaptor module |
Product compatibility | Quantum 200/500/800 series |
Symax (any mix) | |
Drops/Network | <= 31 |
I/O words/drop | 64 I/64 O |
Type of cable | Coaxial 75 Ohm |
Transmission rate | 1544 Mbit/s |
Dynamic range | 35 dB |
Isolation voltage | 500 V DC coaxial center and ground |
Electrical connection | 1 female connector F elbowed with single cable |
Diagnostics startup | LAN controller check |
Memory check | |
Power up | |
Power dissipation in W | 3 W 1 channel |
Marking | CE |
Bus current requirement | 600 mA 1 channel |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed 140CRP93100 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this 140CRP93100 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty 140CRP93100, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty 140CRP93100 for credit when ordering from MRO Electric

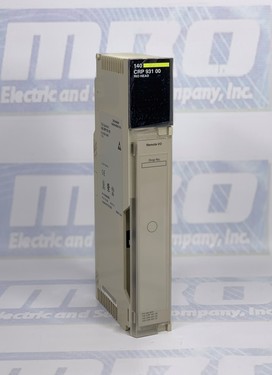

The Modicon 140CRP93100 RIO head-end adaptor module is manufactured by Schneider Electric for use on the Modicon Quantum platform to fulfilling the needs of your automation line. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry I/O Modules from other manufacturers such as Modicon and ABB.
The 140CRP93100 is used in applications that use remotely mounted I/O. It critically contributes results to Quantum remote I/O architecture solutions. You will benefit from the architecture of this module in I/O drops, a higher I/O capacity as well as connectivity to your existing Modicon I/O fittings, furnishing you with optimal remote I/O connection.
Modicon quantum automation platform
Type of architecture -Remote I/O
Single cable
S908 bus
Connects in quantum CPU head-end module
Description: Quantum RIO head adaptor (max. 1) (1)
Cable- Single coaxial
Bus current required – 600 mA
Power dissipation- 3 W
The Modicon 140CRP93100is an integral part of the Ethernet RIO architecture. It is a part of a simple daisy ring also known as a daisy train loop. The simple daisy ring is made with a local Quantum Ethernet drop, and Quantum or Modicon X80 Ethernet RIO drops containing a CRA drop adaptor using the 140CRP93100 as the RIO head-end adaptor.
You must install and use a MA0185100 T-connector 10 for the reason that it is required for each I/O drop on the system. The reason why the T-connector is required is that it allows for you to electrically isolate the drop from the trunk cable as well as protect the system from any possible impedance match that is not correct and in addition to impedance problems, it is a safety net for possible cable disconnections. Between the trunk cable and each I/O drop, there is a required minimum signal strength of 14 dB.
As the signal on the trunk crosses a T-connector it has a loss of less than 1db. There is a possible total of 35 dB from the head-end RIO CPU. The totality of the cabling system must not go above this allowable architecture limit.
If your system requires high availability, Schneider Electric has an available solution to that problem; make use of redundant cables which are available to give you protection against cable breaks. It also allows a safeguard from any possible damaged connectors. In that way, when two cables are connected between the host and each drop, you can have a break in the first cable and that break will not disrupt your communication. If you do happen to have a cable break, when that occurs you will notice the status bit is set to 1.
That will indicate to you that there is a problem drop or a cable that has some sort of fault. If you are interested in preventive maintenance, you will find the system also provides counter values. This is in place for all communication transactions to all drops. If you find high counter values on a cable in any specific drop, this could indicate to you that there are problems with the connection. With this high level of forethought, you will be able to identify the work that will correct the problem and then be able to initiate a scheduled time to react before you are dealing with unwanted downtime. That translates into savings for you. Savings on time and energy will inevitably land you economic savings.
Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like 140CRP93100, take a look at more from our I/O Modules line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our 140CRP93100 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
