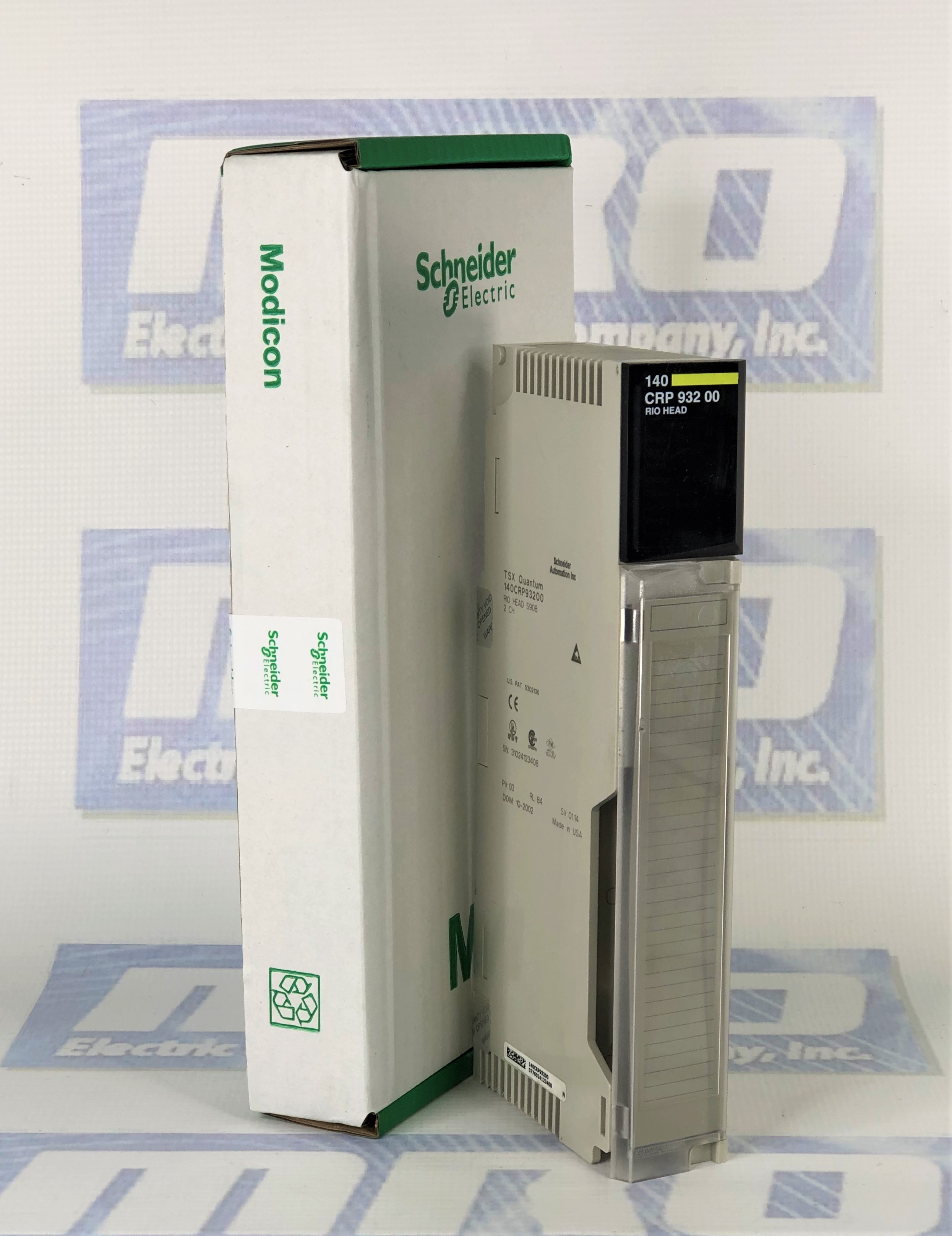

MODICON QUANTUM RIO HEAD-END ADAPTOR MODULE- 2 CONNECTORS WITH REDUNDANT CABLE
| Part Number | 140CRP93200 |
| Manufacturer | Schneider Electric |
| Type | I/O Modules |
| Model # | 140-CRP-932-00 |
| Warranty | 2 Year |
| Module format | Standard |
| Product or component type | RIO head-end adaptor module |
| Product compatibility | Quantum 200/500/800 series |
| Symax (any mix) | |
| Drops/Network | <= 31 |
| I/O words/drop | 64 I/64 O |
| Type of cable | Coaxial 75 Ohm |
| Transmission rate | 1544 Mbit/s |
| Dynamic range | 35 dB |
| Isolation voltage | 500 V DC coaxial center and ground |
| Electrical connection | 2 female connectors F elbowed with redundant cable |
| Diagnostics startup | LAN controller check |
| Memory check | |
| Power up | |
| Power dissipation in W | 3 W 2 channels |
| Marking | CE |
| Bus current requirement | 750 mA 2 channels |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed 140CRP93200 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this 140CRP93200 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty 140CRP93200, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty 140CRP93200 for credit when ordering from MRO Electric
The Schneider Electric 140CRP93200 is a RIO (Remote Input/Output) head-end adaptor module designed for use with Quantum 200/500/800 series and Symax systems in industrial automation applications. As a standard-format module, it plays a crucial role in communication between a Quantum processor and remote I/O drops, ensuring seamless data exchange within an automation system. This module is engineered for high performance, offering a transmission rate of 1544 Mbit/s over 75-ohm coaxial cables, making it a reliable solution for demanding industrial environments.
With a dynamic range of 35 dB and an isolation voltage of 500 V DC between the coaxial center and ground, the 140CRP93200 guarantees strong signal integrity and protection against electrical interference. The module supports up to 31 drops per network, with 64 input and 64 output words per drop, providing substantial capacity for complex automation setups. It features two female F-elbowed connectors with redundant cable capability, enhancing reliability and reducing the risk of communication failures.
The 140CRP93200 is built with robust diagnostic capabilities to ensure efficient operation. During startup, the module conducts a LAN controller check, memory check, and power-up diagnostics, identifying potential issues before they impact system performance. Its power dissipation is only 3W across two channels, making it an energy-efficient choice. Additionally, the module adheres to CE marking standards, ensuring compliance with industry regulations.
Schneider Electric designed this module for seamless integration into Quantum and Symax systems, making it ideal for businesses looking to expand or upgrade their automation networks. MRO Electric and Supply offers this product with a 2-year warranty, free shipping, and immediate availability, ensuring that industries can access and implement it without delays.
What is the primary function of the 140CRP93200 module?
The 140CRP93200 is an RIO (Remote I/O) head-end adaptor module that facilitates communication between a Quantum processor, and remote I/O drops in an automation system.
What automation systems are compatible with this module?
This module is compatible with Schneider Electric's Quantum 200/500/800 series and Symax systems, allowing flexible integration into existing setups.
How many remote I/O drops can this module support?
The 140CRP93200 supports up to 31 drops per network, making it ideal for large-scale automation systems requiring extensive I/O configurations.
What type of cable is required for installation?
This module requires a 75-ohm coaxial cable, which ensures high-speed, reliable data transmission.
What is the module's data transmission rate?
The 140CRP93200 operates at a transmission rate of 1544 Mbit/s, providing fast and efficient communication within the automation network.
Does this module include built-in diagnostics?
Yes, the module performs several startup diagnostics, including LAN controller checks, memory checks, and power-up diagnostics, ensuring proper functionality before operation.
What is the power dissipation of the module?
The 140CRP93200 dissipates 3W across two channels, making it an energy-efficient solution for industrial applications.
What voltage isolation does the module provide?
The module features a 500 V DC isolation voltage between the coaxial center and the ground, protecting against electrical interference.
What is the bus's current requirement for this module?
The module requires 750 mA across two channels, ensuring stable and efficient power usage within the system.
Is the 140CRP93200 available for immediate purchase?
Yes, MRO Electric and Supply offers the 140CRP93200 with free shipping and immediate availability. It is also backed by a 2-year warranty for added peace of mind.
