MANUFACTURER: Schneider Electric
DESCRIPTION: Discrete Input Module - 16 I - 115 V AC - 16 Channels
PRODUCT TYPE INFO: Modicon Quantum
28 in stock
Ships Today
Free Shipping
2 Year warranty
Part Number | 140DAI54000 |
Manufacturer | Schneider Electric |
Type | I/O Modules |
Model # | 140-DAI-540-00 |
Warranty | 2 Year |
Module format | Standard |
Range of product | Modicon Quantum automation platform |
Product or component type | VAC discrete input modules |
Software name | Concept |
ProWORX 32 | |
Unity Pro | |
Discrete input number | 16 |
Group of channels | 16 |
Addressing requirement | 1 input word |
Discrete input voltage | 115 V AC |
Input current | <= 13.2 mA 47...53 Hz |
<= 11.1 mA 57...63 Hz | |
Voltage state1 guaranteed | 85...132 V AC at 47...53 Hz |
79...132 V AC at 57...63 Hz | |
Voltage state 0 guaranteed | 0...20 V AC at 47...53 Hz |
0...20 V AC at 57...63 Hz | |
Input impedance | 14400 Ohm capacitive at 47...53 Hz |
12000 Ohm capacitive at 57...63 Hz | |
Network frequency limits | 47...63 Hz |
Leakage current | <= 2.1 mA |
Absolute maximum input | 200 V 1 cycle |
156 V 10 s | |
132 V continuous | |
Response time | 7.3...12.3 ms On-Off |
4.9...0.75 ms x line cycle Off-On | |
Isolation between channels | 1780 Vrms for 1 minute |
Isolation between channels and bus | 1780 Vrms for 1 minute |
Bus current requirement | 180 mA |
Power dissipation in W | <= 5.5 W |
Local signalling | 16 LEDs green input status |
1 LED red external fault detected (F) | |
1 LED green bus communication is present (Active) | |
Marking | CE |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed 140DAI54000 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this 140DAI54000 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty 140DAI54000, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty 140DAI54000 for credit when ordering from MRO Electric
The Modicon Quantum discrete input module 140 DAI 540 00 is manufactured by Schneider Electric for use on the Modicon Quantum automation platform. The Modicon 140 DAI 540 00 16 x I - 115 V AC module with 16 discrete input channels. The Quantum input module is compatible with Concept, ProWORX 32, and Unity Pro software. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry I/O Modules from other manufacturers such as Modicon and ABB.
The Modicon Quantum 140 DAI 540 00 offers a group of 16 channels with 1 input word addressing. The input current for the Quantum 140 DAI 540 00 module is 11.1 mA 57...63 Hz and 13.2 mA 47...53 Hz. The discrete input voltage for this unit is 115 V AC. The guaranteed state one voltage for the 140 DAI 540 00 is 79...132 V AC 57...63 Hz and 85...132 V AC 47...53 Hz. The zero guarantee voltage state for the Quantum 140 DAI 540 00 is 0...20 V AC, 57...63 Hz, and 0...20 V AC, 47...53 Hz. The input impedance for this module is 12000 Ohm capacitive, 57...63 Hz, and 14400 Ohm capacitive, 47...53 Hz. The network frequency limits are between 47…63 Hz. The max leakage current is 2.1 mA. The absolute maximum input for the Modicon Quantum 140 DAI 540 00 is 132 V continuous, 156 V 10 s, 200 V 1 cycle with a response time of 4.9...0.75 ms x line cycle Off-On and 7.3...12.3 ms On-Off. The isolation between channels is 1780 Vrms for 1 minute and the isolation between channels and bus is 1780 Vrms for 1 minute. The bus current requirement for the Modicon Quantum discrete input module 140 DAI 540 00 is 180 mA. The maximum power dissipation is 5.5 W.
The Modicon Quantum discrete input module 140 DAI 540 00 carries the CE marking and has a net weight of 0.68 lb.
The 140 DAI 540 00 Modicon Quantum discrete input module is equipped with LED indicators one through sixteen. The ACTIVE LED indicates green when the unit is ON and bus communication is present. LED indicators one through sixteen indicate green when an indicated point or channel is turned ON.

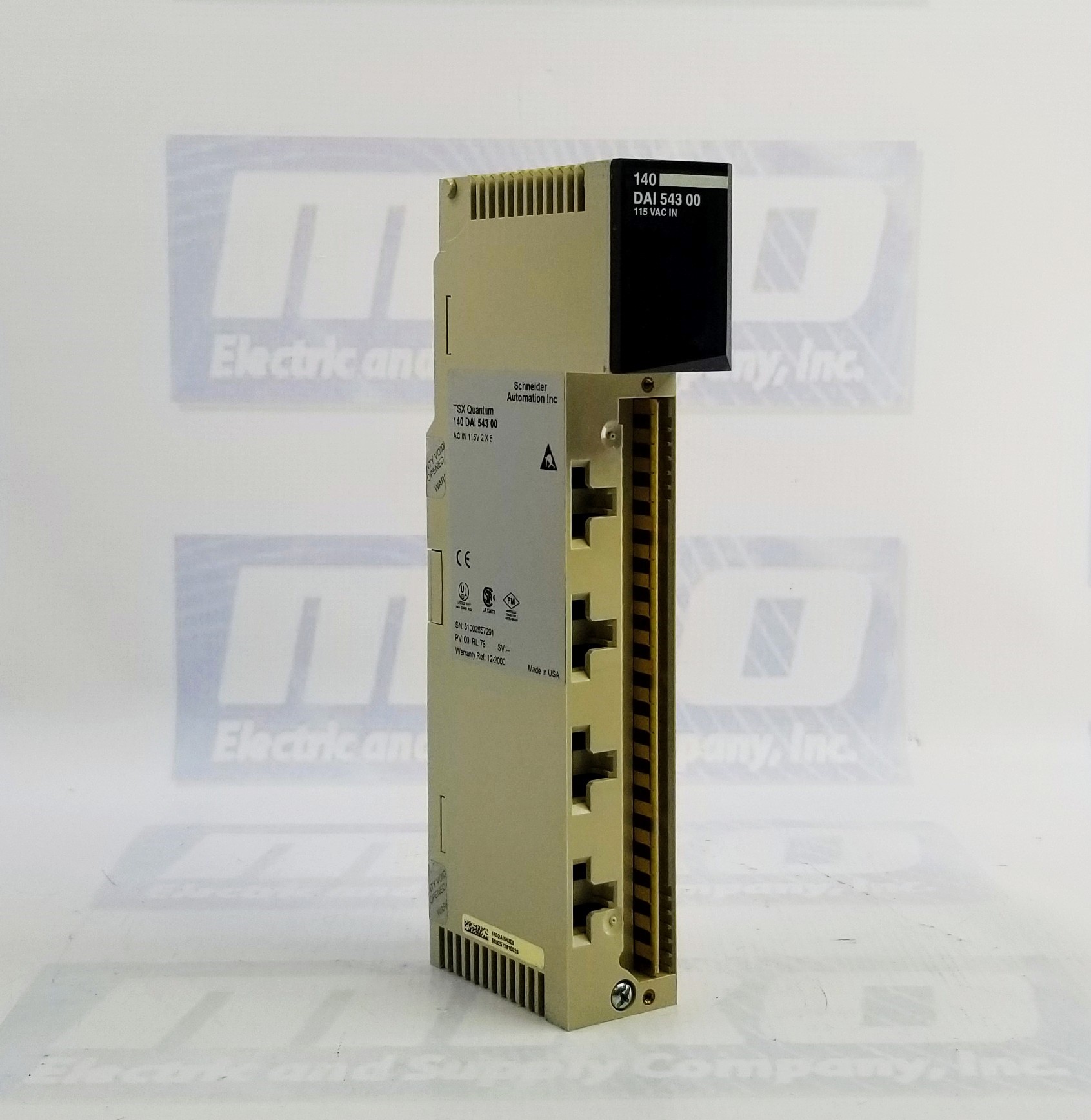

The Modicon Quantum 140 DAI 540 00 displays the color-coded module number and description at the top front of the module. The LED signaling is below the module number on the front panel. Inside a hinged door is the fuse cutout area that houses the field wiring terminal strip. The field wiring terminal strip is a separate item and must be ordered separately. There is spaced inside the hinged door that covers the field wiring strip and fuse cutouts for a customer identification label that you fold and place inside. This label is used to store customer-specific information.
Environmental Standards UL 508 CSA C22.2 No 142 apply to this unit and it also offers product certifications of FM Class 1 Division 2 CUL.
