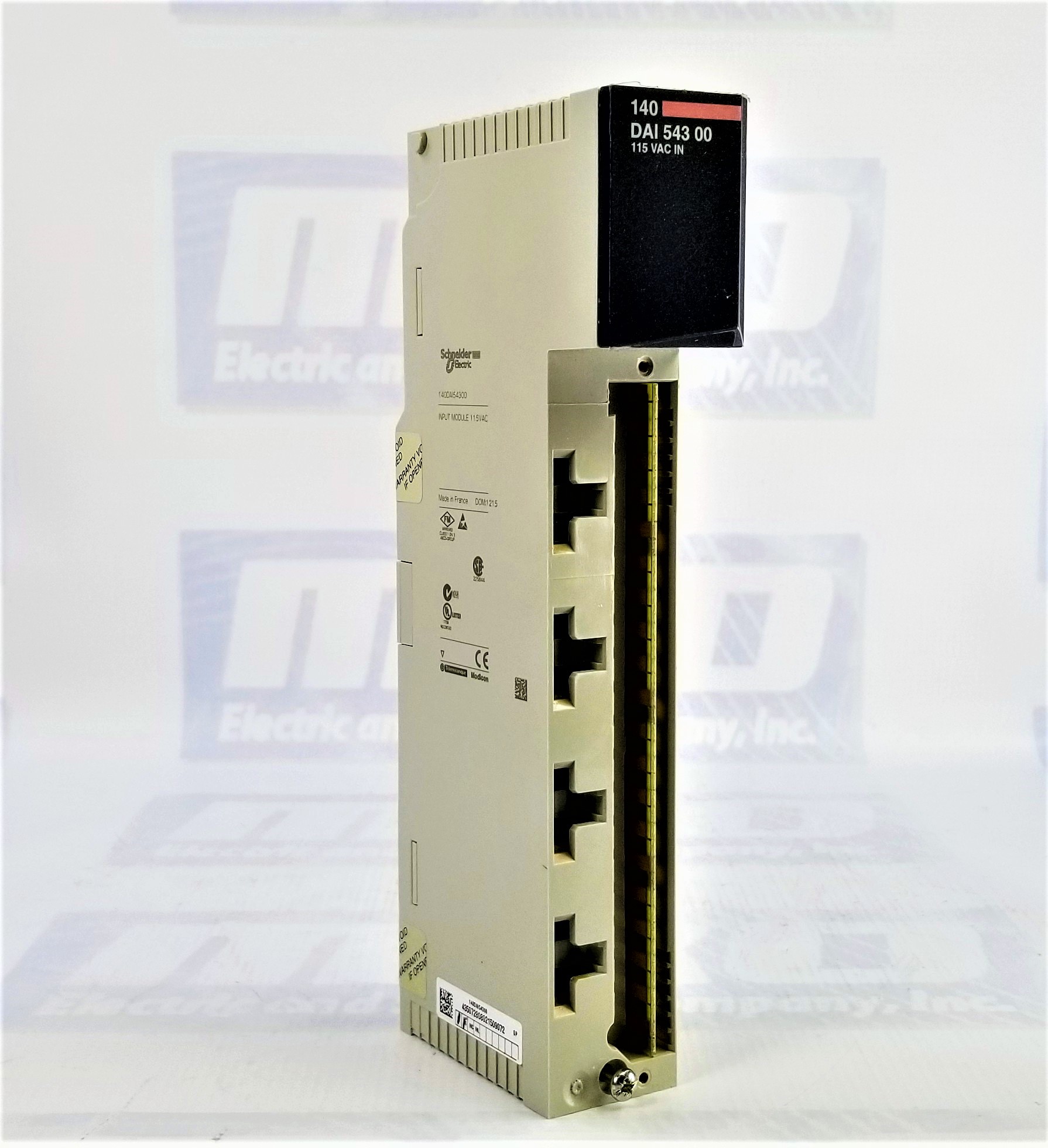

MANUFACTURER: Schneider Electric
DESCRIPTION: Discrete Input Module - 16 I - 115 V AC - 2 Channels
PRODUCT TYPE INFO: Modicon Quantum
9 in stock
Free Shipping
2 Year warranty
| Part Number | 140DAI54300 |
| Manufacturer | Schneider Electric |
| Type | I/O Modules |
| Model # | 140-DAI-543-00 |
| Warranty | 2 Year |
| Module format | Standard |
| Product or component type | VAC discrete input modules |
| Software name | Concept |
| ProWORX 32 | |
| Unity Pro | |
| Discrete input number | 16 |
| Group of channels | 2 |
| Addressing requirement | 1 input word |
| Discrete input voltage | 115 V AC |
| Input current | <= 13.2 mA 47...53 Hz |
| <= 11.1 mA 57...63 Hz | |
| Voltage state1 guaranteed | 85...132 V AC at 47...53 Hz |
| 79...132 V AC at 57...63 Hz | |
| Voltage state 0 guaranteed | 0...20 V AC at 47...53 Hz |
| 0...20 V AC at 57...63 Hz | |
| Input impedance | 14400 Ohm capacitive at 47...53 Hz |
| 12000 Ohm capacitive at 57...63 Hz | |
| Network frequency limits | 47...63 Hz |
| Leakage current | <= 2.1 mA |
| Absolute maximum input | 200 V 1 cycle |
| 156 V 10 s | |
| 132 V continuous | |
| Response time | 7.3...12.3 ms On-Off |
| 4.9...0.75 ms x line cycle Off-On | |
| Isolation between group | 1780 Vrms for 1 minute |
| Isolation between group and bus | 1780 Vrms for 1 minute |
| Bus current requirement | 180 mA |
| Power dissipation in W | <= 5.5 W |
| Local signalling | 16 LEDs green input status |
| 1 LED red external fault detected (F) | |
| 1 LED green bus communication is present (Active) | |
| Marking | CE |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed 140DAI54300 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this 140DAI54300 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty 140DAI54300, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped tomorrow?
Ask about exchanging your faulty 140DAI54300 for credit when ordering from MRO Electric
The Schneider Electric 140DAI54300 VAC Discrete Input Module is a standard-format input module designed to meet the demanding requirements of industrial control systems.
The 140DAI54300 module is designed to monitor VAC discrete input signals in industrial environments. With 16 discrete input channels grouped into two sets, it provides versatile input monitoring capabilities suitable for various applications.
Compatible with leading automation software such as Concept, ProWORX 32, and Unity Pro, the 140DAI54300 module offers seamless integration into existing automation systems. This allows for easy configuration and programming, enhancing flexibility and usability for operators.
With a discrete input voltage of 115 V AC and a voltage state guaranteed range of 85 to 132 V AC for state 1 and 0 to 20 V AC for state 0, the 140DAI54300 ensures precise and reliable monitoring of input signals. Its input impedance of 14400 Ohm capacitive at 47 to 53 Hz and 12000 Ohm capacitive at 57 to 63 Hz further enhances signal accuracy.
The 140DAI54300 module comes with built-in protections to ensure equipment and personnel safety. It features maximum input limits, leakage current protection, and isolation between group and bus, providing reliable operation and peace of mind in industrial environments.
Despite its advanced features, the 140DAI54300 module boasts low power consumption, with a power dissipation of less than or equal to 5.5 W. This ensures efficient energy use and reduces operating costs while maintaining optimal performance.
Featuring a standard module format and user-friendly interface, the 140DAI54300 is easy to integrate and install into industrial control systems. Its compact design and local signaling simplify monitoring and troubleshooting procedures, including 16 green input status LEDs and LEDs for external fault detection and bus communication status.
The 140DAI54300 module is CE-marked, indicating compliance with European safety standards and regulations. This ensures that it meets the stringent requirements for safety and reliability in industrial automation applications.
What is the Schneider Electric 140DAI54300 VAC Discrete Input Module?
The 140DAI54300 input module is designed to monitor VAC discrete input signals in industrial automation systems. It provides precise monitoring of input signals to ensure efficient and safe operation of machinery and processes.
How many discrete input channels does the 140DAI54300 module have?
The 140DAI54300 module has 16 discrete input channels grouped into two sets, allowing for versatile input signal monitoring capabilities.
What software is compatible with the 140DAI54300 module?
The 140DAI54300 module is compatible with popular automation software such as Concept, ProWORX 32, and Unity Pro. This compatibility allows for seamless integration into existing automation systems.
What is the voltage range supported by the 140DAI54300 module for discrete input signals?
The 140DAI54300 module supports a discrete input voltage of 115 V AC, with guaranteed voltage state ranges for states one and 0, ensuring precise and reliable signal monitoring.
What protections are provided by the 140DAI54300 module?
The 140DAI54300 module features built-in protections, including absolute maximum input limits, leakage current protection, and isolation between group and bus, ensuring equipment and personnel safety in industrial environments.
How is the 140DAI54300 module powered?
The 140DAI54300 module is powered by the bus, with a current bus requirement of 180 mA. This eliminates the need for external power sources and simplifies installation.
Is the 140DAI54300 module easy to install and integrate into existing systems?
The 140DAI54300 module features a standard format and user-friendly interface, making it easy to install and integrate into existing industrial control systems. Its compact design and local signaling further simplify monitoring and troubleshooting procedures.
