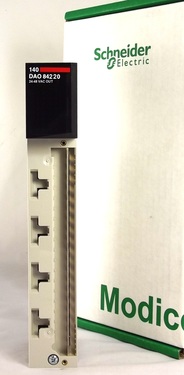

140DAO84220C

140DAO84220C

Discrete Output Module Modicon Quantum - 16 O - 20..56 V AC
Available - call for stock

2 year warranty

Categories

Part Number140DAO84220C
ManufacturerSchneider Electric
SeriesModicon Quantum
Weight1lb
TypeIO Modules
Warranty2 year
Module formatStandard
Product or component typeAC discrete output modules
Discrete output number16
Group of channels4 groups of 4 channels
Supply frequency47...63 Hz
Voltage drop1.5 V
Discrete output voltage20...56 V AC
Addressing requirement1 output word
Absolute maximum output100 Vrms 1 cycle AC
63 Vrms for 10 s AC
111 Vrms for 1.3 s AC
Maximum load current4 A rms 20...56 V per output
16 A rms per module
4 A rms per group
Surge current<= 25 A during 2 cycles per group
<= 30 A during 3 cycles per group
<= 45 A during 1 cycle per group
DV/Dt400 V/ms
Response time<= 0.5 ms at state 0 to state 1
<= 0.5 ms at state 1 to state 0
Fault indicationBlown fuse
Loss of field power
Protection typeInternal by RC filter
Internal output protection by 5 A fuse
Power dissipation1.85 + (1.1 V x total module load current)
MarkingCE
Local signalling1 LED green bus communication is present (Active)
1 LED red external fault detected (F)
16 LEDs green input status
Bus current requirement350 mA

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 140DAO84220C to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 12-month warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 140DAO84220C we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 140DAO84220C, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
