|Product or component type||AC discrete output modules|
|Discrete output number||16|
|Group of channels||4 groups of 4 channels|
|Supply frequency||47...63 Hz|
|Voltage drop||1.5 V|
|Discrete output voltage||83...253 V AC|
|Addressing requirement||1 output word|
|Absolute maximum output||400 Vrms 1 cycle AC|
|300 Vrms for 10 s AC|
|Minimum load||5 A|
|Minimum load current||4 A rms per group|
|4 A rms 85...132 V per output|
|3 A rms 170...253 V per output|
|2.5 mA rms 230 Vrms off state leakage per output|
|2 mA rms 115 Vrms off state leakage per output|
|16 A rms per module|
|1 mA rms off state leakage per output|
|Surge current||<= 45 A during 1 cycle per group|
|<= 30 A during 2 cycles per group|
|<= 30 A during 1 cycle per point|
|<= 25 A during 3 cycles per group|
|<= 20 A during 2 cycles per point|
|<= 10 A during 3 cycles per point|
|Response time||<= 0.5 ms at state 1 to state 0|
|<= 0.5 ms at state 0 to state 1|
|Fault indication||Blown fuse|
|Loss of field power|
|Protection type||Internal by RC filter|
|Internal output protection by 5 A fuse|
|Power dissipation||1.85 + (1.1 V x total module load current)|
|Local signalling||16 LEDs green input status|
|1 LED red external fault detected (F)|
|1 LED green bus communication is present (Active)|
|Bus current requirement||350 mA|
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed 140DAO84210C to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this 140DAO84210C we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty 140DAO84210C, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty 140DAO84210C for credit when ordering from MRO Electric

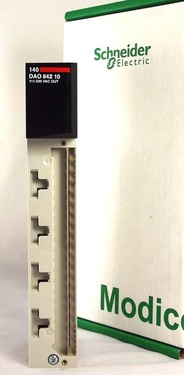

The 140DAO84210C is a
Discrete Output Module Modicon Quantum - 16 O -... that is manufactured by Schneider Electric. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. All of the products in the modicon-quantum line come with a 2 year warranty from MRO Electric. We also carry PLC from other manufacturers such as Modicon and ABB.
Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or sending us an email at email@example.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like 140DAO84210C, take a look at more from our Robotics line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our 140DAO84210C products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
