MANUFACTURER: SCHNEIDER ELECTRIC

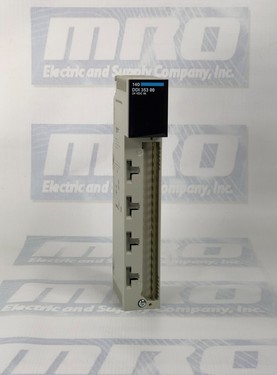

DESCRIPTION: Discrete Input Module - 32 I 24 V DC
PRODUCT TYPE INFO: Modicon Quantum
Part Number | 140DDI35300 |
Manufacturer | Schneider Electric |
Series | Modicon Quantum |
Model # | 140DDI35300 |
Alternate Model | 140-DDI-353-00 |
Type | IO Modules |
Warranty | 2 Year |
Module format | Standard |
Product or component type | Low voltage dc discrete input modules |
Discrete input number | 32 |
Group of channels | 4 |
Logic input | Positive (sink) |
Discrete input voltage | 24 V DC |
Input voltage limits | 19.2...30 V |
Voltage state 1 guaranteed | 15...30 V DC |
Voltage state 0 guaranteed | -3...5 V DC |
Current state 1 guaranteed | >= 2 mA at Us = 5.5 V and Uin = 0 V |
Current state 0 guaranteed | <= 0.5 mA |
Addressing requirement | 2 input words |
Input impedance | 2500 Ohm |
Leakage current | 200 mA at Us = 5.5 V and Uin = 4 V |
Absolute maximum input | 56 V during 1.3 ms decaying pulse |
30 V continuous |
Response time | <= 1 ms from state 1 to state 0 |
<= 1 ms from state 0 to state 1 | |
Protection type | Input protection by resistor limited |
Power dissipation | 1.7 W + (0.36 x number of points on) |
Isolation between group and bus | 1780 Vrms for 1 minute |
Isolation between group | 500 Vrms for 1 minute |
Local signalling | 32 LEDs green input status |
1 LED red external fault detected (F) | |
1 LED green bus communication is present (Active) | |
Marking | CE |
Bus current requirement | 330 mA |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed 140DDI35300 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this 140DDI35300 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty 140DDI35300, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty 140DDI35300 for credit when ordering from MRO Electric
Additional Information
The Modicon 140DDI35300 is part of the Modicon Quantum automation platform. It is a low voltage DC discrete Input Module with 32 inputs. It has 4 groups of channels with 8 inputs each and a positive logic input. The module requires a Bus current of 330 mA and has an addressing requirement of 2 input words. It accepts 24 Volt DC inputs and should be used with a shared input common wired to a positive potential and is for use with source output devices. It has no internal fuses, but external fuses can be used at the user’s discretion.
The number of channels on the Modicon 140DDI35300 is 32 sigh 4 groups of 8 channels per common. This module is isolated by group, it uses a sink logic circuit. The 140DDI35300 has two I/O words and is resistor limited. The require bus current is 330 mA and the power dispensation is 1.7 + (0.36 x no. of channels at state 1) in W. This module is configured online and can be modified online. It carries the approvals of UL 508, CSA 22.2-142, e, FM Class 1 Div. 2, and ATEX Zone 2/22. The Modicon 140DDI35300 discrete input module is a non-interfering module that is completely suitable to work in tandem with a Quantum safety configuration.
The input for the Modicon 140DDI35300 is 24 V c.
The CCOTF function, or the change configuration on the fly function, is permitted by the discrete I/O m module 140DDI35300. Which CPU’s support the CCOTF function? The CCOTF function is only supported by Standalone CPU modules from version 5 or later of Unity Pro. CCOTF is also supported by Hot Standby CPUs from version 4.1 or later of Unity Pro. Why is the CCOTF function beneficial? The CCOTF function is beneficial as it avoids the interruption of processes. How does this help? This is useful as it helps reduce production costs.
The 140-DDI-353-00 Module, when in “ON” mode, should be kept at a voltage of 5 to 30 Vdc, and a minimum current of 2.0 mA. When Off, the voltage should read between -3 to 5 Vdc and keep at a max current of 0.5 mA. Its response time between the On and Off functions is 1 ms. The 140DDI35300 has no-fault detection. Its power dissipation is 1.7 Watts plus an additional 0.36 Watts for every input that is in use. The absolute maximum continuous input should be kept under 30 Volts DC. Its maximum input at 1.3 ms should be a 56 Volt DC decaying pulse. 140DDI35300 uses a resistor limited input protection, and it has an internal resistance of 2.5k. External power is not necessary for this module. On its front panel, it has a total of 32 green LEDs that indicate the status for each point. This module is of standard size and can fit into any Modicon Quantum backplane easily.
The Modicon 140DDI35300 discrete I/O Module by Schneider Electric comes with a two-year warranty.
The 140DDI35300 is a Discrete Input Module- 32 I 24 V DC that is manufactured by Schneider Electric. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. All of the products in the modicon-quantum line come with a 2 year warranty from MRO Electric. We also carry PLC from other manufacturers such as Modicon and ABB.
Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or sending us an email at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like 3HAC023195-001, take a look at more from our Robotics line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our 140DDI35300 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
