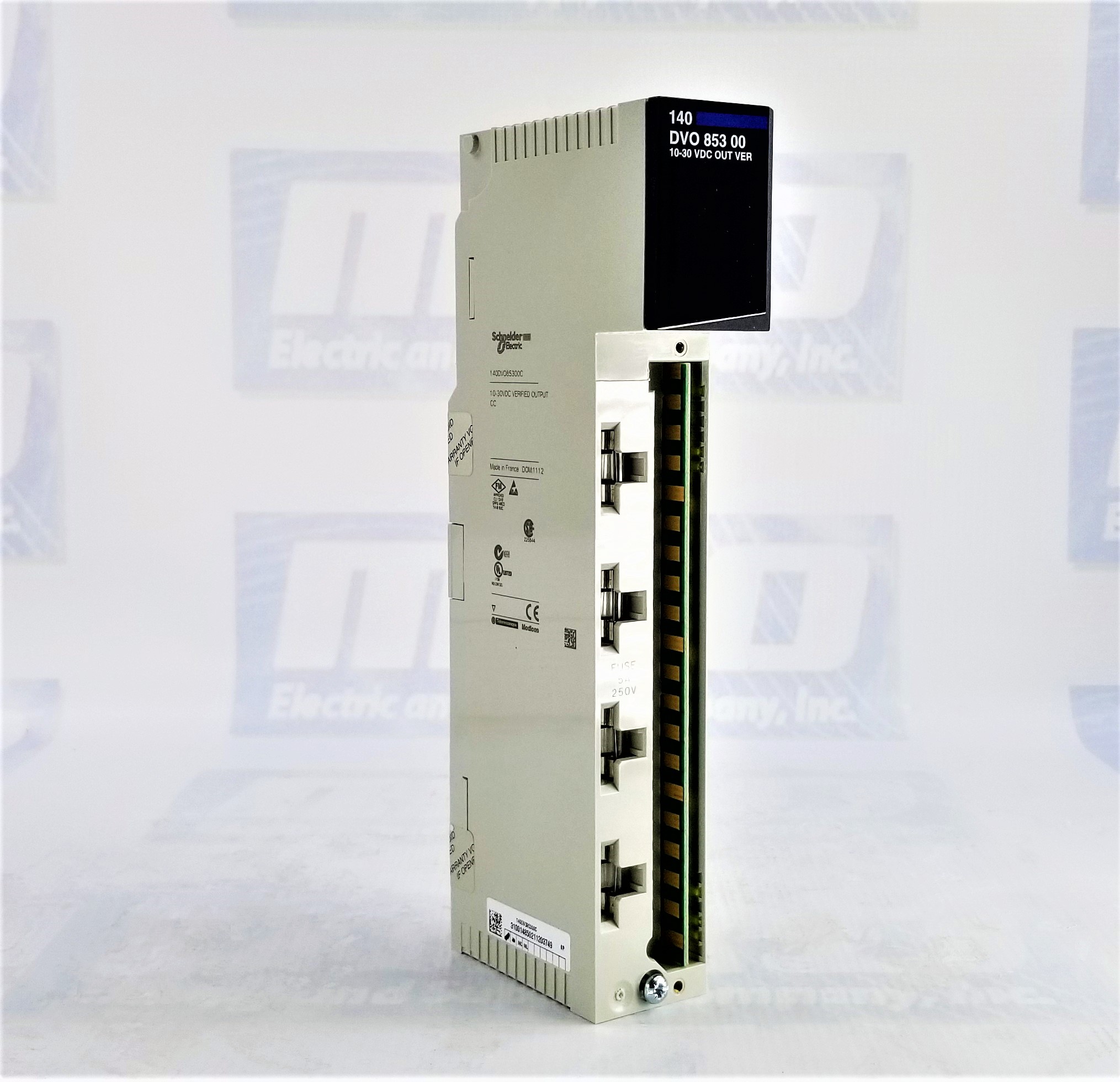

Schneider Electric 140DVO85300

MODICON QUANTUM DISCRETE OUTPUT MODULE - 32 O - 10..30 V DC

4.5/5
2 ratings

126 in stock

Ships Today


Free Shipping

2 Year warranty

Part Number140DVO85300
ManufacturerSchneider Electric
TypeI/O Modules
Model #140-DVO-853-00
Warranty2 Year
Module formatStandard
Product or component typeDc discrete output module
Discrete output number32
Group of channels4 groups of 8
Discrete output logicNegative logic (sink)
Addressing requirement2 input words
2 output words
Discrete output voltage10...30 V DC
Absolute maximum output50 V for 1 s decaying pulse
Voltage drop0.4 V 0.5 A
Maximum load current<= 0.5 A each point
<= 0.5 A each point
<= 16 A per module
<= 16 A per module
<= 4 A each group
<= 4 A each group
Surge current<= 2.5 A for 1 ms
Response time<= 2 ms at state 0 to state 1
<= 2 ms at state 1 to state 0
1 ms at state 0 to state 1
1 ms at state 1 to state 0
Short-circuit protectionWith
Output overvoltage protectionWith
Load inductanceInductance(H) = 0.5/((current(A))² x (switching frequency(Hz))) 0.5...4 Hz
Tungsten load2.5 W 10 V
3 W 12 V
6 W 24 V
Fault indicationLoss of field power
Incorrect output state
Blown fuse
Protection typeInternal output protection by 5 A fuse per group
Power dissipation2.5 W + (0.1 x all points on) + (0.4 x total load current)
MarkingCE
Local signalling1 LED green bus communication is present (Active)
1 LED red external fault detected (F)
32 LEDs green input status
Bus current requirement500 mA
500 mA

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 140DVO85300 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 140DVO85300 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 140DVO85300, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped today?

  • Order within the next 2 hours and 43 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 140DVO85300 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric 140DVO85300 Overview

Schneider Electric 140DVO85300 DC Discrete Output Module

The Schneider Electric 140DVO85300 is a high-performance discrete output module designed to precisely control automation and industrial systems. Known for its robust design, this module is part of Schneider Electric's Modicon Quantum I/O series, providing dependable output functionality for industrial applications. The 140DVO85300 is backed by a 2-year MRO Electric and Supply warranty, ensuring long-term reliability. With a standard module format, this unit combines flexible voltage handling, multiple outputs, and advanced protective features, making it an ideal solution for various industrial control needs.

Output Channels and Configuration

Equipped with 32 discrete outputs, the 140DVO85300 is structured into four groups of eight outputs each, allowing for well-organized, segmented control over connected devices. The module uses negative logic (sink) for discrete output logic, which suits applications that require robust DC signal handling. It requires two input and two output words for addressing, simplifying communication with other devices in the control system.

Voltage and Current Specifications

The 140DVO85300 is compatible with a DC output voltage range of 10 to 30 V, with an absolute maximum output limit of 50 V for up to one second on a decaying pulse. The voltage drop across each output point is kept low at 0.4 V when operating at 0.5 A, maximizing energy efficiency. The module supports a maximum load current of 0.5 A per point and 4 A per group, with a maximum of 16 A per module. This capacity allows the module to handle high-current loads while ensuring stable performance across all outputs.

Surge and Response Time

The 140DVO85300 is designed to handle sudden surges with a tolerance of up to 2.5 A for 1 ms, ensuring smooth operation even under dynamic load conditions. Response times are fast, at 1 ms for both state transitions (0 to 1 and 1 to 0), making it highly suitable for time-sensitive applications where rapid switching is required.

Advanced Protection Features

Schneider Electric has equipped the 140DVO85300 with multiple protective mechanisms to enhance its longevity and reliability. The module features short-circuit and overvoltage protection on each output, preventing damage from overloads and electrical faults. Each output group is safeguarded by a 5 A fuse, providing an additional layer of security. The unit's load inductance is calculated at 0.5 H divided by the current and switching frequency square, protecting against potential damage from inductive loads.

Local Signaling and Fault Indication

The 140DVO85300 includes local signaling indicators that make monitoring and diagnosing issues easy for operators. A green LED indicates active bus communication, while a red LED alerts users to external faults. Each of the 32 output channels has a green LED to show the status, making monitoring each point's activity simple. Additionally, the module can signal specific faults such as loss of field power, blown fuses, and incorrect output states, helping to identify and address issues quickly.

Power Requirements and Certifications

The 140DVO85300 operates with a bus current requirement of 500 mA, making it a power-efficient option for extensive control systems. It is CE-marked, confirming compliance with European safety and quality standards and ensuring the module is suitable for use in diverse industrial applications.

Frequently Asked Questions

Q: What is the maximum load current for the 140DVO85300 per module?

A: The module can handle up to 16 A of load current in total, with a limit of 0.5 A per output point and 4 A per group. This ensures that each group and point can operate within safe current limits.

Q: What type of logic does this output module use?

A: The 140DVO85300 uses negative logic (sink) for its discrete outputs, which is standard in applications requiring stable and reliable DC outputs.

Q: What is the maximum surge current this module can handle?

A: The 140DVO85300 can withstand surge currents of up to 2.5 A for 1 ms, allowing for safe operation during brief current spikes.

Q: Does the module provide any fault indicators?

A: Yes, the 140DVO85300 features multiple fault indications, including loss of field power, incorrect output state, and blown fuse detection. These indicators assist operators in troubleshooting and ensuring smooth module operation.

Q: How fast is the response time for state transitions?

A: The module's response time is 1 ms for both state transitions from 0 to 1 and 1 to 0, making it suitable for high-speed switching applications.

Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry I/O Modules from other manufacturers such as Modicon and ABB.
