|Product or component type||Relay discrete output module|
|Discrete output number||8|
|Contacts type and composition||1 NO/NC|
|Contact form||Form C|
|Discrete output voltage||5...30 V DC|
|30...150 V DC|
|20...250 V AC|
|Addressing requirement||0.5 output word|
|Maximum load current||5 A 250/30 V AC/DC resistive at 60 Â°C|
|300 mA 30...50 V DC resistive|
|3 A 250/30 V AC/DC|
|2 A 250/30 V AC/DC tungsten 1/4 hp cos phi = 0.4|
|100 mA 30...50 V DC L/R = 10 ms|
|Surge current||<= 20 A for 10 ms capacitive|
|Switching frequency||F = 0.5/IÂ²L inductive|
|30 Hz resistive|
|Switching capacity in VA||1250 VA resistive|
|Response time on input opening||<= 20 ms at state 1 to state 0|
|<= 10 ms at state 0 to state 1|
|Mechanical durability||10000000 cycles|
|Electrical durability||50000 cycles 500 mA 30...150 V DC resistive|
|200000 cycles 5 A 250 V AC resistive|
|100000 cycles 5 A 30 V DC resistive|
|100000 cycles 300 mA 30...150 V DC resistive|
|100000 cycles 30...150 V DC interposing relay|
|100000 cycles 100 mA 30...150 V DC L/R = 10 ms|
|Output overvoltage protection||Internal by varistor, 275 V|
|Isolation between channels||2500 V DC|
|1780 Vrms AC for 1 minute|
|Isolation between channels and bus||2500 V DC for 1 minute|
|1780 Vrms AC for 1 minute|
|Power dissipation||2.75 W + (0.5 x the number of points on)|
|Local signalling||8 LEDs green input status|
|1 LED red external fault detected (F)|
|1 LED green bus communication is present (Active)|
|Bus current requirement||560 mA|
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed 140DRC83000C to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this 140DRC83000C we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty 140DRC83000C, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty 140DRC83000C for credit when ordering from MRO Electric

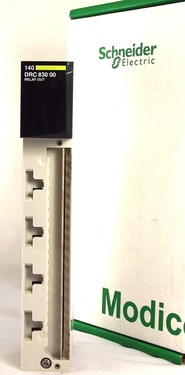

The 140DRC83000C is a Modicon Quantum Relay Discrete Output Module - 8 O... that is manufactured by Schneider Electric. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. All of the products in the modicon-quantum line come with a 2 year warranty from MRO Electric. We also carry Accessories from other manufacturers such as Modicon and ABB.
Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or sending us an email at email@example.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like 3HAC023195-001, take a look at more from our Robotics line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our 140DRC83000C products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
