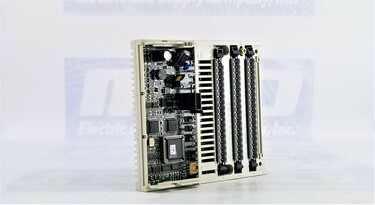

Schneider Electric 170AAI14000

Rated 5/5 on 1 review

Rate this product

MANUFACTURER: Schneider Electric
DESCRIPTION: Distributed Analog Input - 16 Input
PRODUCT TYPE INFO: Modicon Momentum

3 in stock

Ships Today

Free Shipping

2 Year warranty

Part Number170AAI14000
ManufacturerSchneider Electric
Model #170-AAI-140-00
Warranty2 Year
Width5.57 in (141.5 mm)
Range of productModicon Momentum automation platform
Product or component typeAnalogue input base
Analogue input number16
Analogue input typeSingle ended
Analogue input range+/- 10 V 12 bits + sign > 2200 kOhm
+/- 5 V 12 bits + sign > 2200 kOhm
4...20 mA 12 bits < 0.25 Ohm
Type of filterLow pass input filter 10 kHz
Data formatFull 16 bits signed
Absolute accuracy error+/- 0.15 % of full scale 77 °F (25 °C) +/- 10 V
+/- 0.15 % of full scale 77 °F (25 °C) +/- 5 V
+/- 0.25 % full scale 77 °F (25 °C) 4...20 mA
+/- 0.25 % full scale 140 °F (60 °C) +/- 10 V
+/- 0.25 % full scale 140 °F (60 °C) +/- 5 V
+/- 0.45 % full scale 140 °F (60 °C) 4...20 mA
Temperature drift30 %oFS/°C +/- 10 V 140 °F (60 °C)
30 %oFS/°C +/- 5 V 140 °F (60 °C)
60 %oFS/°C 4...20 mA 140 °F (60 °C)
Full scale10 V +/- 10 V
16 mA 4...20 mA
5 V +/- 5 V
Update time<= 25 ms
Isolation between channels and ground1780 V AC for 1 minute
Isolation between supply and ground500 V for 1 minute
Permissible common mode voltage100 V 47...63 Hz DC between channels to ground
250 V 47...63 Hz AC between channels to ground
External power requirement+/- 30 V DC
Power dissipation in W<= 5.55 W
Reverse polarity protectionInternal
Protection typeInternal 2 A slow-blow
Associated fuse rating500 mA fast blow
Local signalling16 LEDs channel status
Electrical connection2 connectors for removable terminal blocks
Current consumption305 mA 24 V DC
Depth1.87 in (47.5 mm)
Height4.92 in (125 mm)

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 170AAI14000 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 170AAI14000 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 170AAI14000, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped today?

  • Order within the next 4 hours and 29 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 170AAI14000 for credit when ordering from MRO Electric

Is analog filtering on th 170AAI03000 done through hardware or software?

  • Analog filtering is done via hardware.
MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric 170AAI14000 Overview

The Schneider Electric part number 170AAI14000 is an analog input base designed for use with the Modicon Momentum automation platform. Manufactured by Schneider Electric, this base module provides 16 single-ended analog input channels for various industrial applications. The module comes with a warranty period of 2 years, ensuring its reliability and performance. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry Bases from other manufacturers such as Modicon and ABB.


With a width of 5.57 inches (141.5 mm), the analog input base offers a compact and space-efficient design. It is a crucial component of the Modicon Momentum automation platform, which is widely used in industrial automation systems.

The data format of the analog input is full 16 bits signed, allowing for accurate and precise measurements. The module offers excellent absolute accuracy with an error of +/- 0.15% of the full scale for voltage inputs at 77°F (25°C) and +/- 0.25% of the full scale for current inputs at the same temperature. At elevated temperatures of 140°F (60°C), the accuracy error slightly increases.

The temperature drift specifications indicate the change in measurement accuracy with temperature fluctuations. The module has a temperature drift of 30%oFS/°C for voltage inputs and 60%oFS/°C for current inputs at 140°F (60°C).

The full-scale range for the analog inputs is +/- 10 V for voltage inputs and 16 mA for current inputs. The module ensures fast data acquisition with an update time of less than or equal to 25 ms.


The 170AAI14000 module supports different types of analog input signals. It can handle inputs ranging from +/- 10 V with 12-bit resolution, +/- 5 V with 12-bit resolution, to 4-20 mA with 12-bit resolution. The input impedance for the various input types is specified to be greater than 2200 kOhm for voltage inputs and less than 0.25 Ohm for current inputs. Additionally, the module features a low-pass input filter with a cut-off frequency of 10 kHz.


Electrical isolation is an important feature in industrial applications, and the 170AAI14000 module provides isolation between channels and ground at a rating of 1780 V AC for 1 minute. The isolation between the supply and ground is rated at 500 V for 1 minute. The module can tolerate common mode voltages of up to 100 V DC or 250 V AC between channels and ground.

Power supply

The module requires an external power supply of +/- 30 V DC and has a power dissipation of less than or equal to 5.55 W. It is equipped with reverse polarity protection and internal 2 A slow-blow fuses for added safety. The associated fuse rating for the module is 500 mA fast blow.

The current consumption of the module is 305 mA at 24 V DC, which should be taken into consideration when planning the power supply requirements.


For convenient status indication, the analog input base features 16 LEDs to display the channel status. The electrical connections are made using two connectors for removable terminal blocks, ensuring ease of installation and maintenance.

Dimensions and Standards

In terms of physical dimensions, the module has a depth of 1.87 inches (47.5 mm), a height of 4.92 inches (125 mm), and a width of 5.57 inches (141.5 mm). It is designed to meet the CE marking requirements, indicating compliance with European safety standards.

The Schneider Electric 170AAI14000 analog input base provides a reliable and versatile solution for integrating analog signals into the Modicon Momentum automation platform. Its high accuracy, isolation capabilities, and compact design make it suitable for a wide range of industrial applications.
