170AAI03000C

170AAI03000C

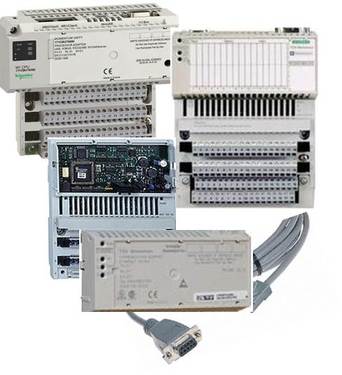

Distributed Analog Input Modicon Momentum - Conformal Coating - 8 Input
Available - call for stock

1 year warranty

Categories

Part Number170AAI03000C
ManufacturerSchneider Electric
SeriesModicon Communication
Weight1lb
TypeIO Modules
Warranty1 year
Width5.57 in (141.5 mm)
Range of productModicon Momentum automation platform
Product or component typeAnalogue input base
Analogue input number8
Analogue input typeDifferential
Analogue input range+/- 10 V 14 bits + sign > 0.1 kOhm
+/- 20 mA 14 bits + sign 250 kOhm
+/- 5 V 14 bits + sign > 0.1 kOhm
1...5 V 15 bits + sign > 0.1 kOhm
4...20 mA 15 bits + sign 250 kOhm
Data formatFull 16 bits signed
Absolute accuracy error+/- 0.13 % full scale 77 °F (25 °C) +/- 20 mA
+/- 0.19 % full scale 140 °F (60 °C) +/- 20 mA
+/- 0.21 % full scale 77 °F (25 °C) +/- 5 V
+/- 0.26 % full scale 140 °F (60 °C) +/- 5 V
+/- 0.27 % full scale 77 °F (25 °C) +/- 10 V
+/- 0.27 % full scale 77 °F (25 °C) 1...5 V
+/- 0.32 % full scale 77 °F (25 °C) 4...20 mA
+/- 0.32 % full scale 140 °F (60 °C) +/- 10 V
+/- 0.38 % full scale 140 °F (60 °C) 1...5 V
+/- 0.41 % full scale 140 °F (60 °C) 4...20 mA
Conversion time<= 12 ms 8
Isolation between channels+/- 200 V DC for 1 minute
Isolation between channels and ground500 V AC for 1 minute
Isolation between channels and bus500 V for 1 minute
Permissible common mode voltage100 V 47...63 Hz DC between channels to ground
250 V 47...63 Hz AC between channels to ground
Common mode rejection>= 80 dB between channels to ground
External power requirement< 382 mA DC
20.4...28.8 V DC
24 V DC
Reverse polarity protectionInternal
MarkingCE
Local signalling8 LEDs channel status
Electrical connection2 connectors for removable terminal blocks
Depth1.87 in (47.5 mm)
Height4.92 in (125 mm)
