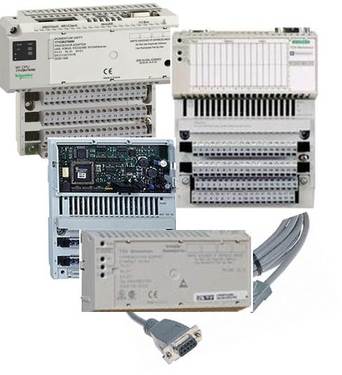

170AAI14000C

Manufacturer	Schneider Electric
Series	Modicon Communication
Width	5.57 in (141.5 mm)
Range of product	Modicon Momentum automation platform
Product or component type	Analogue input base
Analogue input number	16
Analogue input type	Single ended
Analogue input range	+/- 10 V 12 bits + sign > 2200 kOhm
	+/- 5 V 12 bits + sign > 2200 kOhm
	4...20 mA 12 bits + sign < 0.25 Ohm
Type of filter	Low pass input filter 10 kHz
Data format	Full 16 bits signed
Absolute accuracy error	+/- 0.15 % of full scale 77 Â°F (25 Â°C) +/- 10 V

	+/- 0.15 % of full scale 77 Â°F (25 Â°C) +/- 5 V
	+/- 0.25 % full scale 77 Â°F (25 Â°C) 4...20 mA
	+/- 0.25 % full scale 140 Â°F (60 Â°C) +/- 10 V
	+/- 0.25 % full scale 140 Â°F (60 Â°C) +/- 5 V
	+/- 0.45 % full scale 140 Â°F (60 Â°C) 4...20 mA
Temperature drift	+/- 30 % full scale +/- 10 V 140 Â°F (60 Â°C)
	+/- 30 % full scale +/- 5 V 140 Â°F (60 Â°C)
	+/- 60 % full scale 4...20 mA 140 Â°F (60 Â°C)
Update time	<= 25 ms
Isolation between channels and ground	1780 V AC for 1 minute
Isolation between supply and ground	500 V for 1 minute
Permissible common mode voltage	100 V 47...63 Hz DC between channels to ground
	250 V 47...63 Hz AC between channels to ground

External power requirement	+/- 30 V DC
Power dissipation in W	<= 5.55 W
Reverse polarity protection	Internal
Protection type	Internal 2 A slow-blow
Associated fuse rating	500 mA fast blow
Marking	CE
Local signalling	16 LEDs channel status
Electrical connection	2 connectors for removable terminal blocks
Current consumption	305 mA 24 V DC
Depth	1.87 in (47.5 mm)
Height	4.92 in (125 mm)

Our core exchange program offers you credit for your faulty items, please ask about getting an RMA to send your core in with for credit. You can also send in your unit to be repaired, our standard turnaround for repairs is 5-7 days, and all of our repaired items look like new, and come with a 1 year warranty.

This product weights 1lb. Want it shipped today?

Order within the next 54 minutes.
If you order between 4pm and 6pm EST, you will be charged a small rush fee.

What is the product warranty?

170AAI14000C comes with a 1 year warranty
Ask about exchanging your faulty 170AAI14000C for credit when ordering from MRO Electric
