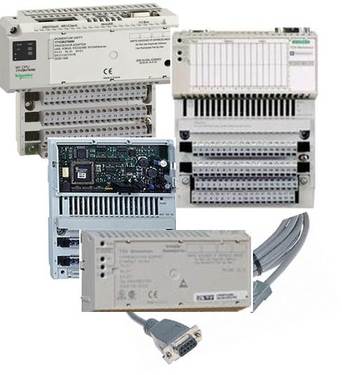

170ADI74050

Schneider Electric 170ADI74050

170ADI74050

Discrete Input Module Modicon Momentum - 16 Input 200..240 V AC
1 year warranty
Call (800) 691-8511 for pricing
Request Quote

Testimonials

Additional Information

Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call, or sending us an email, we strive for customer satisfaction first. This means cheaper prices and better service for you. For more products like 170ADI74050, take a look at more from our Modicon Communication line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. We offer a repair service on all of our products that keep your downtime to a minimum. To stay up to date on on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.

Specifications

ManufacturerSchneider Electric
SeriesModicon Communication
Width4.92 in (125 mm)
Range of productModicon Momentum automation platform
Product or component typeDiscrete inputs base AC
Group of channels2 groups of 8 inputs
Discrete input number16 IEC 1131-2 Type 2
Discrete input voltage230 V AC
Protective treatmentTC
Discrete input logicPositive
Input voltage limits164...253 V
Network frequency47...63 Hz
Voltage range163...253 V
Voltage state 0 guaranteed<= 40 V
Voltage state 1 guaranteed>= 164 V
Current state 0 guaranteed<= 2 mA
Current state 1 guaranteed>= 10 mA
Input resistance7.5 kOhm 60 Hz
9 kOhm 50 Hz
Response time13.3 ms 60 Hz from state 0 to state 1
13.3 ms 60 Hz from state 1 to state 0
Isolation between group1780 V AC
Isolation between channels and bus1780 V AC
Terminals description PLC n°1(14)IN_DIS#14
(15)IN_DIS#15
(16)IN_DIS#16
(13)IN_DIS#13
(7)IN_DIS#7
(3)IN_DIS#3
(4)IN_DIS#4
(6)IN_DIS#6
(1)IN_DIS#1
(9)IN_DIS#9
(N)PW
TB
(12)IN_DIS#12
(10)IN_DIS#10
(2)IN_DIS#2
(L1)PW
(8)IN_DIS#8
(5)IN_DIS#5
(11)IN_DIS#11
MarkingCE
Local signalling16 LEDs channel status
Current consumption<= 125 mA 230 V AC
Depth1.87 in (47.5 mm)
Height5.57 in (141.5 mm)
