170ADI35000C

170ADI35000C

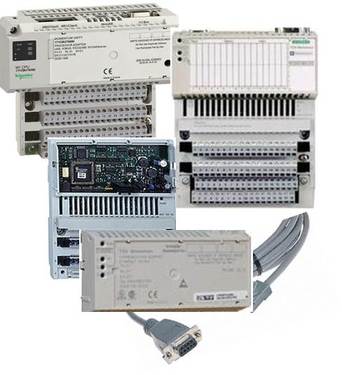

Discrete Input Module Modicon Momentum - Conformal Coating - 32 Input 24 V DC
Available

2 Year warranty

Categories

Part Number170ADI35000C
ManufacturerSchneider Electric
SeriesModicon Communication
Model #170ADI35000C
TypeIO Modules
Warranty2 Year
Width4.92 in (125 mm)
Range of productModicon Momentum automation platform
Product or component typeDiscrete inputs base DC
Group of channels2 groups of 16 inputs
Discrete input number32 IEC 1131-2 Type 1
Discrete input voltage24 V DC
Protective treatmentTC
Conformal coating Humiseal 1A33
Discrete input logicPositive
Input voltage limits24 V
Voltage range- 3...30 V
Voltage state 0 guaranteed-3...5 V
Voltage state 1 guaranteed11...30 V
Current state 0 guaranteed<= 1.2 mA
Current state 1 guaranteed>= 2.5 mA
Input resistance4 kOhm
Response time2.2 ms from state 0 to state 1
3.3 ms from state 1 to state 0
Isolation between channels and bus500 V AC
Power dissipation8.5 W maximum
5.5 W typical
MarkingCE
Local signalling32 LEDs channel status
Current consumption<= 250 mA 24 V DC
Depth1.87 in (47.5 mm)
Height5.57 in (141.5 mm)

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 170ADI35000C to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 170ADI35000C we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 170ADI35000C, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
