170ADM35011

2-year Warranty

Same Day Shipping

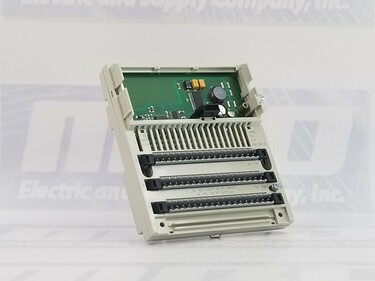

Schneider Electric 170ADM35011

MODICON MOMENTUM DISCRETE I/O MODULE- 16 I/O SOLID STATE

5/5
1 rating

Select Condition

Refurbished

3 in stock

$391.00

Request a Quote
  • Ships Today
  • 2 Year Warranty
  • Free Shipping
Part Number170ADM35011
ManufacturerSchneider Electric
TypeI/O Modules
Model #170-ADM-350-11
Warranty2 Year
Product weight0.2 kg
Range of productModicon Momentum automation platform
Product or component typeDiscrete solid state I/O base DC
Group of channels1 group of 16 inputs
2 groups of 8 outputs
Discrete input number16 IEC 1131-2 Type 1
Discrete input logicPositive
Discrete input voltage24 V DC
Discrete output number16
Discrete output typeSolid state switch
Discrete output voltage<= 30 V DC
Discrete output logicPositive
Protective treatmentTC
[Us] rated supply voltage24 V DC
Input voltage limits- 3...30 V
Voltage state 0 guaranteed-3...5 V
Voltage state1 guaranteed11...30 V
Current state 0 guaranteed<= 1.2 mA
Input resistance4 kOhm
Discrete output current4 A per group
Leakage current< 1 mA 24 V output circuit
Peak output current5 A
Voltage drop< 0.5 V 0.5 A at state 1 output circuit
Fault typeOverload on output
Response time< 0.1 ms from state 0 to state 1 on output
Isolation between channels and bus500 V AC
Power dissipation<= 8 W
MarkingCE
Terminals description PLC n°1(1)IN_DIS#1
(10)IN_DIS#10
(11)IN_DIS#11
(12)IN_DIS#12
(13)IN_DIS#13
(14)IN_DIS#14
(15)IN_DIS#15
(16)IN_DIS#16
(2)IN_DIS#2
(3)IN_DIS#3
(4)IN_DIS#4
(5)IN_DIS#5
(6)IN_DIS#6
(7)IN_DIS#7
(8)IN_DIS#8
(9)IN_DIS#9
(L+)PW_POS
(M-)PW_NEG
TB
Terminals description PLC n°2(1)OUT_DIS#1
(10)OUT_DIS#10
(11)OUT_DIS#11
(12)OUT_DIS#12
(13)OUT_DIS#13
(14)OUT_DIS#14
(15)OUT_DIS#15
(16)OUT_DIS#16
(1L+)PW_POS
(2)OUT_DIS#2
(2L+)PW_POS
(3)OUT_DIS#3
(4)OUT_DIS#4
(5)OUT_DIS#5
(6)OUT_DIS#6
(7)OUT_DIS#7
(8)OUT_DIS#8
(9)OUT_DIS#9
TB_1
Current consumption250 mA 24 V DC
Depth47.5 mm
Height141.5 mm
Width125 mm

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 170ADM35011 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 170ADM35011 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 170ADM35011, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped today?

  • Order within the next 14 hours and 44 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 170ADM35011 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric 170ADM35011 Overview

Schneider Electric 170ADM35011 I/O Module

The Schneider Electric 170ADM35011 is a high-performance discrete solid-state input/output (I/O) base module designed for industrial automation applications within the Modicon Momentum platform. With its compact design and versatile functionality, this module supports input and output operations, making it ideal for systems requiring reliable and efficient signal processing. The device is engineered for compatibility with 24 V DC systems, featuring positive logic and robust electrical characteristics for high-demand environments. MRO Electric and Supply offers this unit a 2-year warranty and free immediate shipping, ensuring convenience and confidence in your purchase.

Input and Output Capabilities

This I/O module is uniquely structured to handle both discrete inputs and outputs. It contains one group of 16 discrete inputs conforming to IEC 1131-2 Type 1 standards and two groups of 8 solid-state switch outputs. The input logic is positive, operating at a voltage range of -3 to 30 V DC, with guaranteed switching states of -3 to 5 V for low and 11 to 30 V for high. Each input has a resistance of 4 kΩ and draws approximately 12 mA, ensuring consistent signal detection even in electrically noisy environments.

Output Performance and Protection

The 16 discrete outputs support a voltage of up to 30 V DC with positive logic. Each group of outputs can handle up to 4 A of continuous current, with a peak output current of 5 A. Voltage drop across an output is maintained below 0.5 V at 0.5 A, demonstrating excellent electrical efficiency. The module includes overload and short-circuit protection, safeguarding the unit and connected components. Response time is speedy, with transitions from OFF to ON occurring under 0.1 milliseconds, making it suitable for time-sensitive applications.

Power and Construction Details

The 170ADM35011 operates on a 24 V DC rated supply, consuming approximately 250 mA. It has a power dissipation rating of up to 8 W, which is relatively low for its capabilities. The module includes standard screw terminal connections for secure installation and reliable contact. The physical dimensions are compact, with a width of 125 mm, height of 141.5 mm, and depth of 47.5 mm, and a lightweight build of only 0.2 kg. The isolation between the channels and communication bus is rated at 500 V AC, enhancing safety and durability in harsh industrial settings.

Environmental and Compliance Ratings

This module features TC protective treatment for resistance against environmental factors such as dust and humidity. It carries the CE marking, confirming compliance with European safety and performance standards. With high reliability, protective circuits, and flexible input/output configurations, the 170ADM35011 is an excellent choice for engineers and system integrators seeking a reliable I/O solution.

Frequently Asked Questions

What is the primary function of the 170ADM35011 module?

It is a discrete I/O module that reads digital input signals and controls output signals in automation systems.

What voltage does the module operate on?

The module operates on 24 V DC for both input and output circuits.

How many discrete inputs and outputs does it support?

It supports 16 discrete inputs and 16 discrete outputs.

Is the output protected against overloads?

Yes, the outputs are electronically protected against overload and short circuits.

What is the response time for output switching?

The response time is less than 0.1 milliseconds from OFF to ON.

What kind of logic does it use?

It uses positive logic for both inputs and outputs.

What is the peak output current per group?

Each group of outputs can deliver up to 5 A peak current.

Can it be used with 2-wire proximity sensors?

Yes, the input side is compatible with 2-wire and 3-wire proximity sensors.

What is the operating environment classification?

It features a TC protective treatment suitable for industrial environments.

Is the unit readily available?

It is available immediately with free shipping and a 2-year warranty from MRO Electric and Supply.
