170ADM37010

2-year Warranty

Same Day Shipping

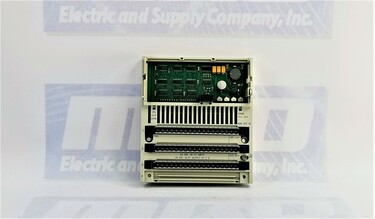

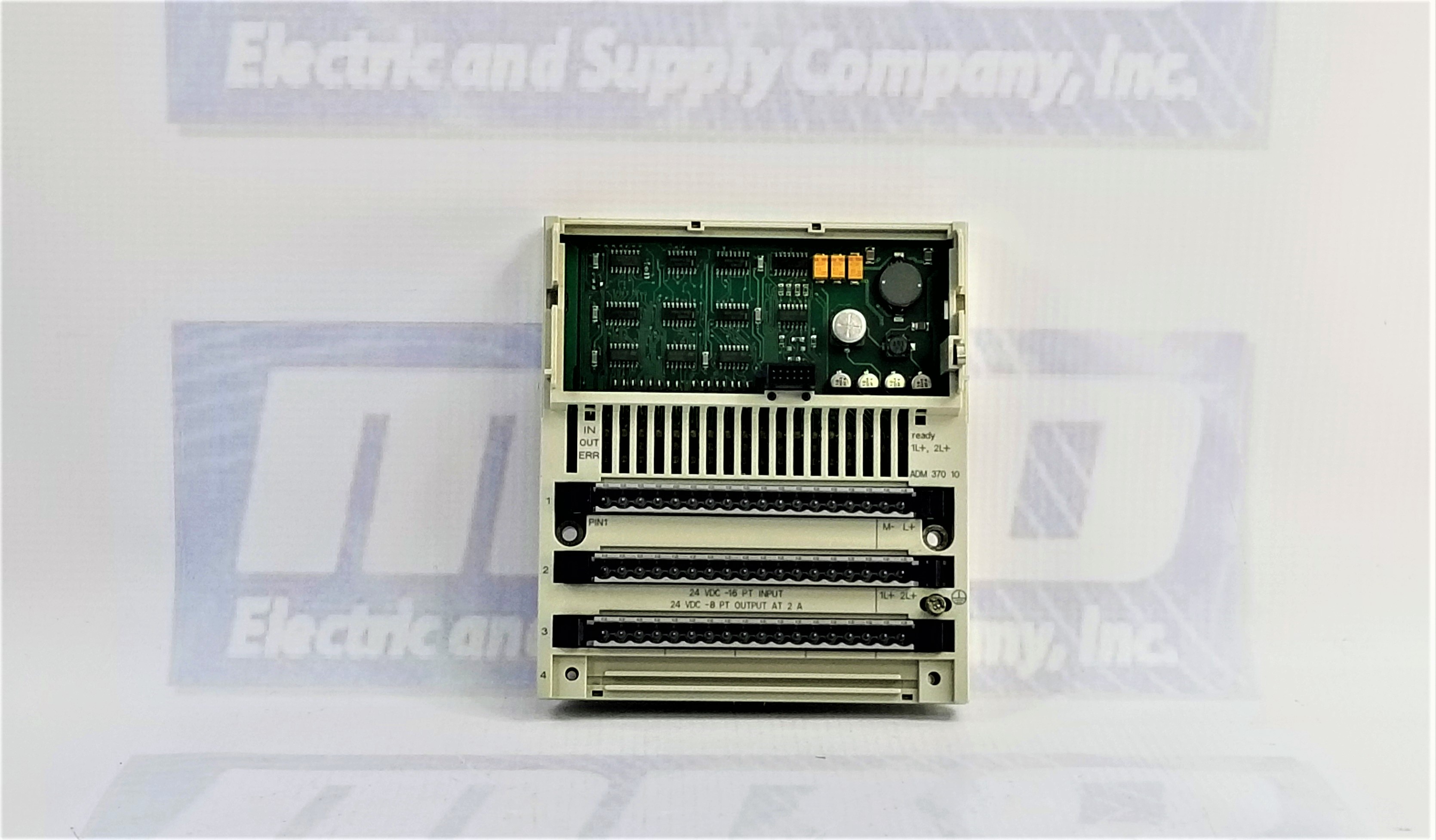

Schneider Electric 170ADM37010

- 16I / 8O SOLID STATE DISCRETE I/O MODULE
5/5
3 ratings

Select Condition

Refurbished

3 in stock

$361.00

Request a formal quote

  • Ships Today
  • 2 Year Warranty
  • Free Shipping
Part Number170ADM37010
ManufacturerSchneider Electric
TypeI/O Modules
Model #170-ADM-370-10
Warranty2 Year
Width4.92 in (125 mm)
Range of productModicon Momentum automation platform
Product or component typeDiscrete solid state I/O base DC
Group of channels4 groups of 4 inputs
2 groups of 4 outputs
Discrete input number16 IEC 1131-2 Type 1
Discrete input logicPositive
Discrete input voltage24 V DC
Discrete output number8
Discrete output typeSolid state switch
Discrete output voltage<= 30 V DC
24 V DC
Discrete output logicPositive
Protective treatmentTC
[Us] rated supply voltage24 V DC
Input voltage limits- 3...30 V
Voltage state 0 guaranteed-3...5 V
Voltage state1 guaranteed11...30 V
Current state 0 guaranteed<= 1.2 mA
Current state 1 guaranteed>= 2.5 mA
Input resistance4 kOhm
Discrete output current16 A per module
2 A per point
8 A per group
Leakage current< 1 mA 24 V output circuit
Peak output current2.8 A
Fault typeShort circuit on output
Overload on output
Response time< 0.1 ms from state 0 to state 1 on output
< 0.1 ms from state 1 to state 0 on output
2.2 ms from state 0 to state 1 on input
3.3 ms from state 1 to state 0 on input
Isolation between channels and bus500 V AC
Power dissipation6.5 W
<= 10 W
MarkingCE
Terminals description PLC n°1(M-)PW_NEG
(1)IN_DIS#1
(11)IN_DIS#11
(15)IN_DIS#15
(12)IN_DIS#12
(10)IN_DIS#10
(4)IN_DIS#4
(3)IN_DIS#3
(13)IN_DIS#13
(16)IN_DIS#16
(7)IN_DIS#7
(14)IN_DIS#14
(8)IN_DIS#8
(5)IN_DIS#5
TB
(9)IN_DIS#9
(2)IN_DIS#2
(L+)PW_POS
(6)IN_DIS#6
Terminals description PLC n°2(8)OUT_DIS#8
(4)OUT_DIS#4
(5)OUT_DIS#5
(2L+)PW_POS
(2)OUT_DIS#2
(6)OUT_DIS#6
TB_1
(1L+)PW_POS
(7)OUT_DIS#7
(1)OUT_DIS#1
(3)OUT_DIS#3
Current consumption250 mA 24 V DC
Depth1.87 in (47.5 mm)
Height5.57 in (141.5 mm)

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 170ADM37010 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 170ADM37010 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 170ADM37010, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped today?

  • Order within the next 6 hours and 43 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 170ADM37010 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Schneider Electric 170ADM37010 Overview



The Schneider Electric 170ADM37010 is a part of the Modicon Momentum series, a range of programmable logic controllers (PLCs) and input/output (I/O) modules. Here's an overview of the 170ADM37010 module:

Overview:

  • The 170ADM37010 is a digital input module designed for Modicon Momentum PLC systems.
  • It provides 16 digital inputs.
  • It is commonly used in industrial automation applications to interface with digital sensors, switches, and other binary input devices.

Description:

  • The module is designed to be high-performance and reliable in industrial environments.
  • It typically mounts onto a DIN rail within a control panel or enclosure.
  • It features LED indicators for status monitoring and diagnostics.

Specifications:

  • 16 digital inputs.
  • Input voltage: 24 VDC.
  • Input current: 10 mA.
  • Response time: 0.5 ms per channel.

Installation:

  • The module is typically installed within a Modicon Momentum PLC rack.
  • Installation involves mounting the module onto a DIN rail and connecting it to the PLC's backplane.
  • Wiring connections are made using screw terminals.

Similar Products:

  • Other modules within the Modicon Momentum series may offer similar functionality but with different input/output configurations or features.
  • Some similar modules from Schneider Electric's other product lines include those from the Modicon Quantum and Modicon Premium series.

FAQ:

  1. What is the maximum input voltage supported?
  2. The maximum input voltage supported by the 170ADM37010 module is 24 VDC.
  3. Can the module be hot-swapped?
  4. No, hot-swapping is not supported. The module should be installed or removed while the PLC system is powered down.
  5. What is the operating temperature range?
  6. The module is designed to operate within a temperature range of -20°C to 60°C (-4°F to 140°F), making it suitable for a variety of industrial environments.
  7. How are input channels addressed in the PLC program?
  8. Input channels are addressed using discrete input references in the PLC programming software, such as ladder logic or function block diagrams.
  9. Is the module compatible with other PLC brands?
  10. The 170ADM37010 module is specifically designed for Modicon Momentum PLC systems and may not be directly compatible with PLCs from other brands without appropriate interfacing or conversion.



Schneider Electric products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. They come with a 2-year warranty from MRO Electric. We also carry I/O Modules from other manufacturers such as Modicon and ABB.

Contact Us Today For More Information About Schneider Electric Products

Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like 170ADM37010, take a look at more from our I/O Modules line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our 170ADM37010 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
