|Width||4.92 in (125 mm)|
|Range of product||Modicon Momentum automation platform|
|Product or component type||Discrete relay I/O base DC|
|Group of channels||1 group of 10 inputs|
|2 groups of 4 outputs|
|Discrete input number||10 IEC 1131-2 Type 1|
|Discrete input logic||Positive|
|Discrete input voltage||20...115 V AC|
|Discrete output number||8|
|Discrete output type||Relay normally open|
|Discrete output voltage||20...115 V DC|
|[Us] rated supply voltage||24 V DC|
|Input voltage limits||- 3...30 V|
|Network frequency||47...63 Hz|
|Voltage state 0 guaranteed||-3...5 V|
|Voltage state1 guaranteed||11...30 V|
|Current state 0 guaranteed||<= 1.2 mA|
|Current state 1 guaranteed||>= 2.5 mA|
|Input resistance||4 kOhm|
|Discrete output current||<= 0.15 mA 115 V inductive|
|<= 0.5 mA 115 V resistive|
|<= 1 mA 24 V inductive|
|<= 2 mA 24 V resistive|
|>= 0.005 A 24 V|
|Leakage current||< 1 mA 230 V output circuit|
|Mechanical durability||<= 30000000 cycles|
|Electrical durability||<= 100000 cycles inductive|
|Response time||2.2 ms from state 0 to state 1 on input|
|3.3 ms from state 1 to state 0 on input|
|10 ms 60 Hz from state 0 to state 1 on output|
|10 ms 60 Hz from state 1 to state 0 on output|
|Isolation between channels and bus||500 V AC|
|Power dissipation||<= 8.5 W|
|Protection type||Without protection|
|Associated fuse rating||<= 4 A fast blow input voltage|
|<= 8 A slow-blow output voltage per group|
|375 mA fast blow operating voltage|
|Terminals description PLC nÂ°1||(M-)PW_NEG|
|Terminals description PLC nÂ°2||(1L+)PW|
|Current consumption||250 mA 24 V DC|
|Depth||1.87 in (47.5 mm)|
|Height||5.57 in (141.5 mm)|
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed 170ADM39030 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this 170ADM39030 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty 170ADM39030, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty 170ADM39030 for credit when ordering from MRO Electric

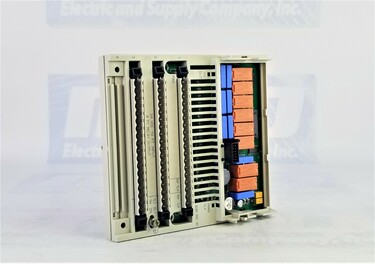

The 170ADM39030 is a Discrete I/O Module Modicon Momentum - 10I / 8O Re... that is manufactured by Schneider Electric. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. All of the products in the modicon-communication line come with a 2 year warranty from MRO Electric. We also carry Momentum from other manufacturers such as Modicon and ABB.
Check out the rest of our Schneider Electric product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or sending us an email at firstname.lastname@example.org, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like 3HAC023195-001, take a look at more from our Robotics line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
