170ADM39010

170ADM39010

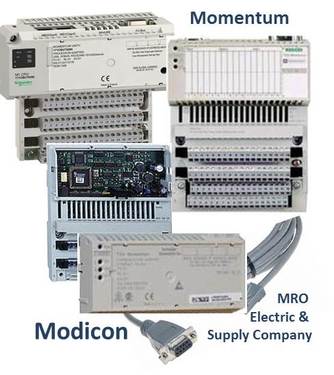

Discrete I/O Module Modicon Momentum - 16I / 12O Solid State
Available

Free Shipping
2 Year warranty

Categories

Part Number170ADM39010
ManufacturerSchneider Electric
SeriesModicon Communication
Model #170ADM39010
Alternate Model170-ADM-390-10
TypeIO Modules
Warranty2 Year
Width4.92 in (125 mm)
Range of productModicon Momentum automation platform
Product or component typeDiscrete solid state I/O base DC
Group of channels1 group of 16 inputs
1 group of 4 outputs
1 group of 8 outputs
Discrete input number16 IEC 1131-2 Type 1
Discrete input logicPositive
Discrete input voltage24 V DC
Discrete output number12
Discrete output typeSolid state switch
Discrete output voltage<= 30 V DC
24 V DC
Discrete output logicPositive
Protective treatmentTC
[Us] rated supply voltage24 V DC
Input voltage limits- 3...30 V
Voltage state 0 guaranteed-3...5 V
Voltage state1 guaranteed11...30 V
Current state 0 guaranteed<= 1.2 mA
Current state 1 guaranteed>= 2.5 mA
6 mA 24 V
Input resistance4 kOhm
Discrete output current4 A per group of 8 outputs
2 A per group of 4 outputs
8 A per module
0.5 A per point
Leakage current< 1 mA 24 V output circuit
Fault typeOverload on output
Broken wire on input circuit
Response time< 0.1 ms from state 0 to state 1 on output
< 0.1 ms from state 1 to state 0 on output
2.2 ms from state 0 to state 1 on input
3.3 ms from state 1 to state 0 on input
Isolation between channels and bus500 V AC
Power dissipation<= 10 W
6.5 W
MarkingCE
Terminals description PLC n°1(12)IN_DIS#12
(13)IN_DIS#13
(7)IN_DIS#7
(1)IN_DIS#1
(M-)PW_NEG
(14)IN_DIS#14
(11)IN_DIS#11
(10)IN_DIS#10
(L+)PW_POS
(3)IN_DIS#3
(4)IN_DIS#4
(8)IN_DIS#8
(2)IN_DIS#2
(15)IN_DIS#15
(16)IN_DIS#16
(9)IN_DIS#9
(6)IN_DIS#6
TB
(5)IN_DIS#5
Terminals description PLC n°2(6)OUT_DIS#6
(2)OUT_DIS#2
(11)OUT_DIS#11
(4)OUT_DIS#4
(9)OUT_DIS#9
TB_1
(2L+)PW_POS
(1L+)PW_POS
(3)OUT_DIS#3
(8)OUT_DIS#8
(7)OUT_DIS#7
(10)OUT_DIS#10
(5)OUT_DIS#5
(1)OUT_DIS#1
(12)OUT_DIS#12
Current consumption180 mA 24 V DC
Depth1.87 in (47.5 mm)
Height5.57 in (141.5 mm)

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 170ADM39010 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 170ADM39010 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 170ADM39010, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped today?

  • Order within the next 3 hours and 35 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 170ADM39010 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Additional Information

Product Description

The 170ADM39010 is a Discrete I/O Module Modicon Momentum - 16I / 12O S... that is manufactured by Schneider Electric. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. All of the products in the modicon-communication line come with a 2 year warranty from MRO Electric. We also carry Momentum from other manufacturers such as Modicon and ABB.
