|Width||4.92 in (125 mm)|

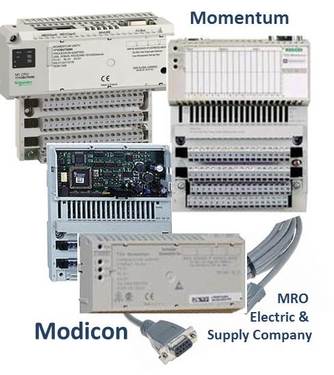

|Range of product||Modicon Momentum automation platform|
|Product or component type||Discrete output base AC|
|Group of channels||2 groups of 8 outputs|
|Discrete output number||16|
|Discrete output type||Triac|
|Discrete output voltage||230 V AC|
|Current per channel||<= 0.5 A|
|Short-circuit protection||Internal fuse, 5 A slow-blow per group|
|System Voltage||230 V AC|
|Discrete output current||4 A per group|
|8 A per module|
|Minimum output current||30 mA|
|Leakage current||2.4 mA 230 V AC|
|Surge current||10 A for 2 cycles|
|15 A for 1 cycle|
|5 A for 3 cycles|
|Voltage drop||< 1.5 V 0.5 A at state 1|
|Output overload protection||Internal fuse|
|Response time||1/2 x 1/f (= 0.5 of one line cycle) from state 0 to state 1|
|1/2 x 1/f (= 0.5 of one line cycle) from state 1 to state 0|
|Isolation between channels and bus||1780 V AC for 1 minute|
|Power dissipation||6 W typical|
|7.5 W maximum|
|Local signalling||16 LEDs channel status|
|Current consumption||65 mA 230 V AC|
|Terminals description PLC nÂ°1||(14)OUT_DIS#14|
|Depth||1.87 in (47.5 mm)|
|Height||5.57 in (141.5 mm)|
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed 170ADO74050 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 12-month warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this 170ADO74050 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty 170ADO74050, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
This product weighs 1lb. Want it shipped tomorrow?
Ask about exchanging your faulty 170ADO74050 for credit when ordering from MRO Electric
We accept all major credit cards, wire transfers, and net terms for established customers.
