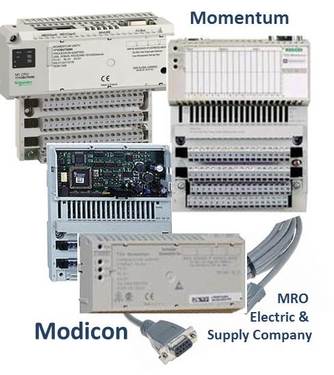

Discrete Output Module Modicon Momentum - 8 O Solid State

Free Shipping
2 Year warranty
Part Number170ADO73050
ManufacturerSchneider Electric
Model #170ADO73050
TypeI/O Modules
Warranty2 Year
Width4.92 in (125 mm)
Range of productModicon Momentum automation platform
Product or component typeDiscrete output base AC
Group of channels2 groups of 4 outputs
Discrete output number8
Discrete output typeTriac
Discrete output voltage230 V AC
Current per channel<= 2 A
Short-circuit protectionInternal fuse, 5 A slow-blow per group
Protective treatmentTC
System Voltage230 V AC
Discrete output current4 A per group
8 A per module
Minimum output current5 mA
Leakage current2.5 mA 230 V AC
Surge current10 A for 2 cycles
15 A for 1 cycle
5 A for 3 cycles
Voltage drop< 1.5 V 2 A at state 1
Output overload protectionInternal fuse
Response time1/2 x 1/f (= 0.5 of one line cycle) from state 0 to state 1
1/2 x 1/f (= 0.5 of one line cycle) from state 1 to state 0
Isolation between channels and bus1780 V AC for 1 minute
Power dissipation7.5 W maximum
6 W typical
Local signalling8 LEDs channel status
Current consumption65 mA 230 V AC
Terminals description PLC n°1(8)OUT_DIS#8
Depth1.87 in (47.5 mm)
Height5.57 in (141.5 mm)

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 170ADO73050 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 170ADO73050 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 170ADO73050, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped today?

  • Order within the next 14 hours and 12 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 170ADO73050 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Additional Information

Product Description

The 170ADO73050 is a Discrete Output Module Modicon Momentum - 8 O Soli... that is manufactured by Schneider Electric. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. All of the products come with a 2 year warranty from MRO Electric. We also carry I/O Modules from other manufacturers such as Modicon and ABB.
