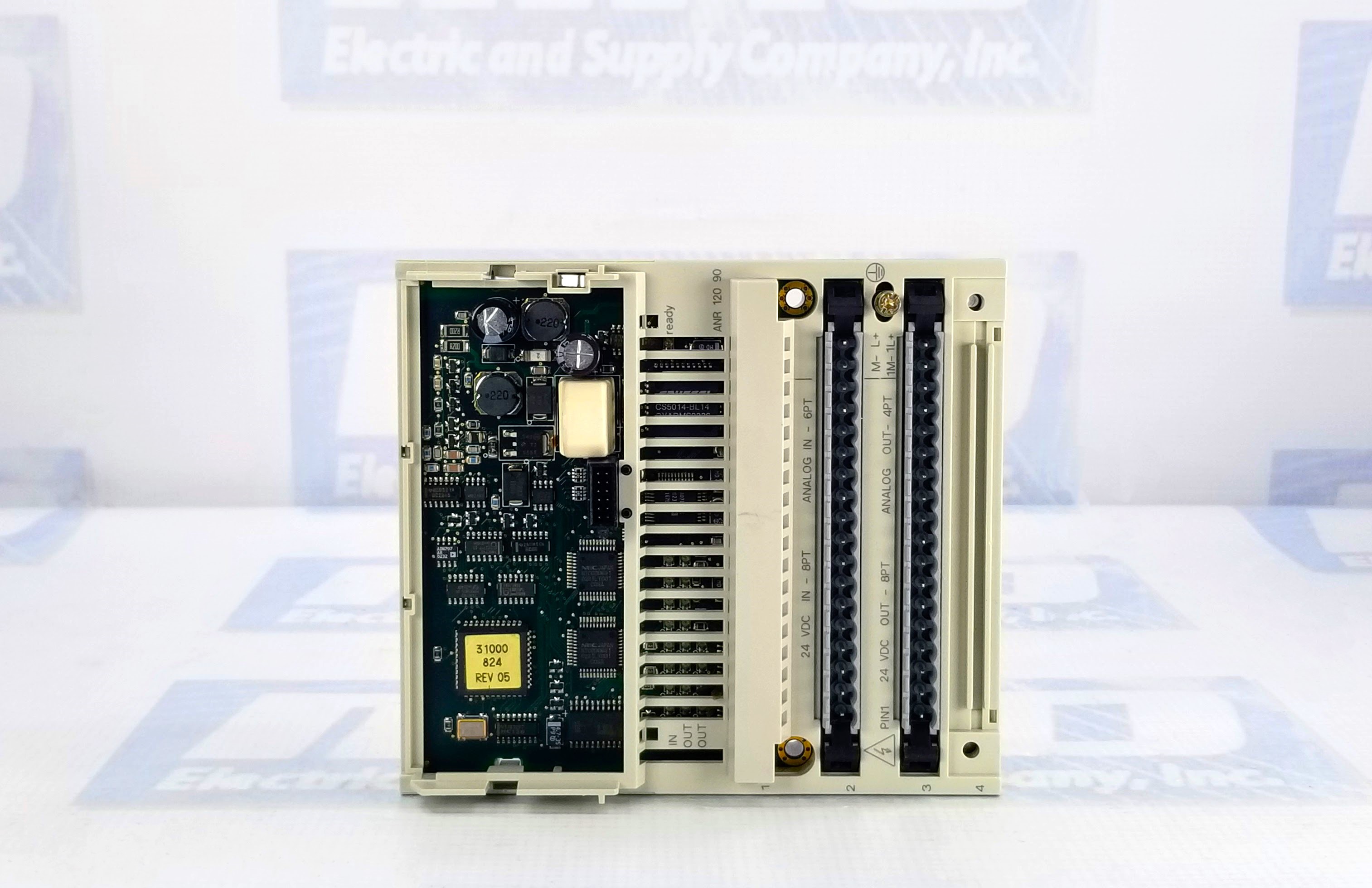

170ANR12090

170ANR12090

Rated 5/5 on 1 review

Rate this product


Distributed Analog/Discrete I/O Modicon Momentum

2 in stock
Ships Today

Free Shipping
2 Year warranty

Categories

Part Number170ANR12090
ManufacturerSchneider Electric
SeriesModicon Communication
Model #170ANR12090
Alternate Model170-ANR-120-90
TypeIO Modules
Warranty2 Year
Width5.57 in (141.5 mm)
Range of productModicon Momentum automation platform
Product or component typeAnalogue,Discrete I/O base
Group of channels1 group of 4 analog outputs
2 groups of 4 discrete inputs
1 group of 8 discrete outputs
1 group of 6 analog inputs
Analogue input range0...10 V
Analogue input typeSingle ended
Analogue input resolution14 bits 0...10 V
Discrete input voltage24 V DC
Analogue output range0...10 V 14 bits
Discrete output voltage10...30 V
Output short-circuit protectionWith discrete output
Output overload protectionWith discrete output
Discrete input number8 IEC 1131-2 Type 2
[Us] rated supply voltage24 V 19.2...30 V DC
Analogue input voltage<= 15 V
Input voltage limits3...32 V
Discrete input logicPositive
Voltage state 0 guaranteed<= 5 V discrete input
Voltage state1 guaranteed>= 11 V discrete input
Current state 0 guaranteed<= 2 mA discrete input
Current state 1 guaranteed>= 6 mA discrete input
Maximum overvoltage on input45 V 10 s discrete input
Input resistance> 1 MOhm analogue input circuit
Output load>= 2 kOhm 0...10 V analogue output
Conversion time<= 0.75 ms analogue input circuit
1.2 ms analogue output
Conversion error0,002 0...10 V 77 °F (25 °C) analogue input circuit
+/- 0.4 % 0...10 V 77 °F (25 °C) analogue output
Fail stateHold analogue output
Reset to zero analogue output
Discrete output typeTransistor
Discrete output logicPositive
Discrete output current2 A per group
2 A per module
0.25 A per point
Leakage current< 0.4 mA DC 30 V discrete output
Voltage drop< 0.4 V 0.25 A at state on discrete output
Surge current2.5 A 1 ms discrete output
Response time1.05 ms from state 1 to state 0 discrete output
1.2 ms from state 0 to state 1 discrete input
1.2 ms from state 0 to state 1 discrete output
1.2 ms from state 1 to state 0 discrete input
Isolation voltage500 V 1 min between analogue I/O and operating voltage
500 V 1 min between operating voltage and I/O from ground
Power dissipation in W<= 6 W
MarkingCE
Local signalling4 LEDs channel status
Electrical connection2 connectors for removable terminal blocks
Current consumption400 mA 24 V DC
Depth1.87 in (47.5 mm)
Height4.92 in (125 mm)

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 170ANR12090 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2 year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 170ANR12090 we also repair drives, motors, PLCs and more, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 170ANR12090, just let us know and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped today?

  • Order within the next 3 hours and 8 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 170ANR12090 for credit when ordering from MRO Electric

What is the minimum load for an analog output on the 170ANR12090?

  • The minimum load is 2k ohm for an analog output on 170ANR12090.
MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Additional Information

Product Description

The 170ANR12090 is a

Distributed Analog/Discrete I/O Modicon Momentu... that is manufactured by Schneider Electric. These products are manufactured in France and are designed for Material handling, packaging, and textile machines usage. All of the products in the modicon-communication line come with a 2 year warranty from MRO Electric. We also carry Momentum from other manufacturers such as Modicon and ABB.
