Part Number | 6AV2124-0GC01-0AX0 |
Manufacturer | Siemens |
Type | HMIs |
Model # | 6AV21240GC010AX0 |
Warranty | 2 Year |
Panel family | TP700 |
Display Screen | 7 inch |
Memory | 12 MB |
OS | Windows CE 6.0 |
Communication | Profinet and MPI/Profibus DP |
Supply input | 24 V |
Input Current | 0.5 A |
Display Design | TFT |
Display width | 152.4 mm |
Display height | 91.4 mm |
Resolution | 800 Horizontal, 480 Verticle |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed 6AV2124-0GC01-0AX0 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this 6AV2124-0GC01-0AX0 we also repair a wide range of other Siemens products, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty 6AV2124-0GC01-0AX0, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped tomorrow?
Ask about exchanging your faulty 6AV2124-0GC01-0AX0 for credit when ordering from MRO Electric

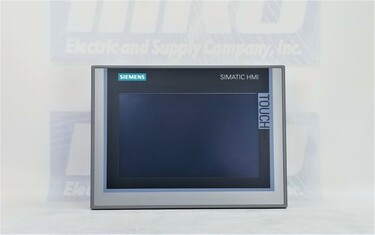

The Siemens 6AV2124-0GC01-0AX0 is a cutting-edge human-machine interface (HMI) solution within the SIMATIC HMI TP700 Comfort series, designed to optimize industrial process control and monitoring.
The 6AV2124-0GC01-0AX0 bridges the gap between operators and complex automation systems, translating real-time machine data into clear, actionable visualizations. With its robust specifications, intuitive touch operation, and seamless integration capabilities, this HMI is engineered to enhance efficiency and reliability in automation environments.
From small-scale machine stations to large distributed control systems, the 6AV2124-0GC01-0AX0 adapts easily, making it a versatile choice across industries such as manufacturing, energy, transportation, and water treatment.
At the core of the TP700 Comfort is a 7-inch widescreen TFT display with a resolution of 800 x 480 pixels. The screen supports 16 million colors, ensuring clear and vivid visuals for monitoring critical industrial processes. This high color depth allows for detailed trend charts, alarm indicators, and process schematics to be displayed without visual distortion, helping operators identify changes or anomalies at a glance.
Its advanced touch operation provides an intuitive user interface, allowing operators to navigate seamlessly through different control panels and functionalities. The responsive touchscreen remains accurate even after prolonged use in industrial environments, where gloves, dust, and vibration are common. The absence of physical function keys ensures a sleek design while maintaining operational ease. By removing mechanical buttons, the 6AV2124-0GC01-0AX0 device reduces points of mechanical failure and supports easier cleaning in dust-prone or washdown areas.
The 6AV2124-0GC01-0AX0 operates on a 24V DC power supply and typically consumes 12W. It features an X86 processor, supporting a smooth and responsive user experience. This processing power allows the HMI to handle multiple data streams simultaneously, ensuring operators see the most up-to-date information without lag.
With built-in flash memory, RAM, and 12 MB of configuration memory, the 6AV2124-0GC01-0AX0 offers sufficient storage for industrial applications. This onboard storage supports complex visualization projects, large image files, and custom scripts, while maintaining fast screen changes and minimal downtime during operation.
Connectivity is another strong suit of the TP700 Comfort. It includes two industrial Ethernet ports with switch capability, one RS 485 interface (combined with RS 422), two USB 2.0 ports, and two SD card slots for extended storage and data transfer. These ports provide flexibility for connecting to PLCs, barcode scanners, data loggers, or other peripheral devices without needing additional network hardware.
The 6AV2124-0GC01-0AX0 supports various communication protocols, including PROFINET, PROFIBUS, and MPI, ensuring seamless integration with industrial networks. Support for these common protocols means the panel can be easily retrofitted into existing systems or used in new installations without extensive rewiring.
Additionally, the 6AV2124-0GC01-0AX0 is compatible with standard web technologies such as HTTP, HTTPS, HTML, XML, CSS, ActiveX, and JavaScript. This allows for web-based visualization, enabling remote monitoring and control through secure browser connections, further extending operational flexibility.
The TP700 Comfort is built to withstand industrial environments. Its front panel is IP65-rated for dust and water resistance, while the rear has an IP20 rating. This makes the 6AV2124-0GC01-0AX0 suitable for installation in areas where occasional splashes, dust ingress, or cleaning operations may occur, such as food and beverage plants or manufacturing lines.
The 6AV2124-0GC01-0AX0 complies with industrial EMC standards, making it a reliable solution for demanding applications. The device holds multiple certifications, including CE, cULus, RCM, and KC Approval, ensuring compliance with international safety standards. This multi-certification profile ensures the panel meets regional regulatory requirements, allowing global companies to standardize on a single hardware platform across multiple facilities.
For installation, the TP700 Comfort must be placed in a location easily accessible to operators and protected from extreme environmental conditions. When mounted in control cabinets or operator stations, careful consideration should be given to cable routing and ventilation to ensure long-term reliability.
The 6AV2124-0GC01-0AX0 operates efficiently within an ambient temperature range of 0 to 50°C and can be stored or transported within a broader temperature range of -20 to 60°C. It supports up to 90% relative humidity, making it suitable for various industrial settings. This tolerance allows the 6AV2124-0GC01-0AX0 to perform reliably in both climate-controlled environments and more challenging spaces, such as warehouses or outdoor enclosures with environmental protection.
To configure the 6AV2124-0GC01-0AX0 and the TP700 Comfort, users can leverage Siemens’ WinCC Comfort V11 software, which enables the interface and control settings to be customized. This software provides a library of ready-made elements, templates, and scripts, reducing engineering time and helping maintain consistency across multiple HMIs.
Thorough testing to validate display functionality and touch input accuracy is recommended before full-scale deployment. Testing can include simulating alarm conditions, verifying network communication, and confirming compatibility with connected PLCs or controllers, ensuring smooth integration into the production process.
The Siemens 6AV2124-0GC01-0AX0 is engineered for optimal performance in demanding industrial environments. Below are its key technical specifications:
What is the primary function of the Siemens 6AV2124-0GC01-0AX0?
The TP700 Comfort is an HMI for industrial automation. Its high-resolution touch display allows operators to monitor and control machinery.
Can this HMI be used in harsh industrial environments?
Yes, the TP700 Comfort is designed for industrial applications. The front panel has IP65 protection to withstand dust and water exposure.
Does the device support multi-touch gestures?
The TP700 Comfort features a single-touch screen but provides an intuitive user experience with its responsive interface.
What software is required for configuration?
The device is configured using Siemens’ WinCC Comfort V11 software, which enables users to set up custom displays and controls.
How does the TP700 Comfort connect to other industrial devices?
It supports PROFINET, PROFIBUS, MPI protocols, and Ethernet and USB connectivity for seamless integration.
Is the TP700 Comfort compatible with third-party automation systems?
While optimized for Siemens automation systems, it may integrate with third-party devices using standard industrial protocols.
What is the lifespan of the display backlight?
The display backlight has an estimated lifespan of 80,000 hours, ensuring long-term usability.
Can multiple TP700 units be networked together?
Multiple units can be connected through Ethernet interfaces for synchronized operation in complex automation setups.
What is the power consumption of the device?
The typical power consumption is 12W, making it energy-efficient for industrial use.
How should I troubleshoot a non-responsive touch screen?
Ensure the screen is clean, check the power supply and configuration settings, and restart the device if necessary. If issues persist, Siemens technical support can assist further.
The Siemens 6AV2124-0GC01-0AX0 is a powerful and efficient industrial automation solution. It offers a user-friendly interface, high-resolution display, and seamless connectivity to optimize manufacturing processes. Its robust design and advanced features make it a valuable asset for modern industrial environments.
