6AV2124-0GC13-0AX0

2-year Warranty

Same Day Shipping

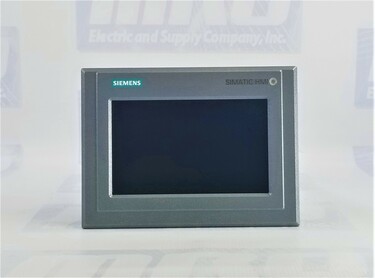

Siemens 6AV2124-0GC13-0AX0

SIMATIC HMI TP700 COMFORT OUTDOOR PANEL, TOUCH OP, 7" WIDESCREEN-TFT-DISPLAY
5/5
3 ratings

Select Condition

Refurbished

3 in stock

New

3 in stock

$2,279.00

Request a formal quote

  • Ships Today
  • 2 Year Warranty
  • Free Shipping
Part Number6AV2124-0GC13-0AX0
ManufacturerSiemens
TypeHMIs
Model #6AV21240GC130AX0
Warranty2 Year
DesignationTP700 Comfort Outdoor
DisplayTFT, bonded, daylight-readable
Diagonal7 in.
Width152.4 mm
Height91.4 mm
Colors16777216
Horizontal Resolution800 pixel
Vertical Resolution480 pixel
Mounting positionVertical
Supply voltageDC
Rated value (DC)24 V
Range lower limit (DC)19.2 V
Range, upper limit (DC)28.8 V
ProcessorX86
MemoryFlash RAM
Memory data12 Mbyte
Interfaces1; RS 422 / 485 combined, USB 2.0
ProtocolsPROFINET, IRT, PROFIBUS, EtherNet/IP MPI
Front IPIP66
Rear IPIP20

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 6AV2124-0GC13-0AX0 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 6AV2124-0GC13-0AX0 we also repair a wide range of other Siemens products, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 6AV2124-0GC13-0AX0, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 1lb

Want it shipped tomorrow?

  • Order within the next 19 hours and 5 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 6AV2124-0GC13-0AX0 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Siemens 6AV2124-0GC13-0AX0 Overview

Introduction:

Part Number 6AV2124-0GC13-0AX0, manufactured by Siemens, is a Human-Machine Interface (HMI) unit designed to offer robust functionality and durability in outdoor environments.

Design and Display:

The TP700 Comfort Outdoor designation signifies its suitability for outdoor use. It features a TFT display with bonded technology, ensuring excellent readability even in daylight conditions. With a diagonal size of 7 inches, dimensions of 152.4 mm width, and 91.4 mm height, it provides a compact yet sufficiently large interface. The display supports a wide range of colors, up to 16,777,216, ensuring vivid and detailed visuals. Its horizontal resolution stands at 800 pixels, complemented by a vertical resolution of 480 pixels, delivering sharp and clear imagery.

Mounting and Power Supply:

Designed for vertical mounting, the TP700 Comfort Outdoor seamlessly integrates into various setups. It operates on a DC power supply with a rated value of 24 V. The acceptable range spans from 19.2 V to 28.8 V, providing flexibility in power provision.

Processing Power and Memory:

Equipped with an X86 processor, this HMI unit delivers efficient performance for diverse applications. It incorporates Flash RAM with a capacity of 12 Mbyte, ensuring ample storage for programs, data, and configurations.

Interfaces and Protocols:

The TP700 Comfort Outdoor is designed to facilitate seamless communication and integration within industrial environments. It features interfaces including 1 RS 422 / 485 combined port and USB 2.0 connectivity, enabling versatile connectivity options. Moreover, it supports a range of protocols including PROFINET, IRT, PROFIBUS, and EtherNet/IP MPI, ensuring compatibility with various industrial communication standards.

Protection and Durability:

Built to withstand outdoor conditions, this HMI unit boasts a front IP rating of IP66, indicating high resistance to dust and water ingress. The rear IP rating is IP20, providing additional protection to internal components. These ratings ensure reliable operation even in harsh environmental conditions, enhancing longevity and reliability.

Applications:

The TP700 Comfort Outdoor finds applications in a wide array of industrial settings where outdoor operation is required. It serves as a crucial interface between operators and machines, facilitating control, monitoring, and visualization of processes. Its daylight-readable display, coupled with robust construction, makes it ideal for use in environments such as manufacturing plants, warehouses, and outdoor installations.

FAQ

1. What is the display size of the Siemens 6AV2124-0GC13-0AX0?

The display size is 7 inches diagonally, ensuring clear visibility and usability.

2. Does it support daylight-readable display?

Yes, the TFT display is bonded and daylight-readable, ensuring optimal visibility even in bright outdoor conditions.

3. What are the power supply specifications?

The HMI operates on a 24V DC supply voltage, with a range between 19.2V to 28.8V.

4. Which protocols are supported by the device?

The HMI supports protocols such as PROFINET, IRT, PROFIBUS, and EtherNet/IP MPI, facilitating seamless integration into various industrial setups.

5. What are the dimensions of the device?

The HMI measures 152.4mm in width and 91.4mm in height, offering a compact yet functional design suitable for outdoor installations.
