Siemens 6AV2124-0UC02-0AX0

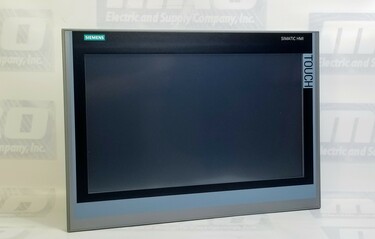

The Siemens panel part 6AV2124-0UC02-0AX0 is a SIMATIC HMI TP1900 Comfort Panel. It has a 19-inch touch operation widescreen panel with a TFT display. The touch operation panel display has 16 million colors to enrich viewing. The Siemens panel 6AV2124-0UC02-0AX0 communicates with both the PROFINET interface and MPI/PROFIBUS DP interface communication modality. The 24 MB configuration memory affords you plenty of space for the memory needs of your system. These products are manufactured in Germany and are designed for Automotive, aerospace, power generation, and electronics usage. They come with a 2-year warranty from MRO Electric. We also carry HMIs from other manufacturers such as FANUC and Yaskawa.

Features

This is a DC supply voltage comfort panel that has a dc rated value of 24 V with the range lower limit being 19.2 V and the range in the upper limit being 28.8 V. This Siemens unit has a rated input current value of 1.3 A. The starting current inrush I²t is 0.5 A²·s. The X86 processor has a 32 W active power input type.  It has 24 Mbyte memory available for your use and Flash/RAM.

Siemens panel 6AV2124-0UC02-0AX0 boasts an 18.5 in. diagonal screen display. The width of the screen is 409.8 mm while the height is 230.4 mm display with the TFT design. The resolution of this Siemens panel module has been increased with the 1366 pixels in its horizontal image resolution and the vertical image resolution there are 768 pixels. The MTBF backlighting on this unit is 50000 h. and is able to be dimmed at 100 % which is helpful for you in different situations where dimming would be of value.

This Siemens panel module includes an alphanumeric keyboard that employs touch screen capabilities. Utilizing 40 touch buttons as S7 input I/O, these touch direct keys give you access to the module commands.

How to use a Siemens panel 6AV2124-0UC02-0AX0

This touch screen unit works best when it is installed in a mounting position that is vertical.  It also has the capability of being mounted in portrait format as well as landscape format. Keep in mind that there is a maximum of 35° inclination that is allowable with the installation of this unit.  If there is more than the allotted 35° of inclination, an external ventilation system must be employed to ensure proper use and to avoid overheating.

The audio output is delivered through a built-in speaker.

The time of day is visually available on the real-time hardware clock which has a typical backup life of 6 weeks. There is a software clock on board and the unit is synchronizable.

Advantages

What are the interface modalities of this Siemens 6AV2124-0UC02-0AX0 panel module? Interfacing is one of the most important factors in your system as these parts communicate critical information. This module has two different ports. It has a switch port available and an independent port.  It also comes with two USB interface modes. One is the USB 2.0 and the other one is the MINI B USB port which is a 5-pole. This panel module has another interface feature.  Two slots are on the module that is available for SC cards to be utilized. The protocols for this module are:

● TCP/IP

● DHCP

● SNMP

● DCP

● LLDP

The Siemens 6AV2124-0UC02-0AX0 SIMATIC HMI TP1900 Comfort Panel comes with a two- year warranty.

Contact Us Today For More Information About Siemens Products

Check out the rest of our Siemens product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or emailing us at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like 6AV2124-0UC02-0AX0, take a look at more from our HMIs line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our 6AV2124-0UC02-0AX0 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
