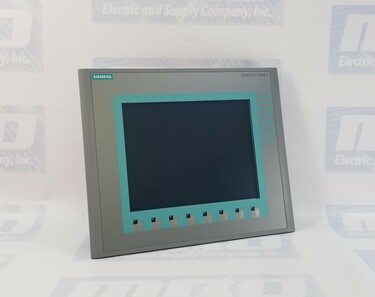

SIMATIC HMI KTP1000 BASIC COLOR DP, BASIC PANEL, KEY AND TOUCH 10 TFT DISPLAY
Part Number | 6AV6647-0AE11-3AX0 |
Manufacturer | Siemens |
Type | HMIs |
Model # | 6AV66470AE113AX0 |
Warranty | 2 Year |
Range | SIMATIC Panel |
Category | HMI KTP1000 |
Panel | BASIC COLOR DP |
Operation | Key and touch |
Display | TFT |
Interface | MPI/PROFIBUS DP |
Colors | 256 Colors |
Configuation | WINCC FLEXIBLE 2008 SP2 COMPACT/ WINCC BASIC V11/ STEP7 BASIC V11 |
Screen Diagonal | 10.4 in |
Resolution | 640 Horizontal, 480 Vertical |
MTBF Backlighting | 50000 h |
Function keys | 8 keys |
Keyboard | Alphanumeric |
Supply voltage | DC |
Design | Touchscreen |
Rated V DC | 24 V |
Input current | 0.6 A |
Power consumption | 15 W |
Processor | ARM RISC 32-bit |
Memory | Flash/ RAM |
Height | 275 mm |
Width | 335 mm |
Depth | 60 mm |
User data | 1024 kbyte |
Audio output | Buzzer |
Interface | RS 485, RS 422 |
Protocol | PROFIBUS, MPI, MODBUS |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed 6AV6647-0AE11-3AX0 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this 6AV6647-0AE11-3AX0 we also repair a wide range of other Siemens products, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty 6AV6647-0AE11-3AX0, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped tomorrow?
Ask about exchanging your faulty 6AV6647-0AE11-3AX0 for credit when ordering from MRO Electric
The 6AV6647-0AE11-3AX0 model, also known as the SIMATIC HMI KTP1000 BASIC COLOR DP, is a feature-rich Human Machine Interface (HMI) panel designed by Siemens. Combining key and touch operation, a 10" TFT display with 256 colors, and advanced communication interfaces, this HMI panel is an integral part of industrial automation systems, facilitating seamless interaction between operators and machines.
The device features a 10.4-inch TFT display with a resolution of 640x480 pixels, offering clear and detailed visuals. The display has a width of 211.2mm and a height of 158.4mm, and it supports 256 colors, allowing for precise and intuitive visualization of process data.
The backlighting system boasts an MTBF (Mean Time Between Failures) of 50,000 hours at 25°C. While the backlight isn't dimmable, its reliability ensures consistent performance over extended periods of operation.
The control panel comes equipped with 8 function keys that allow operators to execute various commands quickly. While these keys don't feature LEDs, they offer tactile feedback for intuitive operation.
The panel provides both a numeric and an alphanumeric keyboard, accessible through the onscreen interface. This enables flexible data entry based on specific operational requirements.
With a design centered around touch operation, the panel offers an intuitive interface for interacting with machinery and processes. This touch functionality streamlines the navigation and execution of tasks.
The panel can be mounted in landscape format, making it adaptable to different installation configurations. Its compact size and flexibility in installation make it suitable for a wide range of industrial environments.
The panel operates on DC supply voltage, specifically 24V. It can tolerate a permissible voltage range from 19.2V to 28.8V, ensuring stable operation even in cases of slight voltage fluctuations.
The device has a typical power consumption of 15W, contributing to energy-efficient operations.
Powered by a 32-bit ARM RISC processor, the panel delivers efficient performance. It includes Flash and RAM, with 1024KB of usable memory for storing user data.
The panel offers interfaces for communication, including an RS 485 interface and an RS 422 interface. These interfaces enable connectivity with other devices and systems in the automation network.
The panel supports various protocols, including PROFIBUS and MPI, enhancing their compatibility and integration with different industrial communication networks.
The panel can operate within a temperature range of 0°C to 50°C in vertical mounting and 0°C to 40°C at its maximum tilt angle. This operational flexibility allows it to perform reliably in diverse environments.
The panel is configurable using software such as WinCC Flexible and STEP 7 Basic. These software tools enable users to tailor the HMI panel to their specific automation needs.
What is the Siemens 6AV6647-0AE11-3AX0 HMI Panel?
The 6AV6647-0AE11-3AX0 is part of Siemens' SIMATIC HMI KTP1000 Basic series. It is a 10.4-inch color display panel that supports key and touch operation. Designed for industrial applications, it facilitates user interaction with automated systems via a 256-color TFT screen.
What type of interface does this HMI support?
The Siemens 6AV6647-0AE11-3AX0 features MPI, PROFIBUS DP, RS 485, and RS 422 interfaces. These provide reliable communication with connected devices and support multiple industrial protocols, such as PROFIBUS, MPI, and MODBUS.
What software is used to configure this HMI?
This HMI is configured using WINCC FLEXIBLE 2008 SP2 COMPACT, WINCC BASIC V11, or STEP7 BASIC V11. These software solutions allow efficient programming and customization of the display and functions.
What is the resolution and screen size of the 6AV6647-0AE11-3AX0?
The panel has a screen diagonal of 10.4 inches and a resolution of 640 horizontal x 480 vertical pixels. This provides clear visibility and allows for efficient process monitoring.
What power specifications does this HMI have?
The panel operates on 24 V DC, has an input current of 0.6 A, and consumes 15 W, making it energy-efficient for industrial environments.
What kind of processor and memory does the HMI use?
The 6AV6647-0AE11-3AX0 is powered by an ARM RISC 32-bit processor equipped with flash and RAM for program execution. It also includes 1024 kbytes of user data storage.
QWhat are the panel's dimensions?
The panel is 275 mm high, 335 mm wide, and 60 mm deep, making it compact and easy to integrate into existing systems.
How long does the backlighting last?
The panel’s TFT display has a Mean Time Between Failures (MTBF) of 50,000 hours for the backlighting, ensuring longevity in industrial settings.
Does the HMI have any audio output?
Yes, the 6AV6647-0AE11-3AX0 includes a buzzer for audio alerts, adding another user interaction layer.
What warranty and shipping options are available for this product?
MRO Electric and Supply offers a 2-year warranty on the Siemens 6AV6647-0AE11-3AX0. Free shipping is also provided when purchasing from MRO Electric.
Siemens products are manufactured in Germany and are designed for Automotive, aerospace, power generation, and electronics usage. They come with a 2-year warranty from MRO Electric. We also carry HMIs from other manufacturers such as FANUC and Yaskawa.
