Siemens 6ES7231-7PD22-0XA0

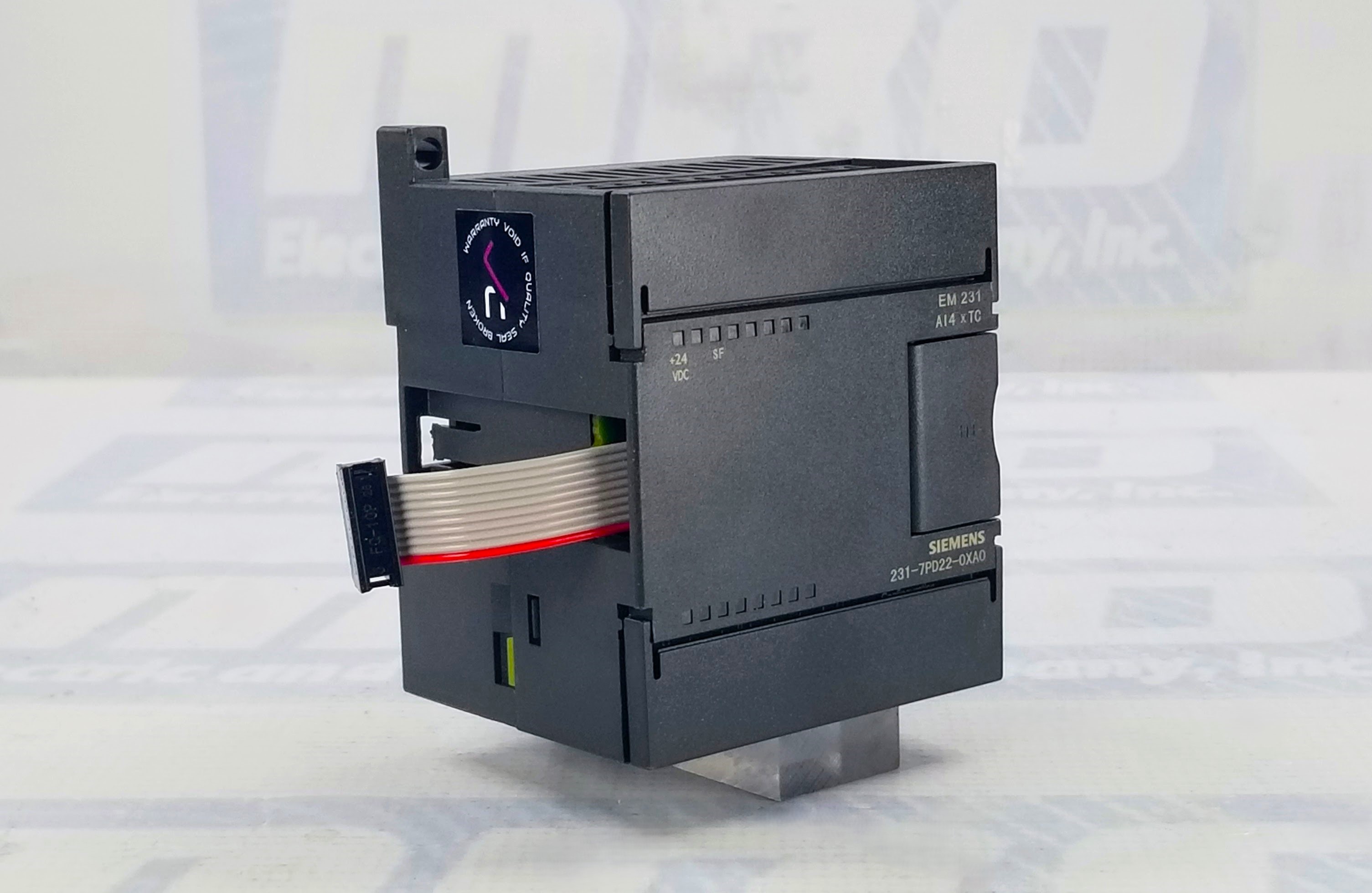

Siemens 6ES7231-7PD22-0XA0 Analog Input Module

The Siemens 6ES7231-7PD22-0XA0 is a high-precision analog input module explicitly designed for the SIMATIC S7-200 series, particularly the S7-22x CPU range. The EM 231 Thermocouple input module features four analog input channels optimized for temperature measurement using thermocouples. It operates at a 24V DC power supply and is tailored for applications requiring accurate and reliable temperature monitoring and control. With its robust design and compatibility with the S7-200 family, this module is ideal for industrial environments where precision and stability are critical.

Precision Temperature Monitoring for Demanding Applications

The 6ES7231-7PD22-0XA0 is engineered to interface directly with thermocouple sensors, offering four analog input channels for temperature data acquisition. This allows it to monitor multiple temperature points simultaneously with high accuracy, making it a perfect fit for process control, HVAC systems, industrial ovens, and other temperature-sensitive operations. The module ensures consistent signal interpretation from thermocouples, which are widely used in industrial settings due to their durability and wide temperature range.

Tailored for the SIMATIC S7-200 Series

This EM 231 module integrates seamlessly with Siemens S7-22x CPUs as part of the S7-200 automation platform. It maintains the modular philosophy of the S7-200 line, which enables users to expand their systems with various input, output, and communication modules depending on their specific needs. The module's plug-and-play design simplifies setup and configuration while maintaining Siemens' standards for reliability and performance.

Rugged and Compact Design

Despite its sophisticated functionality, the 6ES7231-7PD22-0XA0 is compact and durable, suitable for use in space-constrained control panels and demanding environments. Its sturdy housing protects against vibration and electrical interference, ensuring long-term stability and consistent data accuracy. The 24V DC power supply makes integrating into standard industrial power architectures easy, further simplifying implementation.

Value with Reliability

Purchasing from MRO Electric and Supply includes a 2-year warranty and free shipping, providing peace of mind and dependable service. Every unit is tested to meet quality and performance expectations, and MRO's support ensures you have access to expert help when integrating the module into your system. Whether expanding an existing setup or designing a new one, this module provides reliable performance at a cost-effective price.

Frequently Asked Questions (FAQ)

What type of signals does this module accept?

The 6ES7231-7PD22-0XA0 is designed to accept thermocouple inputs for temperature measurement.

How many input channels does it have?

It features four analog input channels for thermocouples.

What power supply is required for the module?

The module operates on a standard 24V DC power supply.

Is it compatible with all S7-200 CPUs?

It is specifically intended for use with the S7-22x CPU series within the S7-200 family.

Can I use it with RTD sensors instead of thermocouples?

No, this model is designed solely for thermocouple inputs. Siemens offers other modules for RTD compatibility.

Is there a need for an external signal conditioning unit?

No, the module directly accepts thermocouple inputs and processes the signal internally.

What applications is this module best suited for?

It's ideal for any industrial process that requires accurate temperature monitoring, such as chemical processing, food production, and HVAC systems.

Does it support hot-swapping?

No, the S7-200 system generally does not support hot-swapping. Always power down before installation or removal.

How accurate is this module for temperature readings?

It offers high accuracy and is suitable for most industrial temperature control applications, depending on the thermocouple type.

Is a warranty included with the purchase?

MRO Electric and Supply provides a 2-year warranty and free shipping on this product.
