Siemens 6ES7232-0HB22-0XA0

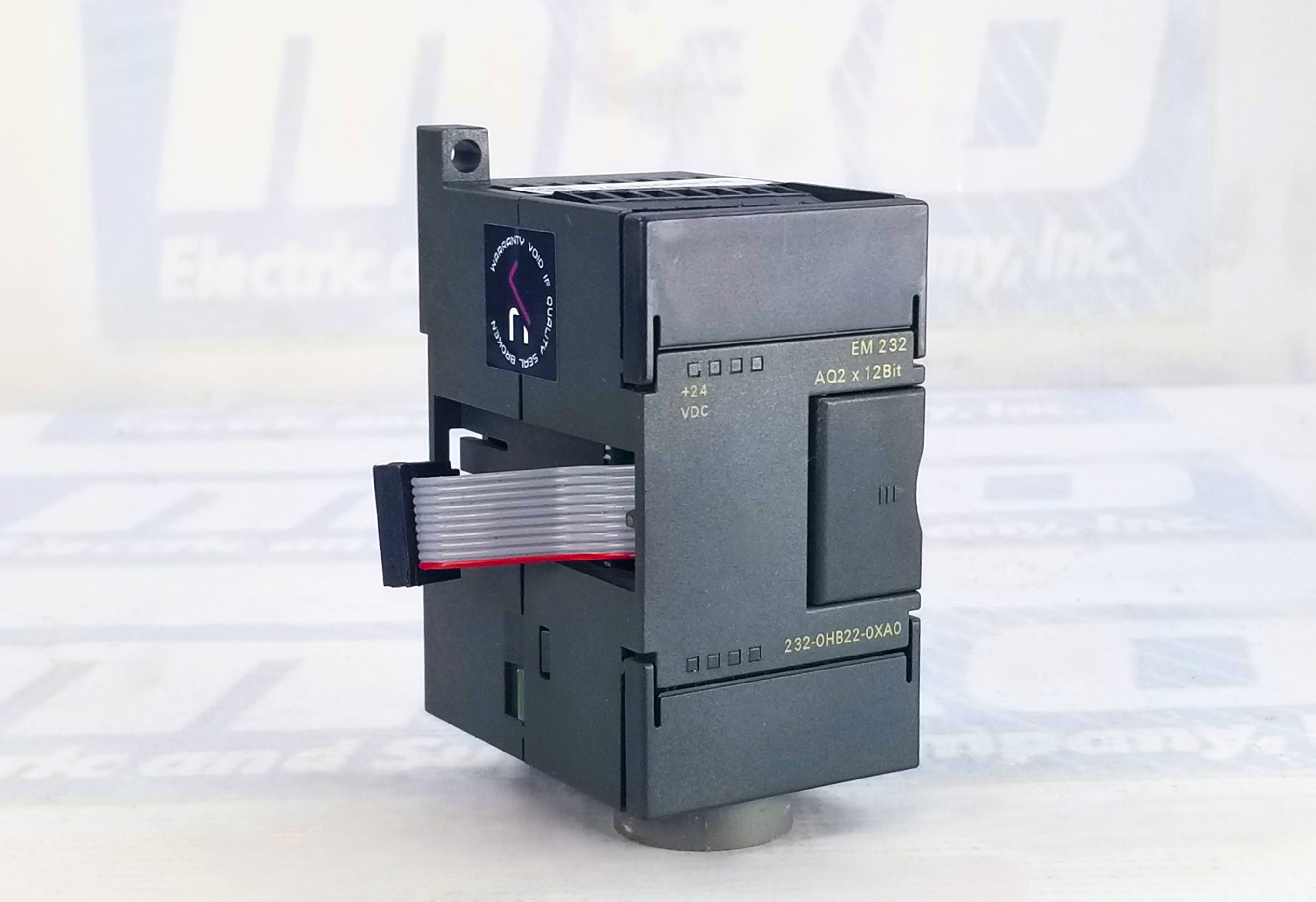

Siemens 6ES7232-0HB22-0XA0 Analog Output Module

The Siemens 6ES7232-0HB22-0XA0 is a reliable and precise analog output module designed exclusively for Siemens S7-22x CPUs. This compact I/O module is engineered to deliver high-quality signal output in automation environments where analog control is essential. With two analog output channels (2AQ) and a 12-bit digital-to-analog converter, the module ensures accurate signal conversion for smooth and consistent operation of actuators, control valves, and other analog-driven devices.

Precision and Performance in Analog Output

Operating within a 21 to 28 VDC voltage range, the 6ES7232-0HB22-0XA0 delivers dependable analog signals for various control tasks. Its 12-bit resolution provides fine granularity in output, allowing for more nuanced and responsive adjustments in processes that require analog control, such as temperature regulation, fluid flow management, or motor speed modulation. The dual output design enables the module to support two independent analog devices simultaneously, increasing its versatility in automation setups.

System Compatibility and Integration

One of the key features of this module is its compatibility with Siemens S7-22x CPUs, ensuring seamless integration into the S7-200 family of programmable logic controllers. This tight integration simplifies configuration, programming, and diagnostics, which are all managed through Siemens STEP 7-Micro/WIN software. Designed with industrial application in mind, the 6ES7232-0HB22-0XA0 is built for durability and long-term performance in demanding environments.

Reliability and Support from MRO Electric

Purchasing this module through MRO Electric and Supply includes the added benefit of a 2-year warranty, offering confidence and peace of mind for your automation investments. In addition to warranty coverage, MRO Electric provides free shipping, making this a cost-effective and convenient solution for both new system installations and component replacements. Whether upgrading existing systems or developing new control schemes, this analog output module represents an essential building block for any S7-22x-based application requiring analog signal control.

Frequently Asked Questions (FAQ)

What does the Siemens 6ES7232-0HB22-0XA0 module do?

This module provides two analog output channels to control analog devices using a 12-bit digital-to-analog signal conversion.

Can I use this module with any Siemens PLC?

No, this module is designed explicitly for S7-22x CPUs in the S7-200 series and is incompatible with other Siemens PLC families.

What voltage does the module operate on?

It operates within a voltage range of 21 to 28 VDC, which must be supplied to the module for proper functioning.

What is the resolution of the analog outputs?

The module features a 12-bit resolution, allowing for 4,096 discrete levels of output signal accuracy.

How many analog devices can I connect to this module?

The module provides two analog output channels (2AQ), so you can connect up to two analog devices.

Is special software required to configure the module?

Configuration and programming are performed using Siemens' STEP 7-Micro/WIN software, designed for the S7-200 series.

What kind of signals does it output?

The module outputs analog voltage or current signals, depending on your configuration and the needs of your connected devices.

Does it come with a warranty?

MRO Electric offers a 2-year warranty on this product, covering defects and ensuring performance reliability.

Is shipping included in the purchase?

MRO Electric provides free shipping with this module, adding value and convenience for customers.

Can this module be used for process control applications?

Absolutely. It is ideal for process control tasks that require analog signal outputs, such as HVAC systems, industrial mixing, or motor speed regulation.
