SINAMICS S120 DRIVE SYSTEM CHASSIS FORMAT BRAKING RESISTOR - BRAKING MODULE - 510-720V DC, 1.5KW / 100KW
Available
Free Shipping
2 Year MRO warranty
| Part Number | 6SL3100-1BE31-0AA0 |
| Manufacturer | Siemens |
| Type | AC Drives |
| Model # | 6SL31001BE310AA0 |
| MRO Warranty | 2 Year |
| Product Line | SINAMICS S120 |
| Product Type | Braking Resistor / Braking Module |
| Format | Chassis Format |
| DC Voltage Range | 510–720 V DC |
| Rated Power | 1.5 kW |
| Peak / Braking Power | Up to 100 kW |
| Function | Energy dissipation during braking |
| Cooling Method | Air-cooled |
| Mounting Type | Control cabinet (chassis-mounted) |
| System Compatibility | SINAMICS S120 drive systems |
| Typical Applications | CNC, servo drives, spindle drives |
| Use Case | Regenerative braking energy control |
| Industrial Rating | Heavy-duty industrial automation |
| Condition | Tested / Surplus |
| Availability | Immediately Available |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed 6SL3100-1BE31-0AA0 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year MRO warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this 6SL3100-1BE31-0AA0 we also repair a wide range of other Siemens products, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty 6SL3100-1BE31-0AA0, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped tomorrow?
Ask about exchanging your faulty 6SL3100-1BE31-0AA0 for credit when ordering from MRO Electric

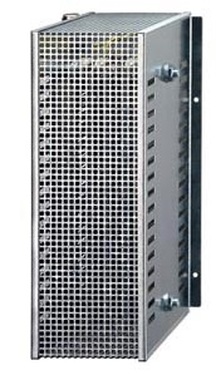

The Siemens 6SL3100-1BE31-0AA0 is a chassis-format braking resistor module designed for SINAMICS S120 drive systems, providing reliable energy dissipation during rapid deceleration and braking events. Operating within a 510–720 V DC range, this module safely converts regenerative energy into heat, protecting drive components and maintaining stable system performance. With a rated power of 1.5 kW and braking capability up to 100 kW, it is ideal for high-demand industrial motion applications.
This braking module is specifically engineered for SINAMICS S120 chassis systems, enabling direct installation in control cabinets without additional external hardware. It works in conjunction with Siemens braking choppers to manage excess DC bus energy generated during braking. This makes it an essential component in applications where frequent start-stop cycles or rapid deceleration occur, such as CNC machines, servo-driven automation, and high-speed production equipment.
Built for demanding environments, the 6SL3100-1BE31-0AA0 delivers consistent braking performance under heavy loads. Its air-cooled design supports continuous industrial operation while minimizing maintenance requirements. For facilities maintaining or extending the life of existing SINAMICS S120 systems, this module provides a dependable replacement option without requiring system redesign or upgrades.
Common applications include:
CNC machining centers
Servo and spindle drive systems
Robotics and motion control
Packaging and material handling equipment
Key benefits:
Efficient dissipation of regenerative braking energy
Protection against DC bus overvoltage
Chassis format for clean cabinet integration
Explicitly designed for SINAMICS S120 systems
Thoroughly tested and backed by MRO Electric
At MRO Electric, the Siemens 6SL3100-1BE31-0AA0 is in stock and ready to ship, supported by a 2-year warranty. Our technical specialists can assist with part selection, compatibility verification, and replacement guidance to minimize downtime and keep your automation systems running reliably.
What is the Siemens 6SL3100-1BE31-0AA0 used for?
It dissipates regenerative energy during braking in SINAMICS S120 drive systems.
What voltage range does it support?
510–720 V DC.
What is the rated power?
1.5 kW continuous, with braking power up to 100 kW.
Is this a braking resistor or a braking module?
It is a chassis-format braking resistor module used with braking choppers.
Which systems is it compatible with?
Siemens SINAMICS S120 drive systems.
Where is it typically installed?
Mounted inside industrial control cabinets.
Does it require additional cooling?
No, it uses air cooling suitable for cabinet installations.
Is this suitable for CNC machines?
Yes, it is commonly used in CNC, servo, and spindle drive applications.
Is this part still supported?
It is widely used as a replacement part for existing S120 systems.
Does MRO Electric provide a warranty?
Yes, it includes a 2-year MRO Electric warranty.
