Siemens 6SL3100-1DE22-0AA0

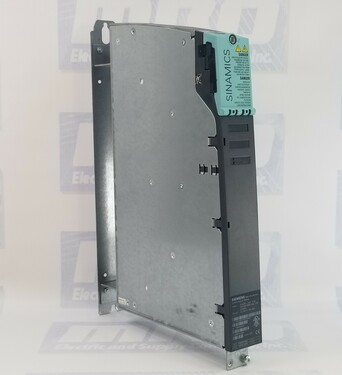

Siemens 6SL3100-1DE22-0AA0 SINAMICS Control Module – 20A

Centralized Control for SINAMICS Drive Systems

The Siemens 6SL3100-1DE22-0AA0 is a SINAMICS control module that manages and regulates power, motion, and communication in Siemens drive systems. Rated for 20 A and supporting 600 V DC and 480 V AC, three-phase input, this module serves as the core control component, coordinating connected drive modules for precise, reliable industrial motion control.

Seamless Integration with SINAMICS Architecture

This control module integrates directly into SINAMICS drive platforms, serving as the interface between power modules, motor modules, and external control systems. It processes control signals, monitors system performance, and ensures coordinated operation across servo and spindle drives. The modular design allows it to fit cleanly into existing control cabinets, making it ideal for both new installations and retrofit or replacement projects.

Industrial Performance and Reliability

Built to Siemens' industrial standards, the 6SL3100-1DE22-0AA0 delivers consistent control performance in demanding environments. Its air-cooled design supports continuous operation while minimizing system complexity. This module is commonly used in applications where high reliability, fast response times, and precise motion control are required, helping reduce downtime and maintain production efficiency.

Applications and Operational Benefits

Typical applications include:

CNC machine tools

Servo and spindle drive systems

Robotics and motion control platforms

Automated production and material handling systems

Key benefits include:

Centralized control for SINAMICS drive systems

Support for high-power, three-phase industrial environments

Reliable communication between drive components

Compact cabinet-friendly design

Backed by MRO Electric testing and warranty

Why Choose MRO Electric

MRO Electric stocks the Siemens 6SL3100-1DE22-0AA0 for immediate shipment, ensuring fast replacement for critical automation systems. Each module is thoroughly tested and includes a 2-year MRO Electric warranty. Our automation specialists can assist with compatibility verification, troubleshooting, and system integration support.

Frequently Asked Questions (FAQs)

What is the Siemens 6SL3100-1DE22-0AA0 used for?
It provides centralized control and coordination for SINAMICS drive systems.

What current rating does this module support?
20 amps.

What voltage levels does it operate at?
600 V DC and 480 V AC, three-phase.

Is this a power module or a control module?
It is a control module, not a power module.

Which systems is it compatible with?
Siemens SINAMICS drive systems.

Is it suitable for CNC machines?
Yes, it is widely used in CNC and motion control applications.

Can this be used as a replacement part?
Yes, it is commonly used as a direct replacement in existing SINAMICS installations.

Does it require exceptional cooling?
No, it uses standard air cooling suitable for control cabinets.

Is the unit tested before shipping?
Yes, all units are tested by MRO Electric.

What warranty is included?
A 2-year MRO Electric warranty.
