6SL3120-1TE23-0AA3

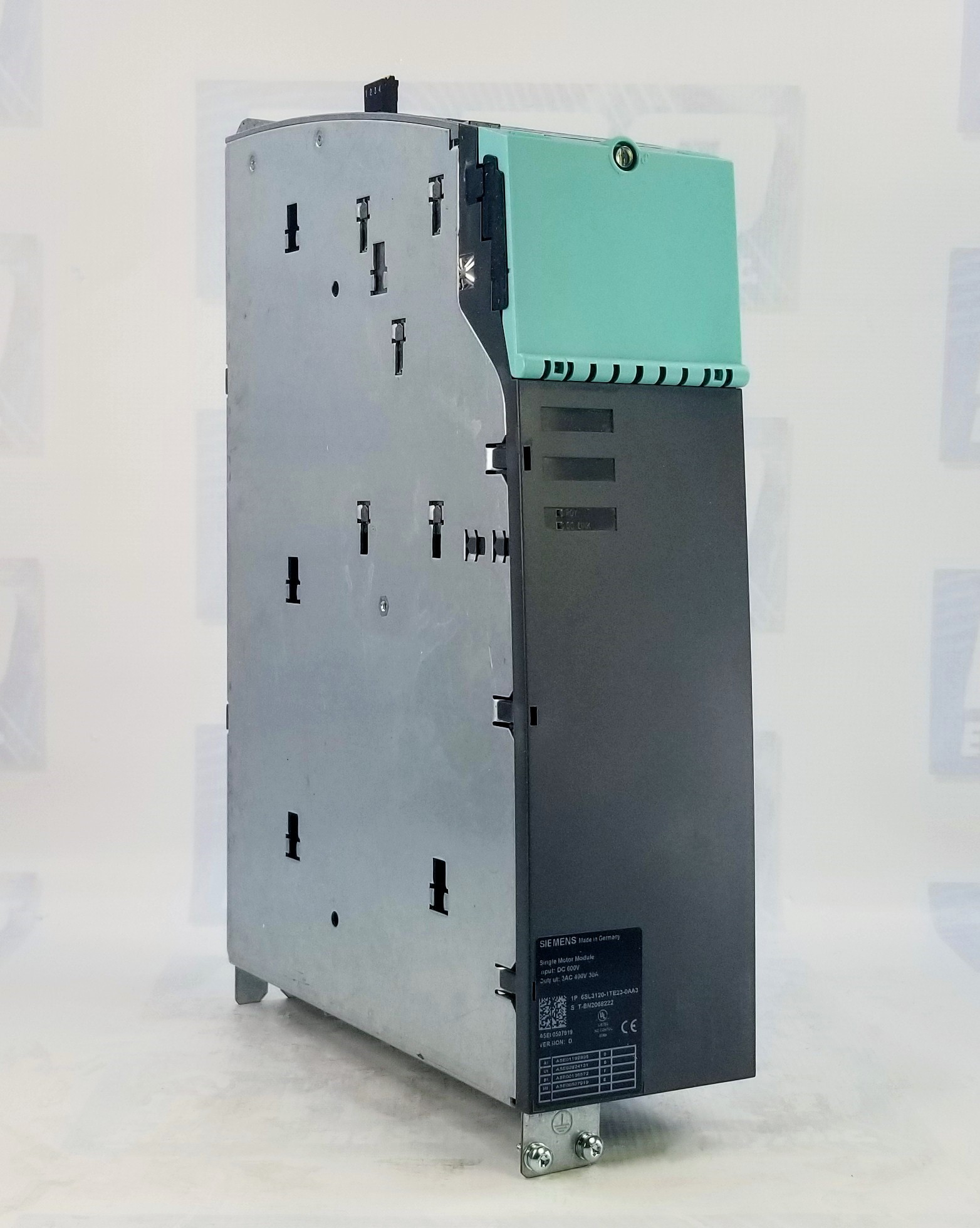

Siemens 6SL3120-1TE23-0AA3

Rated 5/5 on 2 reviews

Rate this product


MANUFACTURER: Siemens

DESCRIPTION: Booksize Format Single Motor Module - 510-720V DC, 16kW, 20HP, 30A

PRODUCT TYPE INFO: S120 Drive System

9 in stock


Free Shipping

2 Year warranty

Part Number6SL3120-1TE23-0AA3
ManufacturerSiemens
TypeAC Drives
Model #6SL31201TE230AA3
Warranty2 Year
DestinationSingle motor module
InterfaceDRIVE-CLiQ
Rated current30 A
ControlOpen/Closed loop
Air coolingInternal
Motor connectionX1
Brake connectionX11
Rated Voltage24 VDC
Max current 2 Amps
Terminal Spring loaded
Phase 3 Phase
Fan connectionX12
Sensor connecitonsX21/X22 EP

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 6SL3120-1TE23-0AA3 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 6SL3120-1TE23-0AA3 we also repair a wide range of other Siemens products, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 6SL3120-1TE23-0AA3, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 15lbs

Want it shipped tomorrow?

  • Order within the next 23 hours and 51 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 6SL3120-1TE23-0AA3 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Siemens 6SL3120-1TE23-0AA3 Overview

The 6SL31201TE230AA3 is a Single Motor Module with a current rating of 30 A. It is designed to function as an inverter, providing power to connected motors. The module is equipped with internal air cooling to maintain optimal operating temperatures. These products are manufactured in Germany and are designed for Automotive, aerospace, power generation, and electronics usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as FANUC and Yaskawa.

Functions

To establish communication and control functions, the Motor Module must be connected to a Control Unit via the DRIVE-CLiQ interface. The Control Unit stores both open-loop and closed-loop control functions for the Motor Module.

Design

This specific model is designed to accommodate the connection of a single motor. However, there are also Double Motor Modules available that allow for the connection of two motors simultaneously.

The motor connection is facilitated through the X1 motor connection, and the X11 brake connection is provided for motor-holding brake applications. The appropriate threaded bolts and torque values for motor and PE connections are specified depending on the current rating of the Motor Module.

The X11 brake connector operates on a 24 V DC voltage and can handle a maximum load current of 2 A. It features a spring-loaded terminal and allows for a maximum cross-section of 2.5 mm². The brake connector is integrated into the Motor Module, eliminating the need for external installation of a brake protection circuit.

Features

It is essential to adhere to the voltage tolerances specified for motor-holding brakes (24 V ± 10%) to avoid malfunction and potential damage to the motor or brake. Compliance with these tolerances, along with the use of Siemens three-phase motors, MOTION-CONNECT power cables, and motor cable lengths within the recommended limit of 100 meters, ensures safe and reliable operation.

Connection

The Motor Module features an X12 fan connection interface for the integration of a sub-chassis fan. This interface is located on the underside of the module and allows for enhanced cooling capabilities in higher current models (132 A and 200 A).

The X21/X22 EP terminals are provided for temperature sensor connections. These terminals accommodate KTY 84-1C130/PTC/bimetallic temperature sensors with NC contacts. Additionally, the EP terminals support a +24 V supply voltage and enable pulse functions.

LED indicators on the Motor Module provide status information. The LED colors and blinking patterns indicate various states, such as readiness, communication, fault detection, firmware download, and component recognition.

To activate the recognition of components via LED, specific parameters can be configured as outlined in the SINAMICS S120/S150 List Manual.

Overall, the 6SL31201TE230AA3 Single Motor Module 30 A is a reliable and efficient power unit designed for driving motors in industrial applications. Its features and specifications make it a versatile and valuable component in the SINAMICS drive system lineup.
