Siemens 6SL3120-1TE23-0AC0

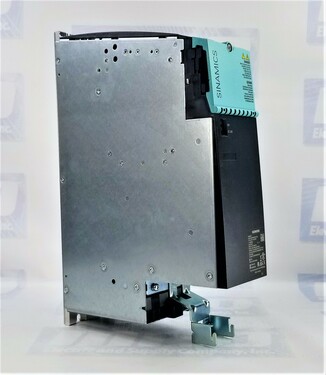

The Siemens product 6SL3120-1TE23-0AC0 is a motor module designed for various industrial applications. This data sheet provides detailed information about its features, specifications, and technical capabilities. These products are manufactured in Germany and are designed for Automotive, aerospace, power generation, and electronics usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as FANUC and Yaskawa.

Features of the Siemens 6SL3120-1TE23-0AC0

The motor module has a compact booksize construction with dimensions of 270.00 mm (10.63 in) in height, 100.00 mm (3.94 in) in depth, and 380.00 mm (14.96 in) in width. It is designed to have a degree of protection from IP20, making it suitable for installations in industrial environments. The net weight of the module is 7.9 kg (17.42 lb).

Specifications

With regards to its electrical specifications, the motor module operates with a DC link voltage range of 510 to 720 V and an output current of 40.0 A. The base load current IH is 25.5 A, and the rated current IN is 36.0 A. It requires a 24 V power supply for its electronics and has a maximum current demand of 56.0 A.

The general technical specifications of the motor module include a power loss rating, typical and maximum values, of 0.26 kW and 0.31 kW, respectively. The module operates with low sound pressure levels, ensuring a quieter working environment.

Design

The module is designed to withstand S6 duty, which corresponds to a 40% duty cycle. Its rated pulse frequency is 4.00 kHz. It can handle a maximum DC-link current of 30.0 A and a maximum DC-link capacitance of 705 µF. The motor module supports various control methods, including servo control with an output frequency of 650 Hz, vector control with an output frequency of 300 Hz, and V/f control with an output frequency of 600 Hz.

When it comes to ambient conditions, the module operates within a temperature range of 0 to 40 °C (32 to 104 °F) and can be installed at altitudes up to 1000 m (3281 ft) without derating. It utilizes internal air cooling during operation, and the cooling air requirement is 0.016 m³/s.

Connection

In terms of connections, the motor module supports shielded and unshielded motor cables. The maximum motor cable length is 100 m (328 ft) for shielded cables and 150 m (492 ft) for unshielded cables. It features a PE connection with an M5 screw and a conductor cross-section range of 2 to 6 mm² (16 to 10 AWG) for the motor end connector (X1).

Standards

Regarding compliance with standards, the 6SL3120-1TE23-0AC0 motor module meets various safety and certification requirements. It is classified as SIL 2 according to IEC 61508, PL d according to EN ISO 13849-1, and Category 3 according to EN ISO 13849-1. It is also compliant with CE and cULus standards.
