6SL3120-1TE23-0AA4

Siemens 6SL3120-1TE23-0AA4 Overview

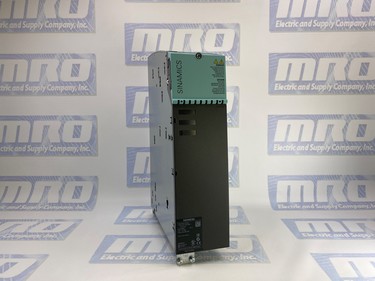

The SINAMICS module 6SL3120-1TE23-0AA4 is manufactured by Siemens and is a part of the SINAMICS S120 family of drives. It is a single motor module with an input of 600 VDC and an output of 400V. It has a booksize frame with internal air cooling.

Features

Bringing high efficiency to your system, the 6SL3120-1TE23-0AA4 is a motor module made for administering power for the motors that are connected. How is the power supplied? The power is supplied by the DC link of the drive unit and is a part of the larger system that is connected through a DRIVE-CLiQ to a control unit. Both open-loop and closed-loops functions are stored in the control unit. This unit can have one motor attached to it.

On top of the 6SL3120-1TE23-0AA4 is the X21 terminal and the X200-X202- DRIVE-CLiQ. Inside the protective cover are the electronics power supply and the DC link busbars. On the front of the module, you will find the LEDs and the rating plate as well as the protective ground conductor connection M45/3 Nm. The motor connections are on the underside of the module.

To ensure the brake is able to open and work properly, the voltage tolerances of the motor holding brake must comply with (24 V ± 10 %). Malfunctions such as the motor running against the brake may occur, destroying the motor. To avoid motor problems there are a few things you can do. First, make sure the DC power supply is set to 26 V. Next be sure to use a three-phase motor, attach MOTION-CONNECT power cables not exceeding 100m. The motor brake connector is X11. This should help ensure the safety of the motor. X12 is the fan connection on the underside of the motor module.

The proper installation for the motor module 6SL3120-1TE23-0AA4 is in the control cabinet. Using M6 screws, this module is designed to be fixed to the control cabinet panel or a mounting panel.

Advantages

The Siemens 6SL3120-1TE23-0AA4 is used in a broad scope of industrial applications solving many difficult drive tasks. All of the modules on the system are connected with the DRIVE-CLiQ, the digital interface between the SINAMICS units. What does this mean for you? Being on a standardized cable or connector reduces the variety of parts and cuts costs from shortages.

How to use a 6SL3120-1TE23-0AA4

This group of SINMAMICS drives is designed for engineering applications such as machine and plant engineering for tasks, such as; pump and fan applications in the process industry to high-precision servo drives in the manufacturing industry. This drive family can handle tasks on presses, extruders, elevators, and transport systems. The line drive is used in textiles, plastic film, and paper machines and can be found in rolling mill plants.

The Siemens Sinamics module 6SL3120-1TE23-0AA4 comes with a two-year warranty.

Product Description

The 6SL3120-1TE23-0AA4 is a Booksize Single Motor Module, 600VDC/400VAC 30A that is manufactured by Siemens. These products are manufactured in Germany and are designed for Automotive, aerospace, power generation, and electronics usage. All of the products come with a 2 year warranty from MRO Electric. We also carry DC Drives from other manufacturers such as FANUC and Yaskawa.

Related Products

Check out the rest of our Siemens product line. Whether it's using our online instant quote feature, giving us a call at (800) 691-8511, or sending us an email at sales@mroelectric.com, we strive for customer satisfaction first. This means lower prices and better service for you. For more products like 6SL3120-1TE23-0AA4, take a look at more from our DC Drives line. If your current unit has gone bad, take advantage of our Core Exchange program for the most inexpensive route. You can learn more about this program on our FAQ page here. We offer a repair service on all of our 6SL3120-1TE23-0AA4 products that keep your downtime to a minimum. To stay up to date on manufacturer news, as well as access any of our datasheets, manuals, or other documentation, we suggest you take a look at our blog.
