6SL3224-0BE35-5UA0

2-year Warranty

Same Day Shipping

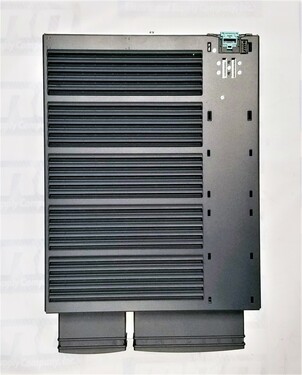

Siemens 6SL3224-0BE35-5UA0

Rated 5/5 on 1 review

Rate this product


MANUFACTURER: Siemens
DESCRIPTION: G120 Inverter Power Modules noLine Filter - 380-480V AC, 75kW, 100HP, 145A
PRODUCT TYPE INFO: SINAMICS


1 in stock

Ships Today


2 Year warranty

Part Number6SL3224-0BE35-5UA0
ManufacturerSiemens
TypeAC Drives
Model #6SL32240BE355UA0
Warranty2 Year
Output frequency for V/f control0 ... 550 Hz
Number of phases3 AC
Line voltage380 ... 480 V ±10 %
Line frequency47 ... 63 Hz
Rated current with line reactor151.00 A
Rated current without line reactor168.00 A
Number of phases3 AC
Rated voltage400 V
Rated power (LO)75.00 kW / 100.00 hp
Rated power (HO)55.00 kW / 75.00 hp
Rated current (LO)145.00 A
Rated current (HO)110.00 A
Max. output current220.00 A
Pulse frequency4 kHz
Output frequency for vector control0 ... 200 Hz

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 6SL3224-0BE35-5UA0 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 6SL3224-0BE35-5UA0 we also repair a wide range of other Siemens products, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 6SL3224-0BE35-5UA0, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 110lbs

Want it shipped today?

  • Order within the next 10 hours and 39 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 6SL3224-0BE35-5UA0 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Siemens 6SL3224-0BE35-5UA0 Overview

Part Number 6SL3224-0BE35-5UA0 is an AC drive manufactured by Siemens. It falls under the category of AC drives and is designed to provide control and power management for various industrial applications. With a warranty period of 2 years, this drive offers reliability and performance assurance. These products are manufactured in Germany and are designed for Automotive, aerospace, power generation, and electronics usage. They come with a 2-year warranty from MRO Electric. We also carry AC Drives from other manufacturers such as FANUC and Yaskawa.

Features

The AC drive is capable of controlling the output frequency in V/f (Voltage to frequency) control mode within a range of 0 to 550 Hz. It operates on a three-phase AC power supply, accommodating line voltages ranging from 380 to 480 V with a tolerance of ±10%. The line frequency supported by the drive is 47 to 63 Hz, enabling compatibility with a wide range of power systems.

The rated current of the drive is specified for two scenarios: with and without a line reactor. When a line reactor is used, the rated current is 151.00 A, while without a line reactor, it is slightly higher at 168.00 A. This distinction allows for flexibility in the drive's application based on the specific power infrastructure.

Rating

The drive supports a three-phase AC system with a rated voltage of 400 V. It is capable of delivering a rated power of 75.00 kW (100.00 hp) in the Low Output (LO) mode and 55.00 kW (75.00 hp) in the High Output (HO) mode. The rated current in the LO mode is 145.00 A, whereas, in the HO mode, it is 110.00 A. These power and current ratings make the drive suitable for a wide range of industrial motor control applications.

The maximum output current that the drive can handle is specified as 220.00 A. This rating indicates the drive's capability to deliver high current levels when required, ensuring efficient operation of connected motors under demanding conditions.

The pulse frequency of the drive is set at 4 kHz, which indicates the speed and accuracy at which the drive can generate control signals for motor operation. This high pulse frequency allows for precise control and smooth motor performance, contributing to overall system efficiency.

Control

In addition to V/f control, the drive also supports vector control mode, which allows for more advanced motor control capabilities. In the vector control mode, the output frequency range is specified as 0 to 200 Hz. This mode enables precise control of motor speed, torque, and position, making it suitable for applications that require high-precision control.

Siemens, as the manufacturer of this AC drive, is known for its expertise in industrial automation and control systems. The 6SL3224-0BE35-5UA0 demonstrates Siemens' commitment to delivering high-quality, reliable products for industrial applications.

With its wide range of voltage and frequency compatibility, robust power ratings, and support for advanced control modes, the 6SL3224-0BE35-5UA0 AC drive is a versatile solution for motor control in various industrial settings. Its capabilities enable efficient and precise operation of motors, contributing to enhanced productivity and energy savings in industrial processes.
