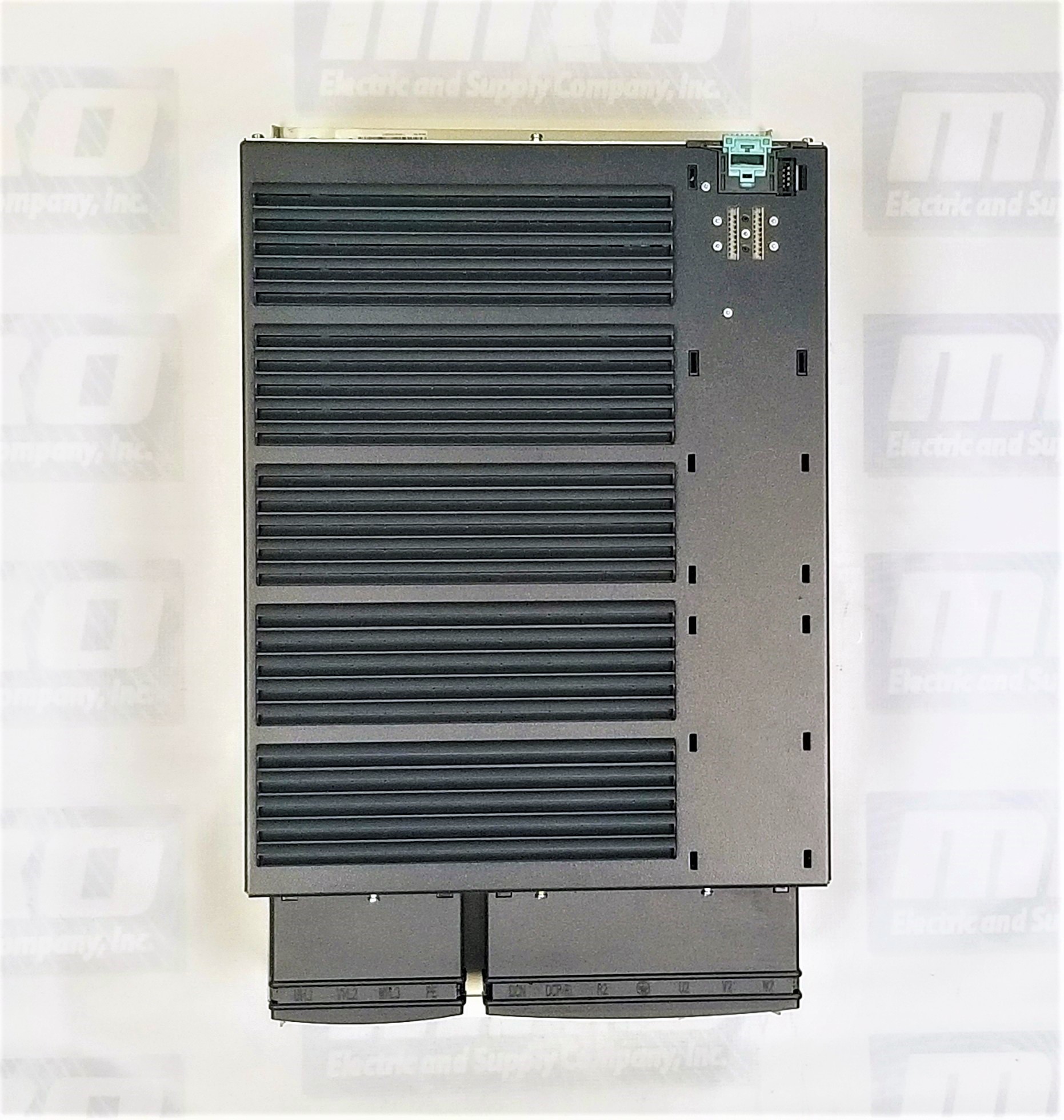

SINAMICS G120 STANDARD INVERTER POWER MODULES W/O LINE FILTER, 380-480V AC, 55KW, 75HP, 110A
Part Number | 6SL3224-0BE34-5UA0 |
Manufacturer | Siemens |
Type | AC Drives |
Model # | 6SL32240BE345UA0 |
Warranty | 2 Year |
Output frequency for V/f control | 0 ... 550 Hz |
Number of phases | 3 AC |
Line voltage | 380 ... 480 V ±10 % |
Line frequency | 47 ... 63 Hz |
Rated current with line reactor | 115.00 A |
Rated current without line reactor | 129.00 A |
Number of phases | 3 AC |
Rated voltage | 400 V |
Rated power (LO) | 55.00 kW / 75.00 hp |
Rated power (HO) | 45.00 kW / 60.00 hp |
Rated current (LO) | 110.00 A |
Rated current (HO) | 90.00 A |
Max. output current | 180.00 A |
Pulse frequency | 4 kHz |
Output frequency for vector control | 0 ... 200 Hz |
MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.
MRO can restore your failed 6SL3224-0BE34-5UA0 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.
Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.
Our technicians have vast experience with most manufacturers and models. In addition to this 6SL3224-0BE34-5UA0 we also repair a wide range of other Siemens products, so if you don’t see the model you need, please contact us.
If you are interested in getting credit for your faulty 6SL3224-0BE34-5UA0, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.
Want it shipped today?
Ask about exchanging your faulty 6SL3224-0BE34-5UA0 for credit when ordering from MRO Electric
Overview: Siemens presents the 6SL3224-0BE34-5UA0, a cutting-edge AC Drive engineered to deliver unparalleled performance and efficiency in industrial applications. This meticulously crafted device exemplifies Siemens' commitment to innovation and reliability, offering a comprehensive solution for precise motor control.
The 6SL3224-0BE34-5UA0 belongs to the AC Drives category and is a pinnacle of Siemens' technological prowess. Its model number, 6SL32240BE345UA0, signifies a new era in motor control, setting benchmarks in efficiency and functionality.
Equipped with V/f control, this drive boasts an impressive output frequency range of 0 to 550 Hz, ensuring precise motor speed regulation across various applications. With three AC phases, it provides robust and stable power delivery, meeting the demands of industrial machinery and equipment.
Operating within a line voltage range of 380 to 480 V ±10% and a line frequency range of 47 to 63 Hz, this drive offers versatility and adaptability, easily accommodating diverse power supply conditions.
With a rated power of 55.00 kW (75.00 hp) in the low overload (LO) range and 45.00 kW (60.00 hp) in the high overload (HO) range, this drive delivers exceptional performance in demanding industrial environments. Rated currents 110.00 A (LO) and 90.00 A (HO) ensure reliable operation under varying load conditions.
The drive is rated with and without a line reactor, offering flexibility in installation and configuration. With a rated current of 115.00 A with a line reactor and 129.00 A without, it adapts seamlessly to different power distribution setups.
Featuring a pulse frequency of 4 kHz and an output frequency range of 0 to 200 Hz for vector control, this drive ensures precise motor control and smooth operation, even in complex industrial processes.
The drive, capable of delivering a maximum output current of 180.00 A, excels at handling high-power applications efficiently, ensuring optimal performance and efficiency under demanding operating conditions.
Q: What is the primary function of the Siemens 6SL3224-0BE34-5UA0 AC Drive? A: The 6SL3224-0BE34-5UA0 AC Drive is designed to control the speed and torque of electric motors in industrial applications. It offers precise motor control, allowing for efficient operation and optimization of machinery and equipment.
Q: What output frequency range does the 6SL3224-0BE34-5UA0 AC Drive support? A: The AC Drive supports an output frequency range of 0 to 550 Hz for V/f control and 0 to 200 Hz for vector control, providing flexibility in motor speed regulation across various applications.
Q: What are the input voltage and frequency requirements of the 6SL3224-0BE34-5UA0 AC Drive? A: The AC Drive operates within a line voltage range of 380 to 480 V with a tolerance of ±10% and a line frequency range of 47 to 63 Hz, ensuring compatibility with different power supply conditions.
Q: What is the rated power and current of the 6SL3224-0BE34-5UA0 AC Drive? A: The AC Drive has a rated power of 55.00 kW (75.00 hp) in the low overload range and 45.00 kW (60.00 hp) in the high overload range. It also has rated currents 110.00 A (LO) and 90.00 A (HO), ensuring reliable operation under varying load conditions.
Q: Does the 6SL3224-0BE34-5UA0 AC Drive support line reactors? A: The AC Drive is rated for use with and without line reactors. Its rated current is 115.00 A with a line reactor and 129.00 A without, providing flexibility in installation and configuration.
Q: What is the pulse frequency of the 6SL3224-0BE34-5UA0 AC Drive? A: The AC Drive features a pulse frequency of 4 kHz, enabling precise motor control and smooth operation, even in complex industrial processes.
Q: What is the maximum output current supported by the 6SL3224-0BE34-5UA0 AC Drive? A: The AC Drive is capable of delivering a maximum output current of 180.00 A, making it suitable for handling high-power applications with ease.
Q: What are the applications of the 6SL3224-0BE34-5UA0 AC Drive? A: The AC Drive is commonly used in various industrial applications, including manufacturing machinery, conveyor systems, pumps, fans, and HVAC systems, where precise motor control is essential for efficient operation and productivity.
