6SL3420-2TE15-0AA1

2-year Warranty

Same Day Shipping

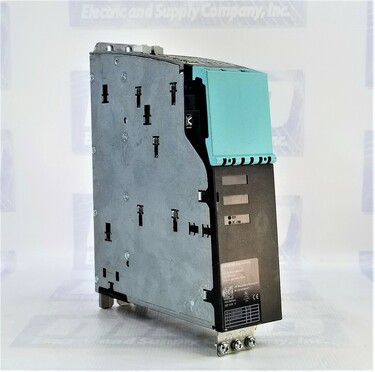

Siemens 6SL3420-2TE15-0AA1

Rated 5/5 on 1 review

Rate this product


MANUFACTURER: Siemens
DESCRIPTION: Booksize Compact Format Double Motor Module, 510-720V DC
PRODUCT TYPE INFO: SINAMICS S120 Drive System


1 in stock

Ships Today


Free Shipping

2 Year warranty

Part Number6SL3420-2TE15-0AA1
ManufacturerSiemens
TypeAC Motors
Model #6SL34202TE150AA1
Warranty2 Year
RangeSINAMICS 120 S
CategoryDouble motor module
InputDC 600V
Output3AC 400V
Current5A/5A
Frame sizeBooksize
CoolingInternal air
DC link voltageDC 510 ... 720 V
Power supplyDC 24 V -15 % / +20 %
Current max1.00 A
DC-link current 12.0 A
Installation altitude1000 m (3281 ft)
Ambient temp32 ... 104 °F
Connectionsconnector (X1, X2) with Screw-type
StandardsCE, cURus
PE connectionM5 screw
SafetySIL 2 acc. to IEC 61508, PL d acc. to EN ISO 13849-1, Category 3 acc. to EN ISO 13849-1

Our Repair Services

MRO Electric repairs CNCs, PLCs, Servo/Spindle Drives, Motors, Amplifiers, VFDs, HMIs, and more, most of which can be repaired in only 3-5 days.

Repair Benefits

MRO can restore your failed 6SL3420-2TE15-0AA1 to remanufactured condition and save you up to 75% compared to buying new. We offer standard repair pricing to ensure you the best value for your repair.

Our certified technicians use rigorous testing procedures to ensure your parts are restored to fully functioning condition. Our team proudly stands behind all repairs by providing a minimum 2-year warranty.

Our technicians have vast experience with most manufacturers and models. In addition to this 6SL3420-2TE15-0AA1 we also repair a wide range of other Siemens products, so if you don’t see the model you need, please contact us.

Core Exchange

If you are interested in getting credit for your faulty 6SL3420-2TE15-0AA1, just let us know, and we can issue you an RMA to send it in as an exchange. Our exchange program provides you with savings and keeps us stocked for the next time you need anything.

  • Shipping Weight : 8lbs

Want it shipped today?

  • Order within the next 14 hours and 16 minutes.
  • If you order between 4pm and 6pm EST, you will be charged a small rush fee.

Ask about exchanging your faulty 6SL3420-2TE15-0AA1 for credit when ordering from MRO Electric

MRO Electric provides a 2-year warranty on every item we sell and repair. We stand behind all of our products and guarantee them for the full 2 years. If there is an issue with any of our products within the warranty period, we will evaluate the unit and repair or replace it under warranty.

Siemens 6SL3420-2TE15-0AA1 Overview

6SL3420-2TE15-0AA1 Motor Module Data Sheet

Introduction:

The 6SL3420-2TE15-0AA1 Motor Module stands as a pinnacle of technological excellence, offering a comprehensive set of features that redefine precision and efficiency in the realm of motor control. This data sheet provides an in-depth overview of the module's specifications, ensuring clarity for users seeking optimal performance in their industrial applications.

MLFB-Ordering Data:

The MLFB-Ordering data, represented by the part number 6SL3420-2TE15-0AA1, serves as a unique identifier for this motor module. It encompasses critical information such as the consignment number, item number, offer number, order number, project details, and client order number, streamlining the procurement process for users.

Rated Data:

Output Current:

The module boasts a robust output current handling capacity, with 2 x 6.0 A for 24 V busbars and 2 x 4.3 A for DC link busbars. This ensures reliable and efficient motor control across a variety of industrial setups.

DC Link Voltage:

Operating within a DC link voltage range of 510 to 720 V, the module accommodates diverse power requirements, providing flexibility for applications with varying voltage specifications.

Base Load Current IH:

With a base load current of 12.0 A, the module establishes a stable foundation for motor operations, contributing to the overall reliability of the system.

Rated Value IN:

The rated value of 2 x 15.0 A further underscores the module's capability to handle higher current demands, making it suitable for applications with increased power requirements.

Electronics Power Supply:

The module's electronics power supply of 2 x 2.3 kW ensures efficient and consistent power delivery, facilitating precision control over the connected motor.

DC-Link Current Id:

The DC-link current, based on IH, is specified at 100 A, emphasizing the module's capacity to handle substantial current demands in industrial settings.

Maximum Pulse Frequency:

With a rated pulse frequency of 8.00 kHz, the module excels in applications demanding high-speed and precise motor control.

Ambient Conditions:

Installation Altitude:

The module's operational altitude spans up to 1000 m (3281 ft), ensuring adaptability to diverse industrial environments.

Cooling:

The module features internal air cooling, operating within an ambient temperature range of 0 to 40 °C (32 to 104 °F). It efficiently dissipates heat, maintaining optimal performance during operation.

Cooling Air Requirement:

The cooling air requirement is specified at 0.008 m³/s, ensuring effective heat dissipation for prolonged and reliable operation.

Mechanical Data:

Dimensions:

The compact booksize construction of the module measures 226.00 mm (8.90 in) in height, 75.00 mm (2.95 in) in depth, and 270.00 mm (10.63 in) in width, with a net weight of 3.4 kg (7.50 lb).

Degree of Protection:

The module features a robust degree of protection with an IP20 rating, ensuring resilience in industrial environments.

Compliance with Standards:

The 6SL3420-2TE15-0AA1 adheres to safety standards, including SIL 2 acc. to IEC 61508, PL d acc. to EN ISO 13849-1, and Category 3 acc. to EN ISO 13849-1. It is also CE and CURUS certified, ensuring compliance with international safety regulations.
